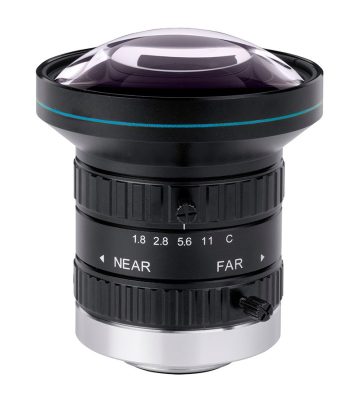

EN8MP Series is a series of fixed focal length lenses that has a very compact design for a high-resolution 1” lens. Its anti-shock design responds to current market needs in factory automation.
While the accuracy request increased in the industry, the resolution and the size of the sensors are increasing, a correspondent high-resolution lens for larger format is needed in order to accomplish much more complex vision tasks. Together with ITALA cameras, the EN8MP series can resolve high-resolution inspections such as hairline defects on reflective material, printing inspection and also collaborative robot guide…etc
Opto Engineering® has wide experience in different industries, our global tech support team would support you on provide the most suitable machine vision components based on the customer’s need including where the high resolution requires.
| # | Part Number | Focal Length (mm) | Image Circle Dia (mm) | Max Sensor Size | Angle of View (deg) | 1" FOV diagonal (mm) | 1" FOV (mm) | Working Distance Range (m) | f/N | Distortion on 1" (%) | Mount | Filter Thread (mm) | Outer Diameter (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | EN8MPL0818 | 8 | 16.0 | 1″ | 90.1 | 478.46 x 378.08 | 12.44 x 9.83 | 0.3 - inf | 1.8 - close | 4.12 | C | - | 56.8 | 67.0 |
| 2 | EN8MPL1220 | 12 | 16.0 | 1″ | 69.6 | 115.29 x 91.10 | 12.44 x 9.83 | 0.08 - inf | 2.0 - 22 | 4.10 | C | M35.5 x 0.5 | 39.6 | 48.9 |
| 3 | EN8MPL1620 | 16 | 16.0 | 1″ | 53.7 | 84.74 x 66.96 | 12.44 x 9.83 | 0.1 - inf | 2.0 - 22 | 2.20 | C | M34 x 0.5 | 37.4 | 45.9 |
| 4 | EN8MPL2518 | 25 | 16.0 | 1″ | 36.0 | 70.32 x 55.57 | 12.44 x 9.83 | 0.15 - inf | 1.8 - close | 1.53 | C | M30.5 x 0.5 | 33.5 | 36.5 |
| 5 | EN8MPL3520 | 35 | 16.0 | 1″ | 25.7 | 62.76 x 49.60 | 12.44 x 9.83 | 0.2 - inf | 2.0 - close | 0.33 | C | M30.5 x 0.5 | 35.7 | 35.7 |
| 6 | EN8MPL5020 | 50 | 16.0 | 1″ | 18.2 | 56.06 x 44.30 | 12.44 x 9.83 | 0.25 - inf | 2.0 - 22 | 0.01 | C | M37 x 0.5 | 42.4 | 48.2 |
Citrine’s Key Features:
Sapphire’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Very fast f/1.4 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:6.7 scale
Features special screws to fix focus and aperture settings even in rough situations
