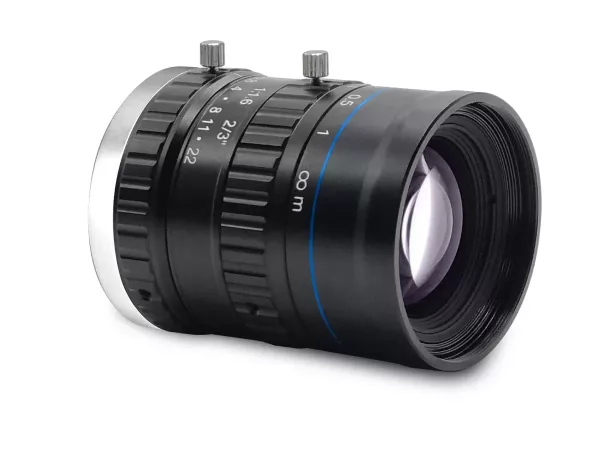

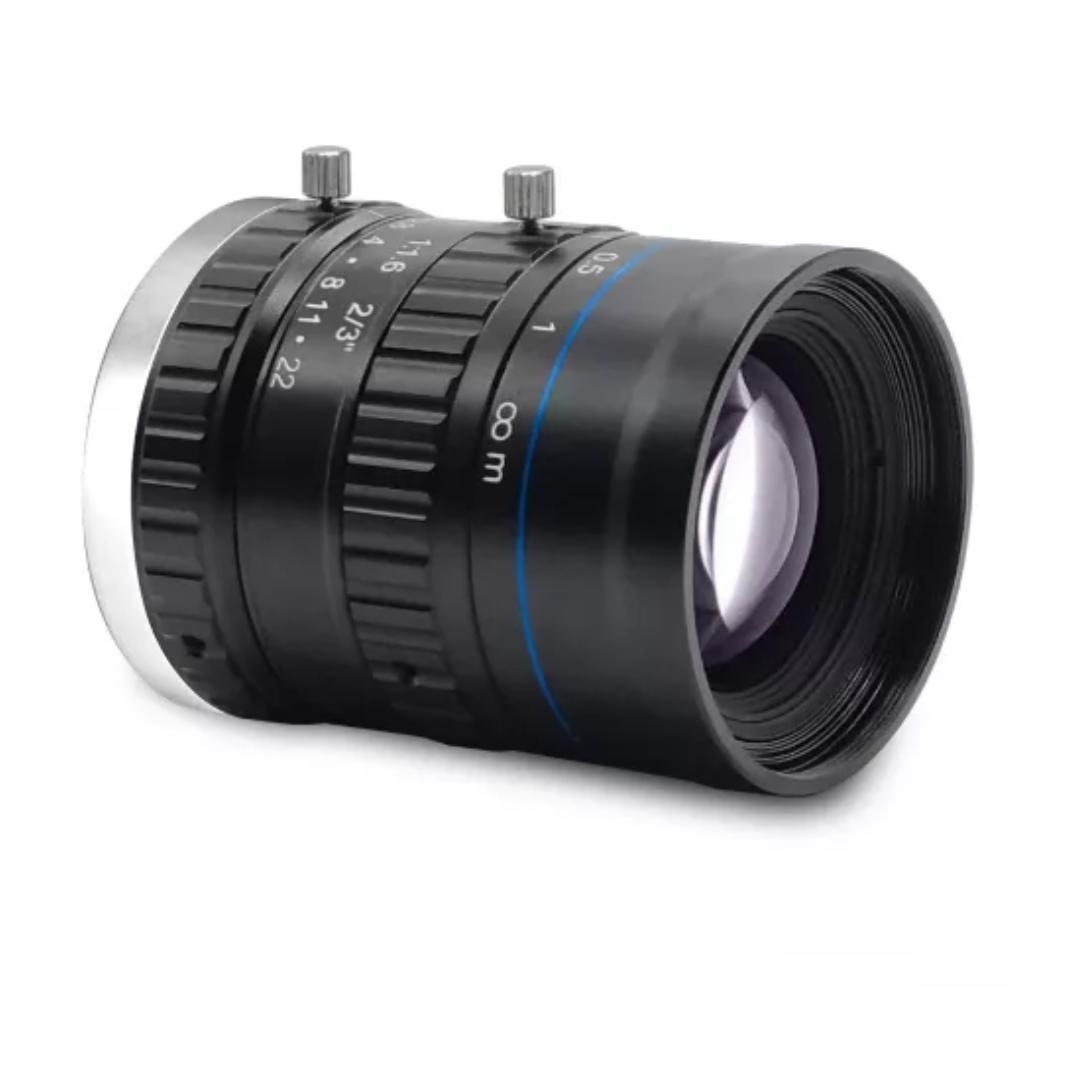

EN5MP series is a series of high resolution fixed focal length lenses designed for use in machine vision applications. A wide range of focal lengths provides more choices of field of view and working distance for many different system configurations.
Together with high resolution cameras and proper illumination, EN5MP lenses allow you to design high resolution vision systems to solve complex or critical tasks. E.g. OCR/OCV, robot guidance…etc. and for the inspection of critical samples like connectors, electronic components, vials…etc.
Opto Engineering® can save you time and money by providing bundle solutions including a suitable lens, camera and illuminator, optimized for your applications requirements and type of samples.
| # | Part number | Focal length (mm) | Image circle ⌀ (mm) | Max sensor size | Angle of view 2/3" | Object field of view 2/3" | Working distance (m) | ƒ/N | Distortion 2/3" (%) | Mount | Filter thread (mm) | Outer ⌀ (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| diagonal (deg) | H × V (mm) | ||||||||||||
| 1 | EN5MP0816 | 8 | 11.0 | 2/3″ | 66.8 | 118.38 × 98.75 | 0.1 – inf | 1.6 – 22 | 0.73 | C | M40.5 × 0.5 | 45.0 | 53.0 |
| 2 | EN5MP1216 | 12 | 11.0 | 2/3″ | 48.6 | 79.44 × 66.26 | 0.1 – inf | 1.6 – 22 | 0.35 | C | M37.5 × 0.5 | 43.3 | 58.5 |
| 3 | EN5MP1616 | 16 | 11.0 | 2/3″ | 38.0 | 112.29 × 93.66 | 0.2 – inf | 1.6 – 22 | 0.07 | C | M37.5 × 0.5 | 43.3 | 63.3 |
| 4 | EN5MP2514 | 25 | 11.0 | 2/3″ | 24.8 | 67.19 × 56.05 | 0.2 – inf | 1.4 – 22 | 0.19 | C | M37.5 × 0.5 | 43.3 | 54.5 |
| 5 | EN5MP3514 | 35 | 11.0 | 2/3″ | 17.9 | 69.67 × 58.11 | 0.3 – inf | 1.4 – 22 | 0.06 | C | M37.5 × 0.5 | 43.3 | 56.8 |
| 6 | EN5MP5018 | 50 | 11.0 | 2/3″ | 12.6 | 64.64 × 53.92 | 0.4 – inf | 1.8 – 22 | 0.03 | C | M37.5 × 0.5 | 43.3 | 58.5 |
| 7 | EN5MP7520 | 75 | 11.0 | 2/3″ | 8.4 | 95.18 × 79.40 | 0.9 – inf | 2.0 – 22 | 0.02 | C | M40.5 × 0.5 | 45.0 | 71.7 |
