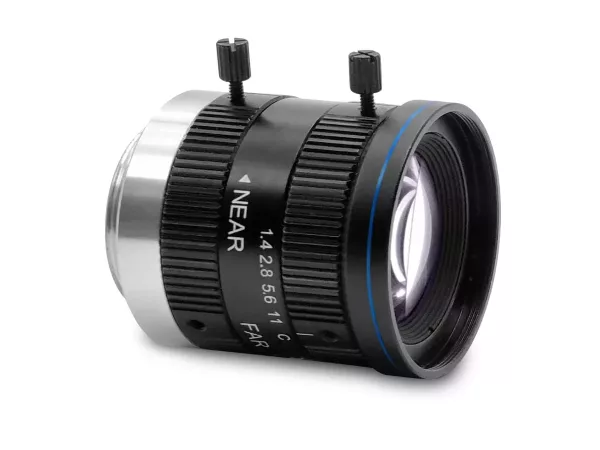

EN2MP series is a series of fixed focal length lenses designed for use in factory automation. Its high quality to price ratio allows simple vision tasks to be achieved easily and efficiently. The lenses are designed to withstand harsh working environments.
The lenses are suitable for a wide range of vision tasks. E.g. Pattern matching, positioning, barcode recognition, packaging inspection, presence/absence, robot guide, pick and place, orientation check, 3D measurement…etc.
| Part number | Focal length (mm) | Image circle ⌀ (mm) | Max sensor size | Angle of view | Object field of view | Working distance range (m) | ƒ/N | Distortion 1/2" (%) | Distortion 2/3" (%) | Mount | Filter thread (mm) | Outer ⌀ (mm) | Length (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/1.8" | 2/3" | 1/1.8" (mm) | 2/3" (mm) | ||||||||||||||||
| diagonal (deg) | diagonal (deg) | diagonal (deg) | diagonal (deg) | H × V | H × V | H × V | H × V | ||||||||||||
| EN2MP0324 | 3.5 | 9.0 | 1/1.8″ | 104.5 | — | — | — | 323.64 × 242.27 | — | — | — | 0.15 – inf | 2.4 – close | 4.10 | — | C | M40.5 × 0.5 | 42.0 | 37.7 |
| EN2MP0814 | 8 | 11.0 | 2/3″ | 58.7 | 68.6 | 100.28 × 75.07 | 119.72 × 99.86 | — | — | — | — | 0.1 – inf | 1.4 – close | 1.93 | 2.81 | C | M34 × 0.5 | 36.0 | 35.5 |
| EN2MP1214 | 12 | 11.0 | 2/3″ | 41.1 | 49.0 | 100.28 × 75.07 | 119.72 × 99.86 | — | — | — | — | 0.15 – inf | 1.4 – close | 1.25 | 1.80 | C | M30.5 × 0.5 | 34.0 | 31.8 |
| EN2MP1614 | 16 | 11.0 | 2/3″ | 31.4 | 37.6 | 136.92 × 102.50 | 163.46 × 136.35 | — | — | — | — | 0.3 – inf | 1.4 – close | 0.65 | 1.00 | C | M30.5 × 0.5 | 34.0 | 31.6 |
| EN2MP2514 | 25 | 11.0 | 2/3″ | 20.4 | 24.7 | 71.20 × 53.30 | 85.00 × 70.90 | — | — | — | — | 0.25 – inf | 1.4 – close | 0.10 | 0.27 | C | M30.5 × 0.5 | 34.0 | 35.6 |
| EN2MP3514 | 35 | 11.0 | 2/3″ | 14.7 | 17.7 | 56.51 × 42.30 | 67.46 × 56.27 | — | — | — | — | 0.3 – inf | 1.4 – close | 0.17 | 0.33 | C | M30.5 × 0.5 | 35.4 | 33.8 |
| EN2MP5018 | 50 | 11.0 | 2/3″ | 10.3 | 12.5 | 65.32 × 48.90 | 77.98 × 65.05 | — | — | — | — | 0.5 – inf | 1.8 – close | 0.10 | 0.22 | C | M30.5 × 0.5 | 35.6 | 39.4 |
| EN2MP7528 | 75 | 11.0 | 2/3″ | 6.9 | 8.4 | 91.28 × 68.33 | 108.97 × 90.90 | — | — | — | — | 1.1 – inf | 2.8 – close | 0.20 | 0.36 | C | M30.5 × 0.5 | 38.0 | 49.4 |
Thulite’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Very fast f/1.4 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of
24×36 mm or 41 mm line sensors
High optical performance both at infinity
and at 1:4.6 scale
Features special screws to fix focus and aperture
settings even in rough situations
