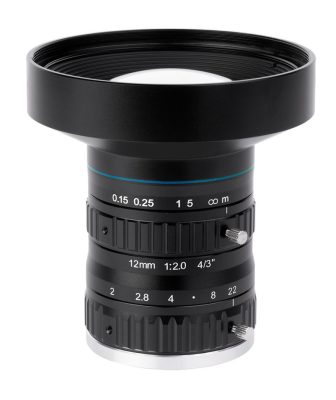

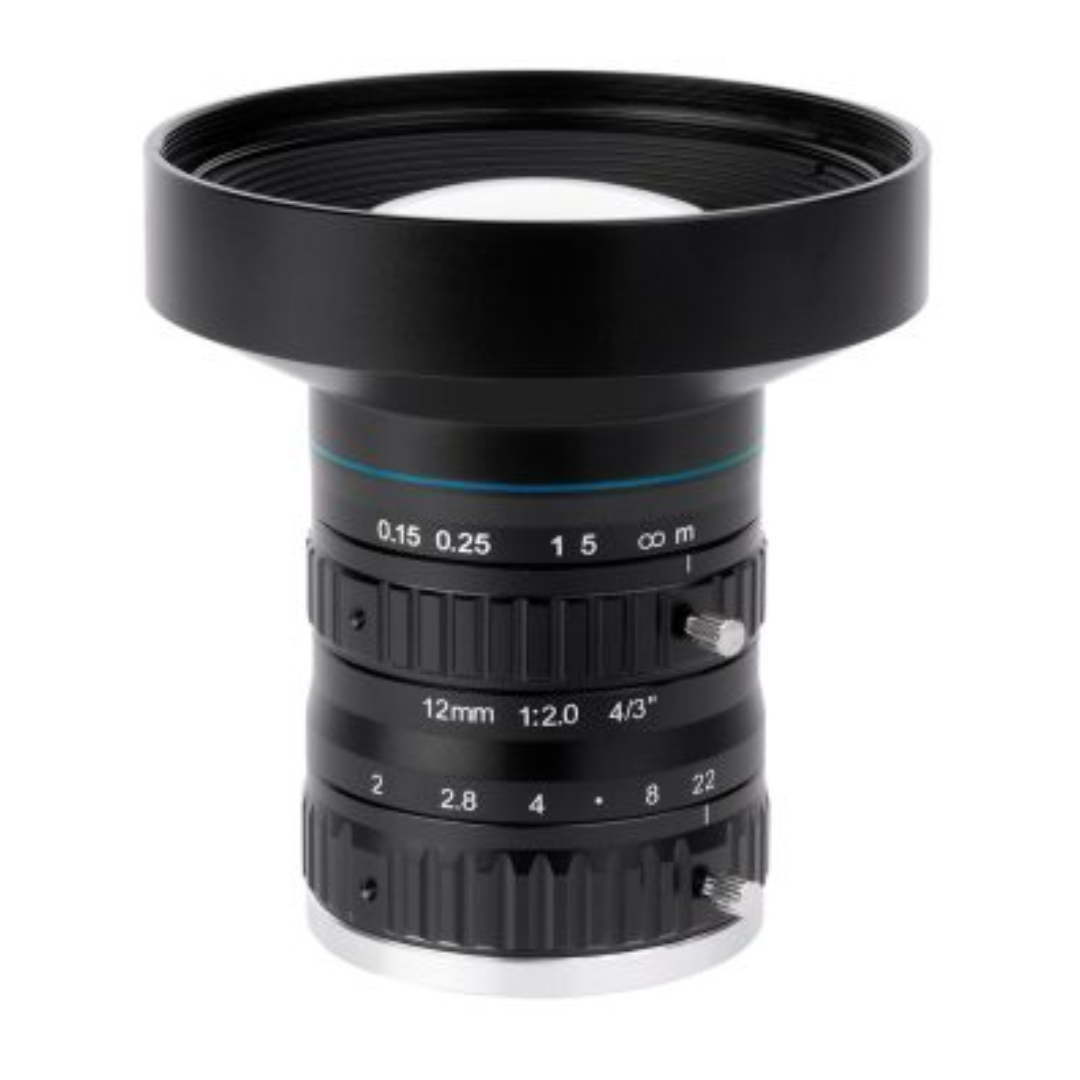

EN10MP Series is a series of powerful fixed focal length lenses designed for the high sensitivity and precise high-speed imaging of the new 1.1″ and 4/3″ Sony Pregius sensors.
The ever-increasing complexity of vision tasks, requires lenses with extremely competitive performance.
The EN10MP series are designed to meet the high accuracy coupled with large format for high resolution sensors.
Opto Engineering® has wide experience in different industries, our global sales team would support you on provide the most suitable machine vision components based on your needs.
| # | Part Number | Focal Length (mm) | Image Circle Dia (mm) | Max Sensor Size | Angle of View (deg) | 4/3" FOV diagonal (mm) | 4/3" FOV (mm) | Working Distance Range (m) | f/N | Distortion on 4/3" (%) | Mount | Filter Thread (mm) | Outer Diameter (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | EN10MPL1220 | 12 | 23.0 | 4/3″ | 89.0 | 273.55 x 153.32 | 18.93 x 10.61 | 0.15 - inf | 2.0 - 22 | 2.4 | C | M77 x 0.75 | 80.0 | 84.4 |
| 2 | EN10MPL1620 | 16 | 23.0 | 4/3″ | 72.9 | 143.41 x 80.38 | 18.93 x 10.61 | 0.1 - inf | 2.0 - 22 | 2.81 | C | M58 x 0.75 | 60.0 | 85.9 |
| 3 | EN10MPL2520 | 25 | 23.0 | 4/3″ | 49.7 | 127.99 x 71.74 | 18.93 x 10.61 | 0.15 - inf | 2.0 - 22 | 0.66 | C | M46 x 0.75 | 48.0 | 82.7 |
| 4 | EN10MPL3520 | 35 | 23.0 | 4/3″ | 36.6 | 98.90 x 55.43 | 18.93 x 10.61 | 0.2 - inf | 2.0 - 22 | 0.56 | C | M40.5 x 0.5 | 44.6 - 54.9 | - |
| 5 | EN10MPL5020 | 50 | 23.0 | 4/3″ | 25.9 | 97.48 x 54.63 | 18.93 x 10.61 | 0.3 - inf | 2.0 - 22 | 0.14 | C | M40.5 x 0.5 | 44.6 | 53.7 |
Cuprite’s Key Features:
Emerald’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consits of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
• f/2.8 aperture
• Precise manual focusing
• Robust full-metal construction
• Continuous aperture setting or click stop
• For industrial cameras up to sensor sizes of
24×36 mm or 41mm line sensors
• Wide angle lens with highest opticus and aperture
settings even in rough situations
• High contrast over the entire image field
Charoite’s Key Features:
