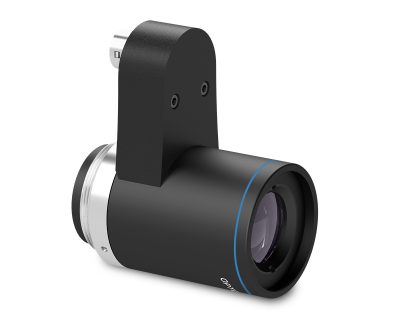

The EL5MP series features 5 MP fixed focal length optics for sensors up to 2/3″ with integrated Optotune liquid lens technology. The high-resolution optical design combined with the liquid lens allows autofocus within milliseconds and acquisition of high-quality images.
These optics are ideal for high-speed inspections at different working distances typical, for example, of the food and beverage sector as well as the pharmaceutical and cosmetic industries. Moreover, EL5MP optics are ideal for guiding robotic arms used for applications such as pick-and-place and bin-picking.
The EL5MP series guarantees high repeatability and focus stability as each lens is calibrated in temperature using a specific algorithm developed ad hoc.
| # | Part Number | Focal Length (mm) | Max Sensor Size | 1/1.8" AOV (deg) | 2/3" AOV (deg) | 1/1.8" FOV (mm) | 2/3" FOV (mm) | Working Distance Range (mm) | f/N | Distortion (%) | Mount | Filter Thread (mm) | Front Diameter (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | EL5MP0656 | 6 | 1/1.8″ | 74.5 | - | 84.88 x 63.45 | - | 60 - inf | 5.6 | < 4.0 | C | M30.5 x 0.5 | 33.0 | 40.9 |
| 2 | EL5MP0856 | 8 | 2/3″ | 58.9 | 70.0 | 82.91 x 61.98 | 98.84 x 82.44 | 80 - inf | 5.6 | < 2.5 | C | M30.5 x 0.5 | 33.0 | 42.3 |
| 3 | EL5MP1256 | 12 | 2/3″ | 41.2 | 50.0 | 67.90 x 50.76 | 80.95 x 67.52 | 100 - inf | 5.6 | < 1.5 | C | M27 x 0.5 | 30.0 | 37.4 |
| 4 | EL5MP1656 | 16 | 2/3″ | 31.1 | 38.0 | 76.67 x 57.31 | 91.40 x 76.24 | 160 - inf | 5.6 | < 0.6 | C | M27 x 0.5 | 30.0 | 41.2 |
| 5 | EL5MP2556 | 25 | 2/3″ | 19.5 | 24.0 | 61.47 x 45.95 | 73.28 x 61.12 | 200 - inf | 5.6 | < 0.2 | C | M27 x 0.5 | 30.0 | 21.0 |
Emerald’s Key Features:
Turquoise’s Key Features:
Tourmaline’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consits of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
• 100° angular field with highest optical
performance
• Precise manual focusing
• Robust full-metal construction
• Continuous aperture setting or click stop
• For industrial cameras up to sensor sizes of
24×36 mm or 41mm line sensors
• Features special screws to fix focus and aperture
settings even in rough situations
• High contrast over the entire image field
