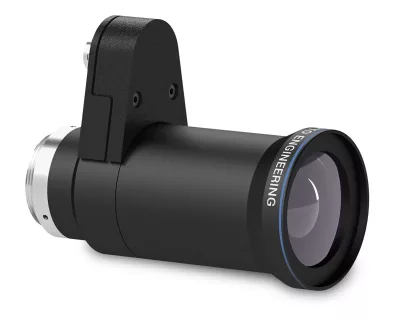

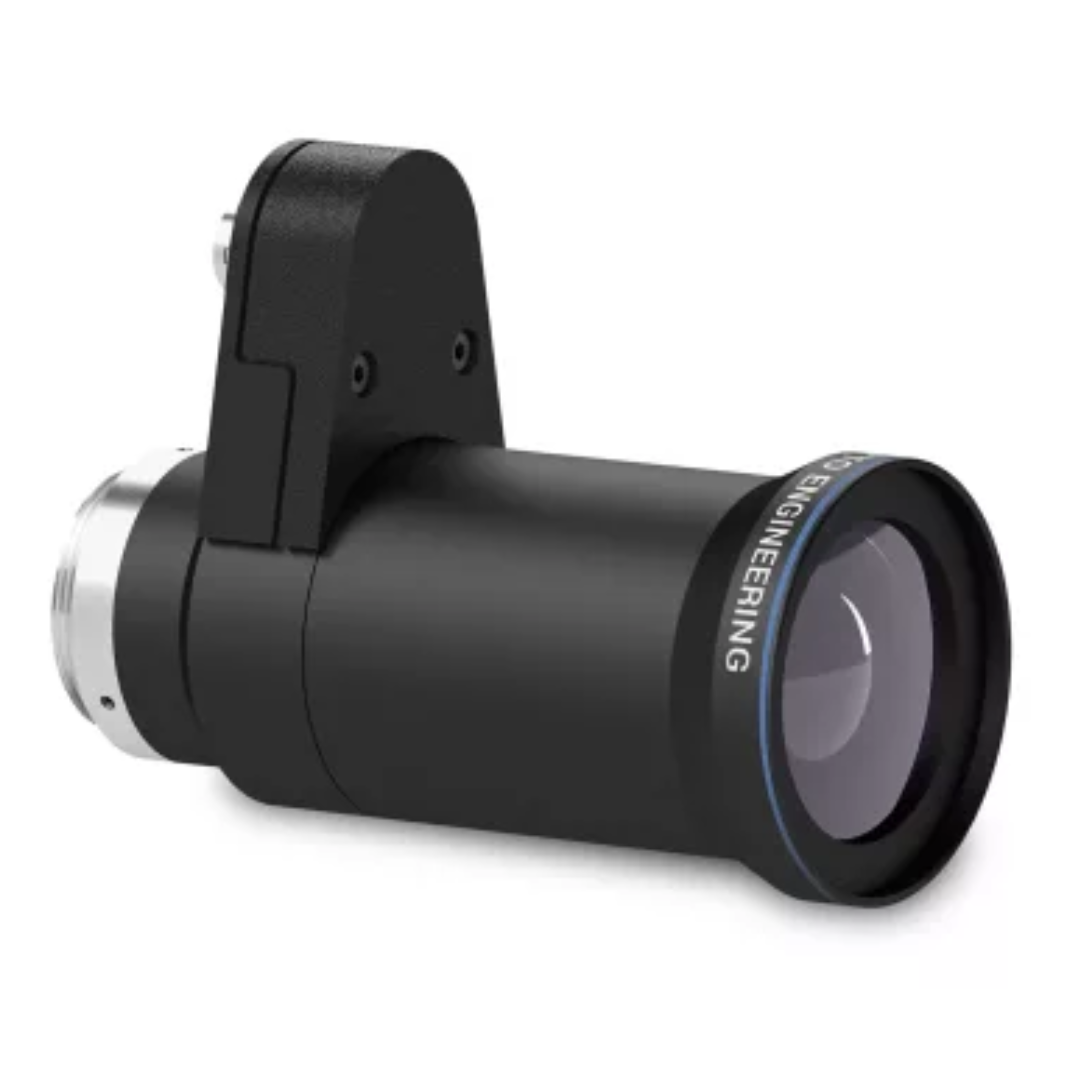

The EL12MP series features 12 MP fixed focal length lenses optimized for sensors up to 1.1″ with integrated liquid lens technology.
The high-resolution optical design combined with a Optotune liquid lens allows autofocus within a few milliseconds and acquisition of high-quality images.
These lenses are ideal for high-speed inspection that require quick, precise and remote focusing at different working distances and high-resolution images.
Sectors that can greatly benefit from this innovative solution are, for example, the food and beverage, pharmaceutical, cosmetics, and electronics industries.
Moreover, EL12MP lenses are ideal for guiding robotic arms used for applications such as fast pick-and-place and bin-picking.
The EL12MP series ensures high repeatability and focus stability thanks to a constant temperature calibration.
Maximum performance can be obtained by combining EL12MP lenses with ITALA G.EL cameras: the built-in liquid lens driver and the autofocus functionality allow time savings as the camera is able to find the best focusing condition of the lens automatically and quickly without direct operator intervention and without the need for an external controller.
| # | Part Number | Focal Length (mm) | Max Sensor Size | AOV diagonal (deg) | Object FOV 14.16 × 10.37 (mm) | Working Distance Range (mm) | f/N | Distortion (%) | Mount | Filter Thread (mm) | Front Diameter (mm) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | EL12MP1240 | 12 | 1.1″ | 74.0 | 257.45 × 188.55 | 200 - inf | 4 | < 4.00 | C | — | 40.0 | 74.1 |
| 2 | EL12MP1640 | 16 | 1.1″ | 58.0 | 157.33 × 115.22 | 160 - inf | 4 | < 3.00 | C | M40.5 × 0.5 | 42.0 | 82.4 |
| 3 | EL12MP2540 | 25 | 1.1″ | 38.6 | 104.12 × 76.25 | 160 - inf | 4 | < 0.20 | C | M40.5 × 0.5 | 42.0 | 89.7 |
| 4 | EL12MP3540 | 35 | 1.1″ | 28.2 | 94.40 × 69.13 | 200 - inf | 4 | < 0.15 | C | M40.5 × 0.5 | 42.0 | 94.6 |
Charoite’s Key Features:
Emerald’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Very fast f/1.4 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:6.7 scale
Features special screws to fix focus and aperture settings even in rough situations
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Fast f/2.0 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:5.3 scale
Features special screws to fix focus and aperture settings even in rough situations
