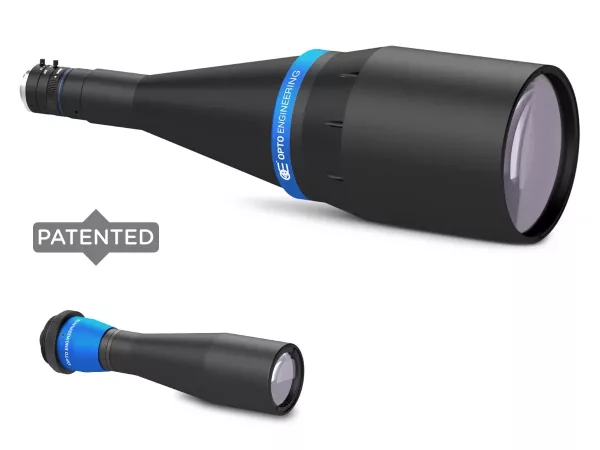

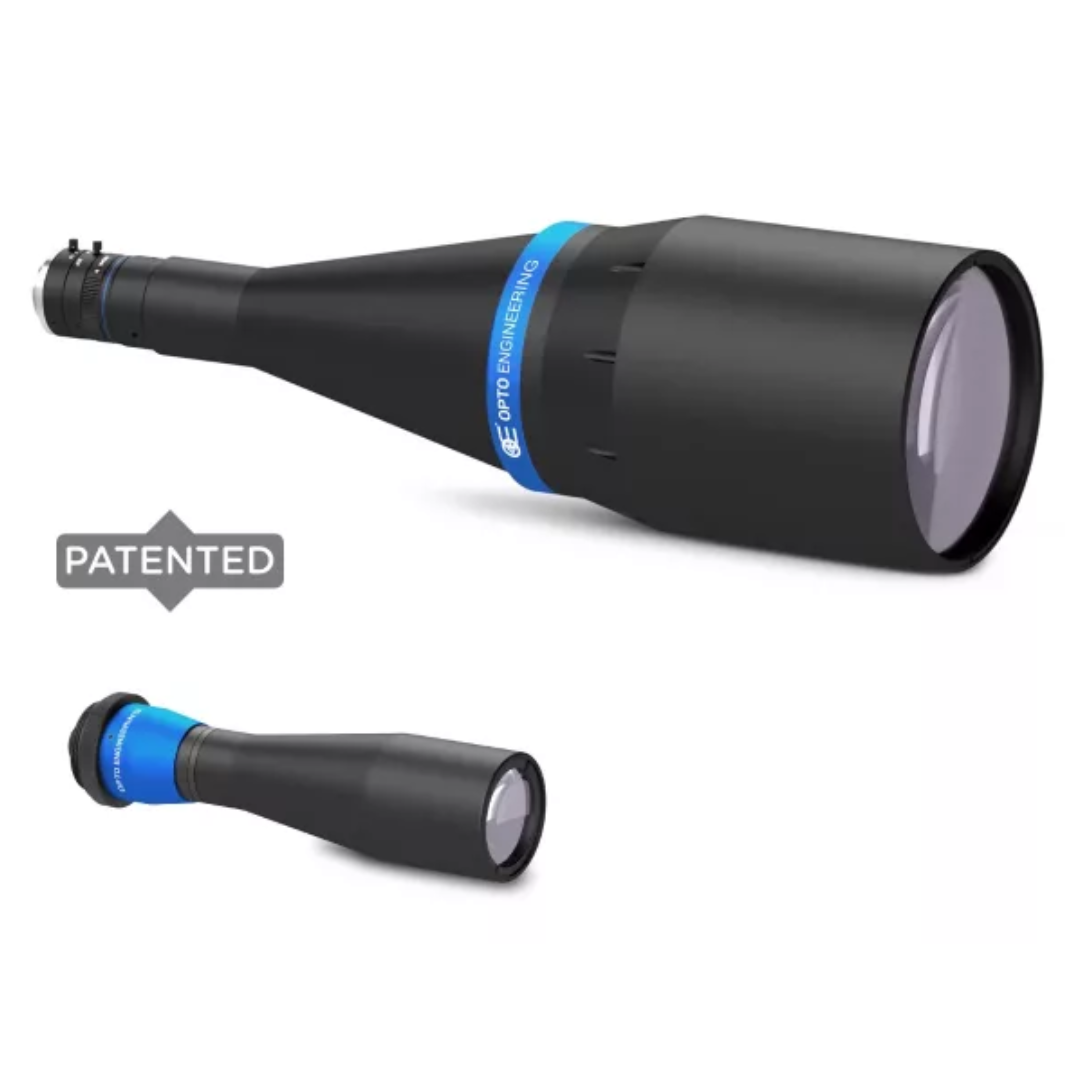

PC pericentric lenses are unique 360° view lenses designed to perform all-round inspection of objects from 2 mm up to 65 mm in diameter, quickly and reliably.
The innovative design allows one camera to see the top and lateral surfaces of an object in perfect focus all in one image. This allows you to greatly simplify the layout of the vision system, with no need for multiple cameras, lenses or mirrors.
The term pericentric comes from the specific path of the light rays: the lateral surface of the object appears to be wrapped around the top face, making the PC series ideal for cylindrical objects which are very common in the beverage, pharmaceutical, automotive and metal industry.
Typical applications include bottleneck thread inspection and data matrix reading – the code will always be properly imaged regardless of its position.
| # | Part Number | Image Circle Dia (mm) | Min Sensor Size | Min FOV (mm) | Max FOV (mm) | Working Distance - Min Object (mm) | Working Distance - Max Object (mm) | Angle of View (deg) | f/N | Mount | Length (mm) | Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | PC13030HP | 3.6 | 1/3" | 20.0 x 13.5 | 65.0 x 42.1 | 76.2 | 0.0 | 25 | 1.4 - close | C | 455.2 | 157.0 |
| 2 | PC12030HP | 4.8 | 1/2" | 20.0 x 13.5 | 65.0 x 42.1 | 76.2 | 0.0 | 25 | 1.4 - close | C | 451.5 | 157.0 |
| 3 | PC13030XS | 3.6 | 1/3" | 15.0 x 9.2 | 52.5 x 35.3 | 73.1 | 0.0 | 22 | 1.4 - close | C | 385.3 | 116.0 |
| 4 | PC12030XS | 4.8 | 1/2" | 15.0 x 9.2 | 52.5 x 35.3 | 73.1 | 0.0 | 22 | 1.4 - close | C | 381.6 | 116.0 |
| 5 | PC23030XS | 6.6 | 2/3" | 15.0 x 9.2 | 52.5 x 35.3 | 73.1 | 0.0 | 22 | 1.4 - close | C | 381.1 | 116.0 |
| 6 | PC13020XC | 3.6 | 1/3" | 10.0 x 6.7 | 35.0 x 26.5 | 46.6 | 0.0 | 25 | 1.4 - close | C | 215.8 | 84.0 |
| 7 | PC12020XC | 5.1 | 1/1.8" | 10.0 x 6.7 | 35.0 x 26.5 | 46.6 | 0.0 | 25 | 1.4 - close | C | 212.1 | 84.0 |
| 8 | PC23020XC | 6.8 | 2/3" | 10.0 x 6.7 | 35.0 x 26.5 | 46.6 | 0.0 | 25 | 1.4 - close | C | 212.0 | 84.0 |
| 9 | PCN013 | 3.6 | 1/3" | 2.0 x 2.6 | 12.0 x 10.6 | 21.3 | 0.0 | 21 | 23 | C | 129.6 | 35.0 |
Thulite’s Key Features:
Citrine’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Very fast f/1.4 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:6.7 scale
Features special screws to fix focus and aperture settings even in rough situations
Sylvine’s Key Features:
