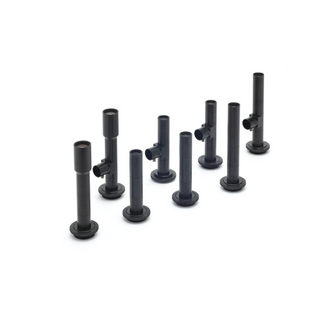

Myutron Telecentric Lens – TL Series (WD110 Built-in type Telecentric Lens)

Features:

Compact and suitable for customized optical systems
φ16mm telecentric lens
R type is improved contrast and relative illumination

Select options below to view price

Model

TL08-110R
TL08C-110R
TL10-110R
TL10C-110R
TL20-110R
TL20C-110R
TL30C-110
TL40C-110R
TL60C-110R
TL80C-110R

Product price
Additional options total:
Order total:

This product is already in your proposal request list.

Model	Magnification	F No.	Object side NA	WD	OI	Depth of field	Resolution	TV distortion	Maximum Compatible sensor	Mount
TL08-110R	0.8x	16.7	0.024	111mm	240mm	2.09mm	14μ	0.00%	1/1.8”	C
TL10-110R	1x	20.9	0.024	110mm	240mm	1.67mm	14μ	0.00%	1/1.8”	C
TL20-110R	2x	33.45	0.03	110mm	218mm	0.67mm	11.2μ	-0.03%	1/2”	C
TL08C-110R	0.8x	16.7	0.024	111mm	240mm	2.09mm	14μ	0.00%	1/1.8”	C
TL10C-110R	1x	20.9	0.024	110mm	240mm	1.67mm	14μ	0.00%	1/1.8”	C
TL20C-110R	2x	33.45	0.03	110mm	218mm	0.67mm	11.2μ	-0.03%	1/2”	C
TL30C-110	3x	30.4	0.049	110mm	218mm	0.27mm	6.8μ	0.06%	2/3”	C
TL40C-110R	4x	44.4	0.045	110mm	210mm	0.22mm	7.5μ	0.00%	1/1.8”	C
TL60C-110R	6x	66.7	0.045	110mm	232mm	0.15mm	7.5μ	0.00%	1/1.8”	C
TL80C-110R	8x	88.9	0.045	110mm	255mm	0.11mm	7.5μ	0.00%	1/1.8”	C
