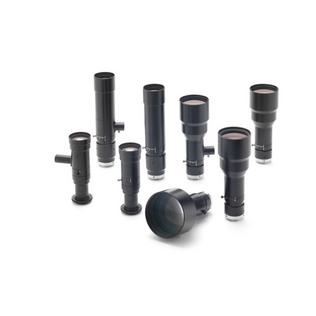

Myutron Telecentric Lens – MGTL Series (2 Mega Pixel Telecentric Lens)

Features:

  • Compact design, suitable for small device
  • Adjustable iris, possible to adjust depth of field
  • TV distortion less than 0.05%
  • MGTL05-1.1 is suitable for 1.1”
  • MGTL0275V-2 is suitable for 2/3”(φ12.8mm)




Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum Compatible sensor

Mount

MGTL014 0.14x 4.0 0.017 108mm 231mm 16.3mm 19.7μ 0.02% 1/2” C
MGTL019 0.19x  4.0 0.024 108mm 236mm 8.9mm 14.0μ 0.01% 2/3” C
MGTL023 0.23x 5.5 0.021 111mm 227mm 8.3mm 16.0μ 0.01% 2/3” C
MGTL0275-2 0.275x 7.6 0.018 110mm 234mm 8.1mm 18.6μ 0.00% 2/3” C
MGTL03 0.3x 7.0 0.021 110mm  233mm 6.2mm 16.0μ  0.05% 2/3” C
MGTL04 0.4x 9.2 0.022 110mm 239mm 4.6mm 15.2μ 0.00% 2/3” C
MGTL05-1.1 0.5x 6.37 0.039 108mm 286mm 2mm 8.6μ 0.00% 1.1” C
