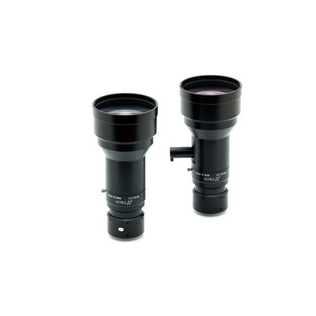

Myutron Telecentric Lens – MGTL Series (12-25 Mega Pixel Telecentric Lens for 1.1”)

Features:

  • MGTL03V and MGTL03VC are suitable for 12 Mega Pixel
  • MGTL0345V is suitable for 25 Mega Pixel
  • Long working distance, 150mm – 160mm with excellent brightness
  • Variable iris, possible to adjust DOF
  • Suitable for measurement and inspection, required for high accuracy

Model Magnification FNO

Object side NA

WD

OI

Depth of field

Resolution

TV distortion

Maximum compatible Sensor Mount
MGTL03VC 0.3x 4.8

0.031

150.5mm 329.7mm

4.26mm

10.8μ

0.00%

1.1” C
MGTL03V 0.3x 4.8

0.031

150.5mm 329.7mm 4.26mm 10.8μ 0.00% 1.1” C
MGTL0345V 0.345x 4.8  0.036 160mm  357.8mm 3.2mm 9.3μ 0.00% 1.1” C
