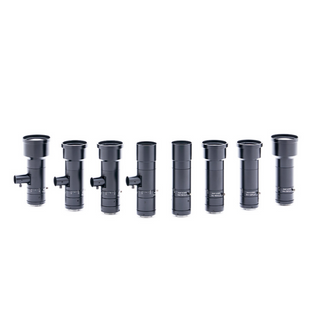

Myutron Telecentric Lens – FTV Series (WD 110 mm Series 0.5x-6.0x)

Features:

Select options below to view price

Model	Magnification	F No.	Object side NA	WD	OI	Depth of field	Resolution	TV distortion	Maximum Compatible sensor	Mount
FTV05-110	0.5×	6.3	0.040	114.7mm	257.7mm	2.02mm	8.5μ	0.00％	1.1”	C
FTV07-110	0.7×	6.4	0.055	115.0mm	254.7mm	1.05mm	6.1μ	0.00％	1.1”	C
FTV08-110	0.8×	6.2	0.064	115.0mm	260.1mm	0.78mm	5.2μ	0.00％	1.1”	C
FTV10-110	1.0×	7.0	0.071	110mm	258.5mm	0.56mm	4.7μ	0.00％	1.1”	C
FTV15-110	1.5×	10.1	0.074	110mm	269.2mm	0.36mm	4.5μ	0.00％	1.1”	C
FTV20-110	2.0×	11.5	0.087	110mm	279.9mm	0.23mm	3.9μ	0.01％	1.1”	C
FTV30-110	3.0×	16.0	0.094	110mm	277.7mm	0.14mm	3.6μ	0.00％	1.1”	C
FTV40-110	4.0×	20.0	0.100	110mm	290.2mm	0.10mm	3.4μ	-0.01％	1.1”	C
FTV60-110	6.0×	30.0	0.100	110mm	300.0mm	0.07mm	3.4μ	0.00％	1.1”	C
FTV05C-110	0.5×	6.3	0.040	114.7mm	257.7mm	2.02mm	8.5μ	0.00％	1.1”	C
FTV07C-110	0.7×	6.4	0.055	115.0mm	254.7mm	1.05mm	6.1μ	0.00％	1.1”	C
FTV08C-110	0.8×	6.2	0.064	115.0mm	260.1mm	0.78mm	5.2μ	0.00％	1.1”	C
FTV10C-110	1.0×	7.0	0.071	110mm	258.5mm	0.56mm	4.7μ	0.00％	1.1”	C
FTV15C-110	1.5×	10.1	0.074	110mm	269.2mm	0.36mm	4.5μ	0.00％	1.1”	C
FTV20C-110	2.0×	11.5	0.087	110mm	279.9mm	0.23mm	3.9μ	0.01％	1.1”	C
FTV30C-110	3.0×	16.0	0.094	110mm	277.7mm	0.14mm	3.6μ	0.00％	1.1”	C
FTV40C-110	4.0×	20.0	0.100	110mm	290.2mm	0.10mm	3.4μ	-0.01％	1.1”	C
FTV60C-110	6.0×	30.0	0.100	110mm	300.0mm	0.07mm	3.4μ	0.00％	1.1”	C
