02. INDUSTRIAL LENS
/ Myutron Line Sensor Lens – SP Series
Zoom
02. INDUSTRIAL LENS

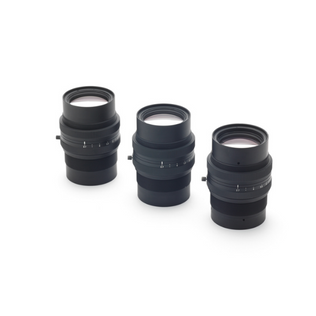

Myutron Line Sensor Lens – SP Series
Features:
Suitable for Line Sensor Camera such as 16K x 3.5μm and 8K x 7µm
Reduce relative illumination and excellent uniformity
Very low distortion
Excellent brightness, ∞F No. 2.7
F and M72 mount are available
Select options below to view price
Model
Choose
SP05
SP07
SP10
SP14
SP20
SP05
SP07
SP10
SP14
SP20
Clear
Product price
Additional options total:
Order total:
Add to cart
Add to Proposal
This product is already in your proposal request list.
Browse List
Myutron Line Sensor Lens – SP Series Model
Product Model:
Product Model
Magnification
F No.
WD
OI
Maximum
Compatible sensor
SP05
0.5x
4.3
276mm
463mm
φ67mm
SP07
0.7x
5
211mm
421mm
φ67mm
SP10
1.0x
5.8
165mm
407mm
φ67mm
SP14
1.4x
6.8
112mm
419mm
φ86mm
SP20
2.0x
8.6
90mm
463mm
φ100mm
