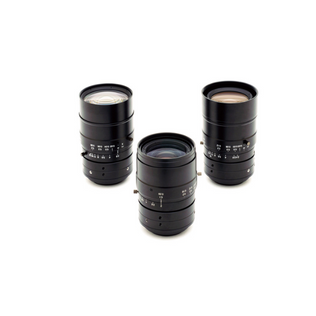

Myutron Line Sensor Lens – MS Series

Features:

Suitable for large format, 31 Mega Pixel – 3.45μm and Line Sensor Camera , 8K x 3.5μm
Adopt screw mount, stable mount mechanism without rattling
Achieve low distortion and wide angle for large format, φ30.7mm
Stable performance at different working distance by floating design
M48, M42 and M35 mount are available

This product is already in your proposal request list.

Product Model	Focal Length	∞F NO.	WD	Magnification at MOD	TV distortion	Max. Compatible Sensor	Mount
MS1828-□	18mm	2.8	97mm～∞	0.15x	0.52%	Φ30.7mm	M42,TFL-Ⅱ,TFL
MS2524-□	25mm	2.4	118mm～∞	0.2x	-0.27%	Φ30.7mm	M42,TFL-Ⅱ,TFL
MS3520-□	35mm	2.0	93mm～∞	0.39x	-0.11%	Φ30.7mm	M42,TFL-Ⅱ,TFL
