Automated wide field of view microscope for single lens
| Item | Parameter |
|---|---|
| Main Body | 1X Tube lens, focal length:200mm Camera format: 2" Camera Mount: M58 Weight: 7Kg |
| Lens Mount | M26x0,7 |
| Z axis | Step motor with driver Stroke: ±5.5mm Repeatability: 0.5um(open loop) Resolution:0.1um(1/20 subdivision) |
| Auto Focus | Auto focus sensor: LAF5S Static accuracy: 1/4 DOF, Dynamic accuracy: 1/2 DOF Focus speed: 8mm/s |
| Illumination | 3W White or blue LED Coaxial light source With analog controller Option: Super brightness digital fiber light source Option: External dark filed illumination |
| Environment | Clean room class:100~1000 Ambient temperature:22±2°C |
Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog quality signal output 0-10V
Ethernet communication to PC (RJ45 supports passive POE)
2x 3W isolated LED supply controlled by Auto Focus user interface
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V
Inputs for limit switches and safety stop
Adapters available for a range of different microscopes
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor, piezo, voice-coil or servo drives
Unique Correlation Processing laser focus method
Full laser line with segment processing
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed

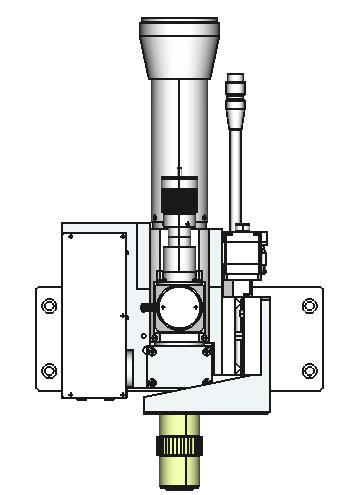

Automated microscope for single lens
Auto Focus Sensor for automated optical inspection (AOI) Systems and industrial microscopes
Analog Output of Focus Distance: 0-10V
Applicable to infinite corrected lenses from 1x to 100x magnification, VIS, IR, UV
The LAF4- ORB comes as a standalone Auto Focus sensor and provides an analog output to connect with an external stage amplifier or motor controller with analog close look Control input
UI interface
Easy Integration and Software implementation
