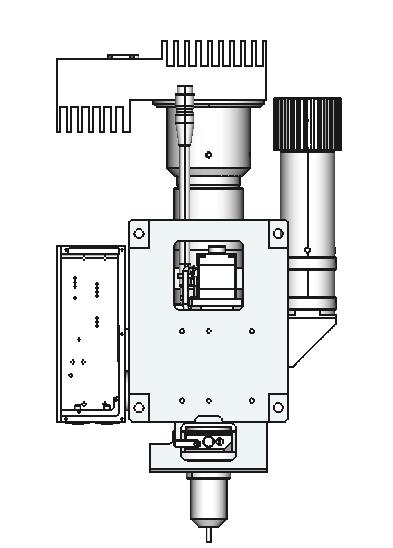

Automated Differential Interference Contrast microscope
| Item | Parameter |
|---|---|
| Main Body | 1X Tube lens, focal length:200mm Fits for 2/3", 1", 4/3" camera format Camera Mount: C-mount Weight: 8Kg |
| Lens Mount | Rotary Lens changer 4x M26×0.7 |
| Z axis | Step motor with driver Stroke: ±5.5mm Repeatability: 0.5um(open loop) Resolution:0.1um(1/20 subdivision) |
| Auto Focus | Auto focus sensor: LAF5S Static accuracy: 1/4 DOF, Dynamic accuracy: 1/2 DOF Focus speed: 8mm/s |
| Illumination | 3W White or blue LED Coaxial light source With analog controller Option: Super brightness digital fiber light source Option: External dark filed illumination |
| Environment | Clean room class:100~1000 Ambient temperature:22±2°C |
Automated wide field of view microscope for single lens
Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog quality signal output 0-10V
Ethernet communication to PC (RJ45 supports passive POE)
2x 3W isolated LED supply controlled by Auto Focus user interface
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V
Inputs for limit switches and safety stop
Full laser line with segment processing
The unique correlation processing focus technology enables auto focus where other laser or image auto focus systems fail
Extreme robust focus results by interactive selection of best focus parameters
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor , piezo , voice-coil or servo drives
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
Adapters available for a range of different microscopes
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor, piezo, voice-coil or servo drives
Unique Correlation Processing laser focus method
Full laser line with segment processing
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
