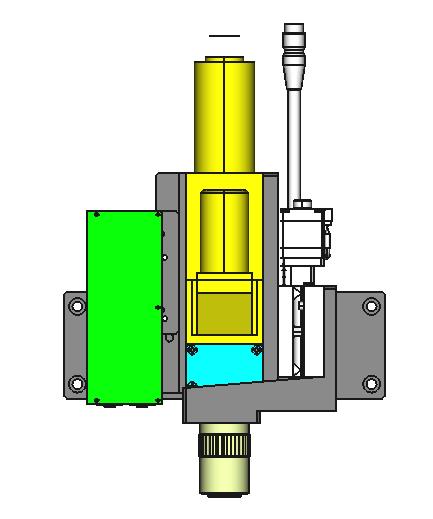

Automated microscope for single lens
| Item | Parameter |
|---|---|
| Main Body | 1X Tube lens, focal length: 200mm |
| Fits for 1", 4/3" camera format | |
| Camera Mount: C-mount | |
| Weight: 5Kg | |
| Lens Mount | M26×0.7 |
| Z axis | Step motor with driver |
| Stroke: ±5.5mm | |
| Repeatability: 0.5um (open loop) | |
| Resolution: 0.1um (1/20 subdivision) | |
| Auto Focus | Auto focus sensor: LAF5S |
| Static accuracy: 1/4 DOF, Dynamic accuracy: 1/2 DOF | |
| Focus speed: 8mm/s | |
| Illumination | 3W White or blue LED Coaxial light source |
| With analog controller | |
| Option: Super brightness digital fiber light source | |
| Option: External dark field illumination | |
| Environment | Clean room class: 100~1000 |
| Ambient temperature: 22±2°C |
Automated microscope with rotary lens changer
Automated Differential Interference Contrast microscope
Auto Focus Sensor for automated optical inspection (AOI) Systems and industrial microscopes
Analog Output of Focus Distance: 0-10V
Applicable to infinite corrected lenses from 1x to 100x magnification, VIS, IR, UV
The LAF4- ORB comes as a standalone Auto Focus sensor and provides an analog output to connect with an external stage amplifier or motor controller with analog close look Control input
UI interface
Easy Integration and Software implementation
Adapters available for a range of different microscopes
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor, piezo, voice-coil or servo drives
Unique Correlation Processing laser focus method
Full laser line with segment processing
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
