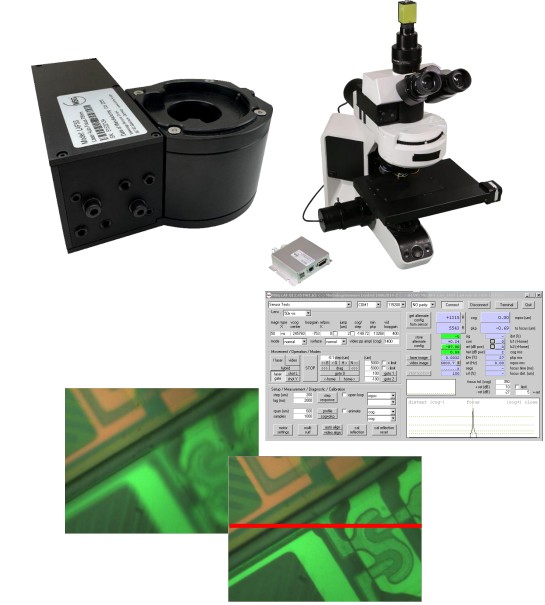

Adapters available for a range of different microscopes
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor, piezo, voice-coil or servo drives
Unique Correlation Processing laser focus method
Full laser line with segment processing
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
| Lens Type | APO Plan Infinite Microscope Objective Lens | ||||
|---|---|---|---|---|---|
| Magnification | 5x | 10x | 20x | 50x | 100x |
| Numerical aperture | 0.14 | 0.28 | 0.42 | 0.55 | 0.70 |
| Sample rate | 4kHz max. | ||||
| Image sensor | 250 full frames/sec. max. | ||||
| Surface detection Range | ±12000µm | ±4000µm | ±1500µm | ±300µm | ±100µm |
| Accuracy* | Laser mode: +/-0.4 of Lens DOF | ||||
| Light Source | Safety Class III R Wavelength 660nm–670nm, 785nm | ||||
| Operation Temperature | +5°C to +50°C | ||||
| Beam Shape | 45° tilted laser line | ||||
| Weight Sensor + cable | 400gr + 140gr | ||||
| Weight Interface | 400gr | ||||
| Recommended port | Beamsplitter 50/50 @670nm/@785nm | ||||
| Laser AF Cycle time | 0.1s | Auto Tracking | |||
| Power | In | 24-48V | |||
| Digital Control Output | Pulse/Direction or Pulse 1/ Pulse 2 | ||||
| Analog Control Output | 0–10V Distance and position | ||||
| Signal Quality Output | Analog | 0–10V | |||
| Communication | RS232 (Controller LAF-C2) | LAN (Controller LAF-C3E) | |||
| Laser ON/OFF | In | TTL | & via command | ||
| *All data refer to measurement on plain glass | |||||
Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog Quality signal output 0-10V
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V
Single connection to AF Sensor, all connections from MSG Autofocus to your machine going through the LAF-C2
Inputs for limit switches and safety stop
Auto Focus & Tracking for automated optical inspection (AOI) Systems and industrial microscopes
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Full laser line with segment processing
Extreme robust focus results by interactive selection of best focus parameters
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor-, piezo-, voice-coil- or servo drives
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
Auto Focus Sensor for automated optical inspection (AOI) Systems and industrial microscopes
Analog Output of Focus Distance: 0-10V
Applicable to infinite corrected lenses from 1x to 100x magnification, VIS, IR, UV
The LAF4- ORB comes as a standalone Auto Focus sensor and provides an analog output to connect with an external stage amplifier or motor controller with analog close look Control input
UI interface
Easy Integration and Software implementation
Automated Differential Interference Contrast microscope
