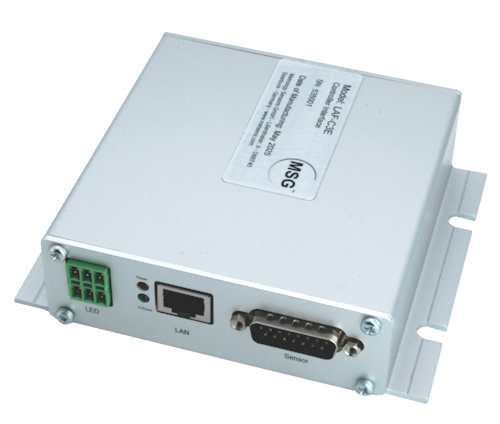

Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog quality signal output 0-10V
Ethernet communication to PC (RJ45 supports passive POE)
2x 3W isolated LED supply controlled by Auto Focus user interface
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V
Inputs for limit switches and safety stop
| Feature | Details |
|---|---|
| Compatibility | Designed to operate with any MSG LAF Laser Autofocus Sensor |
| Output 1 | Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive) |
| Output 2 | Analog Focus Control output 0–10V (e.g. to control Piezo actuators) |
| Output 3 | Analog quality signal output 0–10V |
| Communication | Ethernet to PC via RJ45 (supports passive POE) |
| LED Supply | 2x 3W isolated LED supply controlled by Auto Focus user interface |
| I/O & Power | Industrial-grade robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24–48V |
| Inputs | Limit switches and safety stop |
Automated microscope with rotary lens changer
Auto Focus Sensor for automated optical inspection (AOI) Systems and industrial microscopes
Analog Output of Focus Distance: 0-10V
Applicable to infinite corrected lenses from 1x to 100x magnification, VIS, IR, UV
The LAF4- ORB comes as a standalone Auto Focus sensor and provides an analog output to connect with an external stage amplifier or motor controller with analog close look Control input
UI interface
Easy Integration and Software implementation
Automated microscope for single lens
Full laser line with segment processing
The unique correlation processing focus technology enables auto focus where other laser or image auto focus systems fail
Extreme robust focus results by interactive selection of best focus parameters
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor , piezo , voice-coil or servo drives
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
