Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog Quality signal output 0-10V
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V

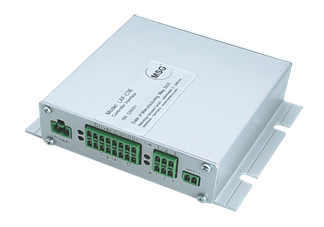

Single connection to AF Sensor, all connections from MSG Autofocus to your machine going through the LAF-C2
Inputs for limit switches and safety stop
Canon has been manufacturing CMOS sensors since 2000 for exclusive use in Canon products. Building on that expertise and success, Canon is now committed to starting external sales to collaborate with various industries. Canon CMOS sensors feature unique designs to meet the needs of demanding vision applications.
Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog quality signal output 0-10V
Ethernet communication to PC (RJ45 supports passive POE)
2x 3W isolated LED supply controlled by Auto Focus user interface
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V
Inputs for limit switches and safety stop
Adapters available for a range of different microscopes
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor, piezo, voice-coil or servo drives
Unique Correlation Processing laser focus method
Full laser line with segment processing
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
I7 is a high resolution multi-spectrum CMOSTDI image sensor with embedded CCD pixels. The sensor is composed of 1 P zone and 4 B zones. P zone features 12K-pixel resolution with 128 TDI stages, pixel size 7um*7um. B zone features 3K-pixel resolution with 64 TDI stages, pixel size 28um*28um. It is designed
with radiation hardness to work reliably in the radiation environment.
Features
High sensitivity and high dynamic range
BSI with peak QE 85%
Highly Integrated SOC with on-chip clock driver, timing & control, ADC
Advanced design structure for better Full-Well and lower noise
Enhanced NIR performance
Super radiation hardness
Applications
LEO Satellite Observation.
Industrial Inspection.
Scientific Research.
| Parameter | P zone | B zone |
|---|---|---|
| Resolution | 12,288 px | 3,072 px |
| TDI stage | 128 | 64 |
| Pixel size | 7 µm × 7 µm | 28 µm × 28 µm |
| Full well | 80 Ke⁻ | 240 Ke⁻ |
| Total noise | < 10 e⁻ | < 60 e⁻ |
| Line rate | 100 KHz | 25 KHz |
| TDI direction | Bi-direction | Bi-direction |
| ADC | 14-bit | 14-bit |
| MTF | 0.50 | 0.50 |
| FPN | < 1.2% | < 1.2% |
| PRNU | < 1.5% | < 1.5% |
| TID | 100 Krad | 100 Krad |
| SEE | 75 MeV·mg/cm² | 75 MeV·mg/cm² |
