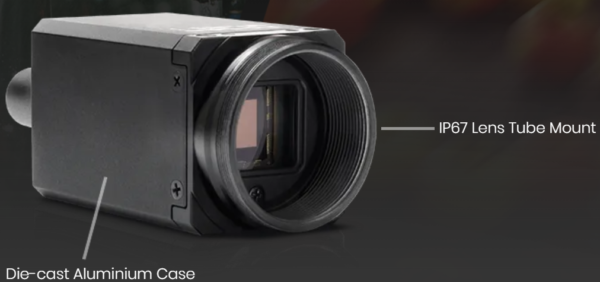

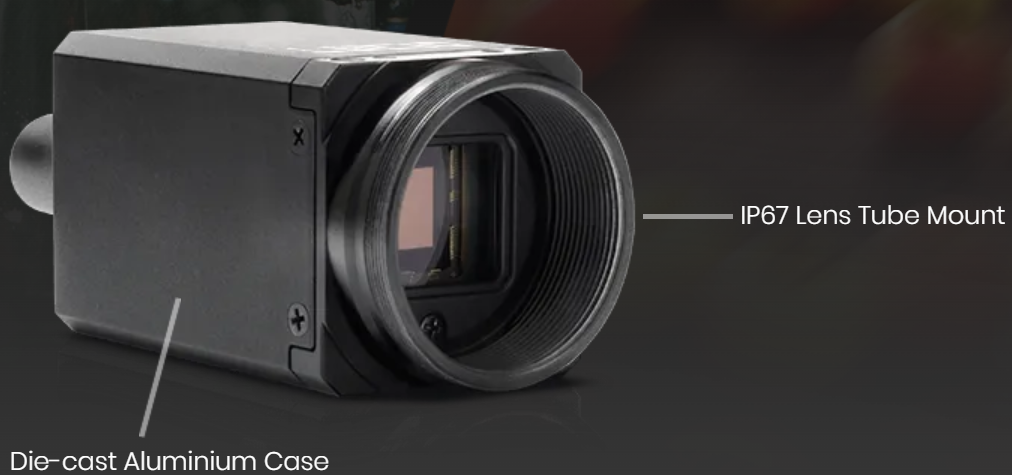

Lucid Machine Vision Cameras – Triton GigE Vision Series

Built with industrial grade immunity. Lightweight and compact 29 x 29 mm size. Active sensor alignment for superior optical performance. GigE Vision and GenICam compliant PoE machine vision camera designed for all industrial environments.

Models	MP	Resolution	FPS	Sensor	Format	Pixel Size	Shutter	Lens Mount	Chroma	Interface
TRI245S	24.5 MP	5320 x 4600 px	4.5 fps	Sony IMX540 CMOS	4/3"	2.74 µm	Global	C	Mono / Color	M12 GigE Vision
TRI204S	20.4 MP	4504 x 4504 px	5.5 fps	Sony IMX541 CMOS	1.1"	2.74 µm	Global	C	Mono / Color	M12 GigE Vision
TRI200S	20.0 MP	5472 x 3648 px	5.6 fps	Sony IMX183 CMOS	1"	2.40 µm	Rolling	C	Mono / Color	M12 GigE Vision
TRI162S	16.2 MP	5320 x 3032 px	6.9 fps	Sony IMX542 CMOS	1.1"	2.74 µm	Global	C	Mono / Color	M12 GigE Vision
TRI124S	12.3MP	4096 x 3000 px	9.0 fps	Sony IMX545 CMOS	1/1.1"	2.74 µm	Global	C	Mono / Color	M12 GigE Vision
TRI120S	12.3 MP	4096 x 3000 px	9.0 fps	Sony IMX304 CMOS	1.1"	3.45 µm	Global	C	Mono / Color	M12 GigE Vision
TRI122S	12.2 MP	4024 x 3036 px	9.1 fps	Sony IMX226 CMOS	1/1.7"	1.85 µm	Rolling	C	Mono / Color	M12 GigE Vision
TRI089S	8.9 MP	4096 x 2160 px	12.5 fps	Sony IMX267 CMOS	1"	3.45 µm	Global	C	Mono / Color	M12 GigE Vision
TRI081S	8.1 MP	2840 x 2840 px	13.8 fps	Sony IMX546 CMOS	2/3″	2.74 µm	Global	C	Mono / Color	M12 GigE Vision
TRI071S	7.1 MP	3208 x 2200 px	15.8 fps	Sony IMX428 CMOS	1.1"	4.5 µm	Global	C	Mono / Color	M12 GigE Vision
TRI064S	6.3 MP	3072 x 2048 px	17.7 fps	Sony IMX178 CMOS	1/1.8”	2.40 µm	Rolling	C	Mono / Color	M12 GigE Vision
TRI054S	5.4 MP	2880 x 1860 px	20.8 fps	Sony IMX490 CMOS	1/1.55"	3.0 µm	Rolling	C	Color 24bit HDR	M12 GigE Vision
TRI050S1-P/Q	5.0 MP	2448 x 2048 px	22 fps	Sony IMX264MZR CMOS Sony IMX264MYR CMOS	2/3"	3.45 µm	Global	C	Polarized Mono Polarized Color	M12 GigE Vision
TRI050S-P/Q	5.0 MP	2448 x 2048 px	22 fps	Sony IMX250MZR CMOS Sony IMX250MYR CMOS	2/3"	3.45 µm	Global	C	Polarized Mono Polarized Color	M12 GigE Vision
TRI051S	5.0 MP	2448 x 2048 px	22 fps	Sony IMX547 CMOS	1/1.8″	2.74 µm	Global	C	Mono / Color	M12 GigE Vision
TRI050S	5.0 MP	2448 x 2048 px	22 fps	Sony IMX264 CMOS	2/3"	3.45 µm	Global	C	Mono / Color	M12 GigE Vision
TRI032S	3.2 MP	2048 x 1536 px	35.4 fps	Sony IMX265 CMOS	1/1.8"	3.45 µm	Global	C	Mono / Color	M12 GigE Vision
TRI028S	2.8 MP	1936 x 1464 px	39.2 fps	Sony IMX429 CMOS	2/3"	4.5 µm	Global	C	Mono / Color	M12 GigE Vision
TRI023S	2.3 MP	1920 x 1200 px	48.3 fps	Sony IMX392 CMOS	1/2.3"	3.45 µm	Global	C	Mono / Color	M12 GigE Vision
TRI016S	1.6 MP	1440 x 1080 px	71.6 fps	Sony IMX273 CMOS	1/2.9"	3.45 µm	Global	C	Mono / Color	M12 GigE Vision
TRI005S	0.5 MP	812 x 620 px	166.4 fps	Sony IMX433 CMOS	1/1.7"	9.0 µm	Global	C	Mono / Color	M12 GigE Vision
TRI004S	0.4 MP	728 x 544 px	286 fps	Sony IMX287 CMOS	1/2.9"	6.9 µm	Global	C	Mono / Color	M12 GigE Vision

Line Scan Model

SWIR Models

Models	MP	Resolution	FPS	Sensor	Sensor Size	Pixel Size	Shutter	Cooling	Lens Mount	Chroma / Sensitivity range	Interface
TRI013S-WC	1.3 MP	1280 x 1024 px	84.9 fps	Sony IMX990 InGaAs	1/2“	5 µm	Global	None	C	Mono, 400nm to 1700nm	M12 GigE Vision
TRI003S-WC	0.3 MP	640 x 512 px	257 fps	Sony IMX991 InGaAs	1/4“	5 µm	Global	None	C	Mono, 400nm to 1700nm	M12 GigE Vision

Embedded Vision Models

Models	MP	Resolution	Sensor	Chipset	Sensor Size	Pixel Size	Shutter	Lens Mount	Chroma	GigE Interface
Triton Edge	1.6 MP	1440 x 1080 px	Sony IMX296 CMOS	Xilinx UltraScale+ ZU3CG MPSoC	1/2.9“	3.45 µm	Global	C	Mono / Color	M12

Event-Based Models

Models	MP	Resolution	Sensor	Sensor Size	Pixel Size	Shutter	Lens Mount	Chroma	GigE Interface
Triton EVS	0.3 MP	640 x 480 px	Prophesee PPS3MVCD Event-Based Metavision® sensor	3/4″	15.0 µm	Shutter-Free	C	N/A	M12
