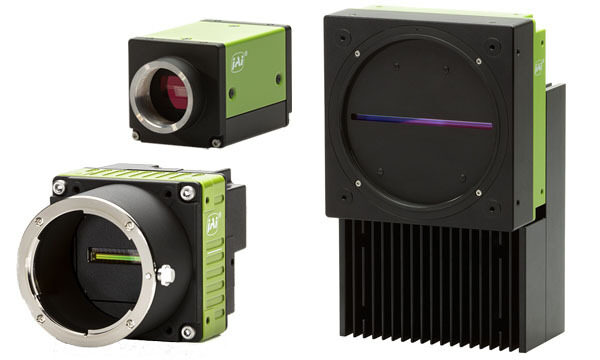

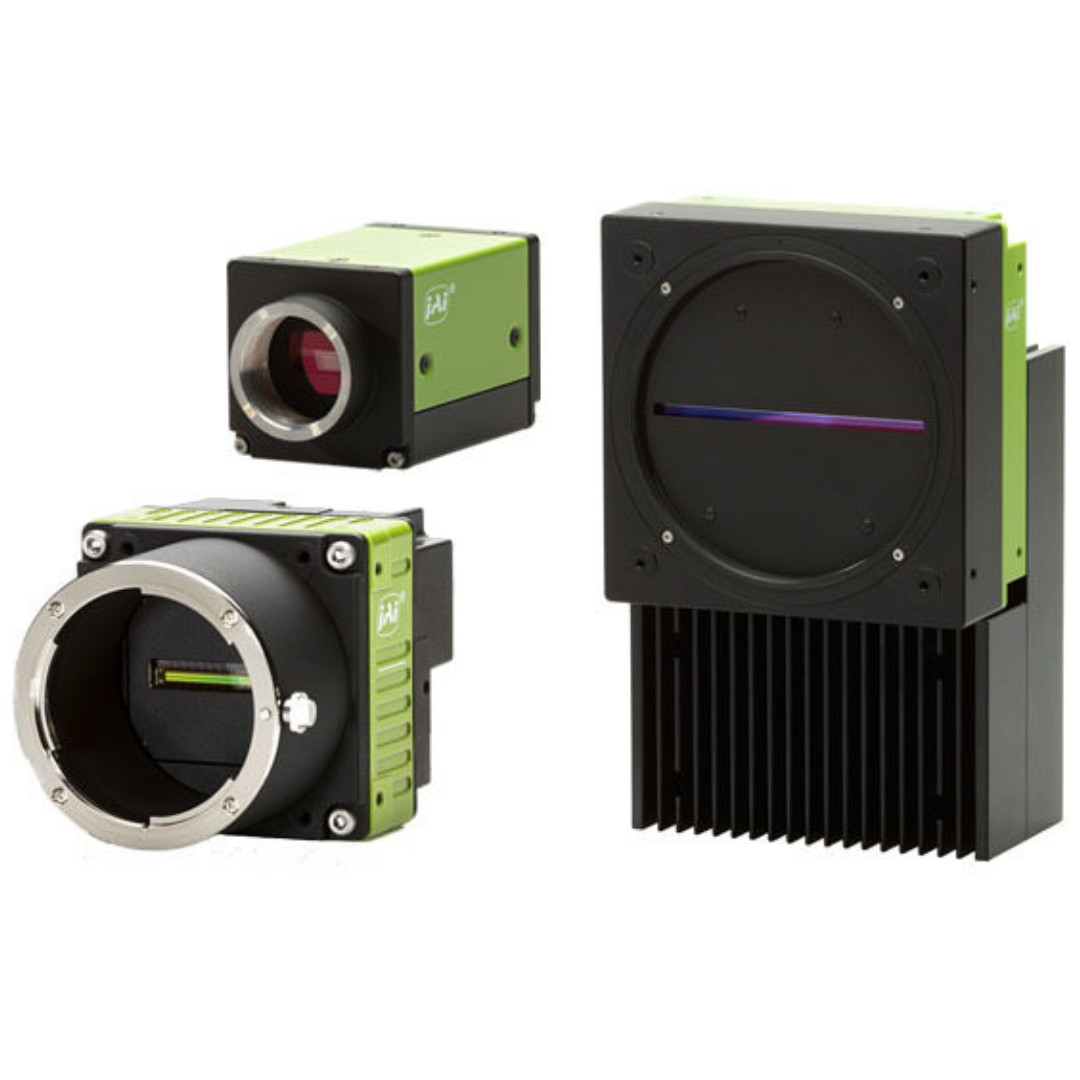

JAI CAMERAS – [SWEEP SERIES]

The JAI Sweep Series is a range of high-performance line scan cameras designed for demanding industrial imaging applications such as inspection, sorting, and web inspection. The series includes trilinear color, bilinear color, and monochrome models, offering high resolutions, fast line rates, and advanced image correction features.

Camera Types

Trilinear Color Cameras
- Single-sensor design with three RGB lines.
- Available resolutions: 2K (3 × 2048), 4K (3 × 4096), 8K (3 × 8192), and 16K (3 × 16384).
- High-speed interface options: 10GBASE-T, CoaXPress CXP-12, and Camera Link.
- Includes sub-pixel spatial compensation and keystone correction for accurate color alignment.
Bilinear Color Cameras
- Compact design with two sensor lines (RB and G).
- Resolution: 4K (2 × 4096).
- Interfaces: 5GBASE-T for high-bandwidth transfer or CoaXPress CXP-6 for low-latency, real-time processing.
Monochrome Cameras
- Available resolutions: 2K, 4K, 8K, and 16K.
- Line rates up to 277 kHz, among the fastest in the industry.
- Select models feature 2-step TDI (Time Delay Integration) to improve sensitivity and signal-to-noise ratio.

Key Technical Features

Large pixel sizes (7.5 µm, 7.0 µm, or 5.0 µm) for enhanced light sensitivity.
Pixel binning options for improved sensitivity in low-light conditions.
Versatile GPIO and trigger options for synchronization with lighting, encoders, and machine systems.
Direct rotary encoder connection with resume scanning and trigger delay functions (select models).
Region of Interest (ROI) to capture selected sensor areas and optimize processing.
Chromatic aberration correction and advanced color space conversion (RGB to HSI, CIE XYZ, sRGB, Adobe RGB, or custom formats) on color models.
Pixel sensitivity correction (DSNU/PRNU), Gamma, and LUT adjustments for improved image quality.
High mechanical durability with 80G shock resistance and 10G vibration resistance.

MODELS FOR SWEEP SERIES

#	Model	Color / Mono	Resolution	Line Rate	ROI	Interface	Sensor Name	Cell Size
1	SW-16000M-CXP4A	Mono	16K	277 kHz	Yes	CoaXPress-4-Lanes	GL5016	5.0 x 5.0 µm
2	SW-16000TL-CXP4A	Color	16K	100 kHz	Yes	CoaXPress-4-Lanes	GL5016	5.0 x 5.0 µm
3	SW-16001M-MCL	Mono	16K	50 kHz	Yes	Mini Camera Link	GL3516 - 2-Step TDI	3.5 x 3.5 µm
4	SW-2005M-5GE	Mono	2K	172 kHz	Yes	5 Gbps GigE Vision (PoE)	GL3504	7.0 x 7.0 µm
5	SW-2005M-5GE-NP	Mono	2K	172 kHz	Yes	5 Gbps GigE Vision (PoE)	GL3504	7.0 x 7.0 µm
6	SW-2005M-CXP	Mono	2K	172 kHz	Yes	CoaXPress-1-Lane (PoCXP)	GL3504	7.0 x 7.0 µm
7	SW-2005TL-5GE	Color	2K	44 kHz	Yes	5 Gbps GigE Vision (PoE)	GL3504	7.0 x 7.0 µm
8	SW-2005TL-5GE-NP	Color	2K	44 kHz	Yes	5 Gbps GigE Vision (PoE)	GL3504	7.0 x 7.0 µm
9	SW-2005TL-CXP	Color	2K	44 kHz	Yes	CoaXPress-1-Lane (PoCXP)	GL3504	7.0 x 7.0 µm
10	SW-4000M-PMCL	Mono	4K	200 kHz	N/A	Mini Camera Link (PoCL)	Custom	7.5 x 7.5 µm
11	SW-4000TL-10GE	Color	4K	66 kHz	Yes	10 Gbps GigE Vision	Custom	7.5 x 7.5 µm
12	SW-4000TL-PMCL	Color	4K	66 kHz	Yes	Mini Camera Link (PoCL)	Custom	7.5 x 7.5 µm
13	SW-4000TL-SFP	Color	4K	66 kHz	Yes	SFP+ over 10 Gigabit Ethernet	Custom	7.5 x 7.5 µm
14	SW-4005BL-5GE	Color	4K	42 kHz	Yes	GigE Vision	GL3504	3.5 x 3.5 µm
15	SW-4005BL-5GE-NP	Color	4K	42 kHz	Yes	GigE Vision	GL3504	3.5 x 3.5 µm
16	SW-4005BL-CXP	Color	4K	42 kHz	Yes	CoaXPress-1-Lane (PoCXP)	GL3504	3.5 x 3.5 µm
17	SW-4005M-5GE	Mono	4K	84 kHz	Yes	GigE Vision	GL3504	3.5 x 3.5 µm
18	SW-4005M-5GE-NP	Mono	4K	84 kHz	Yes	GigE Vision	GL3504	3.5 x 3.5 µm
19	SW-4005M-CXP	Mono	4K	84 kHz	Yes	CoaXPress-1-Lane (PoCXP)	GL3504	3.5 x 3.5 µm
20	SW-8000M-PMCL	Mono	8K	100 kHz	N/A	Mini Camera Link (PoCL)	Custom	3.75 x 5.78 µm
21	SW-8001M-MCL	Mono	8K	100 kHz	Yes	Mini Camera Link	GL7008 - 2-Step TDI	7.0 x 7.0 µm
22	SW-8001TL-MCL	Color	8K	34 kHz	Yes	Mini Camera Link	GL7008	7.0 x 7.0 µm
