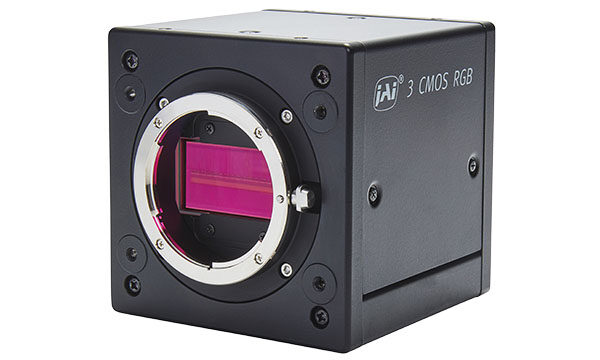

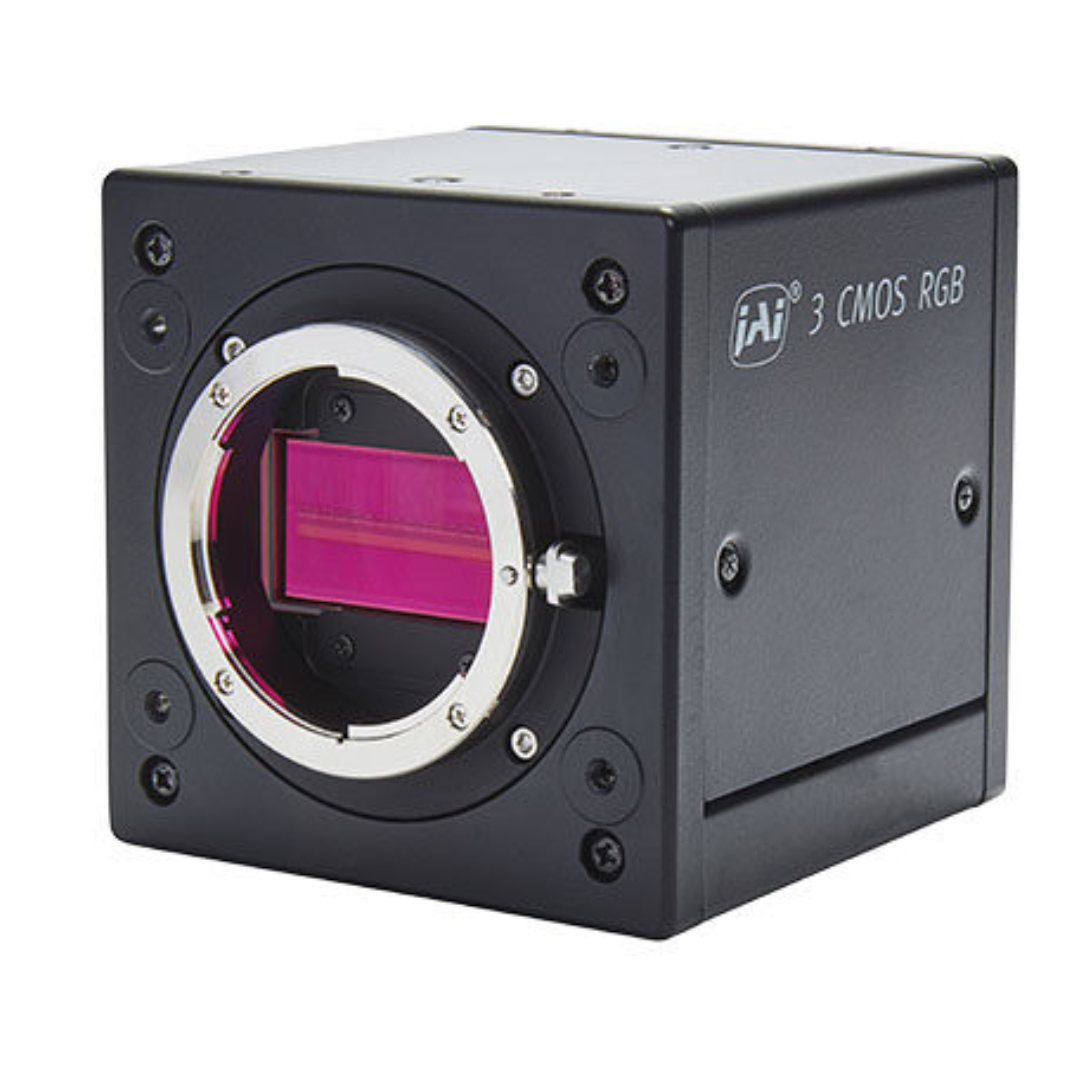

The Sweep+ Series consists of 3-sensor (RGB) and 4-sensor (RGB + NIR or RGB + SWIR) prism-based line scan cameras designed for industrial machine vision and high-speed inspection.
The cameras use dichroic beam-splitter prism technology to align multiple CMOS sensors to a single optical path, ensuring precise channel alignment and eliminating spatial offset issues common in trilinear cameras. This makes them well suited for belt sorting and free-fall inspection, where object speed and direction may vary.
Key technical features
Typical applications: high-speed web inspection (paper, plastic, textiles, film), print inspection, food processing, and industrial sorting systems.
| # | Model | Color / Mono | Resolution | Line Rate | ROI | Interface | Sensor Name | Cell Size |
|---|---|---|---|---|---|---|---|---|
| 1 | LQ-201-CL | Multispectral | 2K | 33 kHz | N/A | Camera Link | N/A | 14.0 x 14.0 µm |
| 2 | LQ-401-CL | Multispectral | 4K | 18 kHz | N/A | Camera Link | N/A | 7.0 x 7.0 µm |
| 3 | LT-200-CL | Color | 2K | 30 kHz | N/A | Camera Link | N/A | 14.0 x 14.0 µm |
| 4 | LT-400-CL | Color | 4K | 16 kHz | N/A | Camera Link | N/A | 7.0 x 7.0 µm |
| 5 | SW-2001Q-CL | Multispectral | 2K | 19 kHz | N/A | Camera Link | N/A | 14.0 x 14.0 µm |
| 6 | SW-2001T-CL | Color | 2K | 19 kHz | N/A | Camera Link | N/A | 14.0 x 14.0 µm |
| 7 | SW-4000Q-10GE | Multispectral | 4K | 72 kHz | Yes | 10 Gbps GigE Vision | Custom | 7.5 x 7.5 µm or 7.5 x 10.5 µm |
| 8 | SW-4000Q-SFP | Multispectral | 4K | 72 kHz | Yes | SFP+ over 10 Gigabit Ethernet | Custom | 7.5 x 7.5 µm or 7.5 x 10.5 µm |
| 9 | SW-4000T-10GE | Color | 4K | 97 kHz | Yes | 10 Gbps GigE Vision | Custom | 7.5 x 7.5 µm or 7.5 x 10.5 µm |
| 10 | SW-4000T-CXPA | Color | 4K | 97 kHz | Yes | CoaXPress-1-Lane (PoCXP) | Custom | 7.5 x 7.5 µm or 7.5 x 10.5 µm |
| 11 | SW-4000T-MCL | Color | 4K | 66 kHz | N/A | Mini Camera Link | Custom | 7.5 x 7.5 µm or 7.5 x 10.5 µm |
| 12 | SW-4000T-SFP | Color | 4K | 97 kHz | Yes | SFP+ over 10 Gigabit Ethernet | Custom | 7.5 x 7.5 µm or 7.5 x 10.5 µm |
| 13 | SW-4010Q-MCL | Multispectral | 4K | 39 kHz | Yes | Mini Camera Link | Custom | 7.5 x 7.5 µm / 25.0 x 25.0 µm |
| 14 | SW-8000Q-10GE | Multispectral | 8K | 36 kHz | Yes | 10 Gbps GigE Vision | Custom | 3.75 x 5.78 µm |
| 15 | SW-8000Q-SFP | Multispectral | 8K | 36 kHz | Yes | SFP+ over 10 Gigabit Ethernet | Custom | 3.75 x 5.78 µm |
| 16 | SW-8000T-10GE | Color | 8K | 49 kHz | Yes | 10 Gbps GigE Vision | Custom | 3.75 x 5.78 µm |
| 17 | SW-8000T-CXPA | Color | 8K | 49 kHz | Yes | CoaXPress-1-Lane (PoCXP) | Custom | 3.75 x 5.78 µm |
| 18 | SW-8000T-SFP | Color | 8K | 49 kHz | Yes | SFP+ over 10 Gigabit Ethernet | Custom | 3.75 x 5.78 µm |
Thermoelectric Cooling (TEC) TEC is dynamically controlled to maintain stable sensor temp. Quickly compensates for varying ambient temperatures Creates reproducible measuring results Long exposure times without induced thermal noise.
