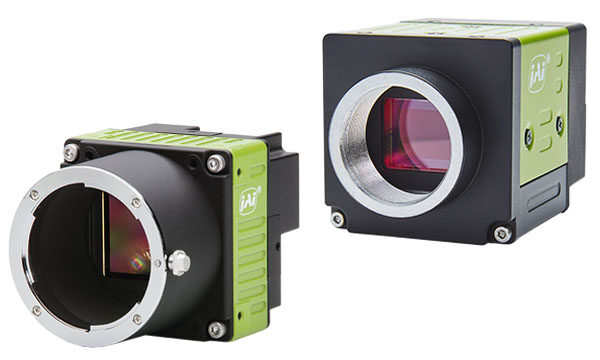

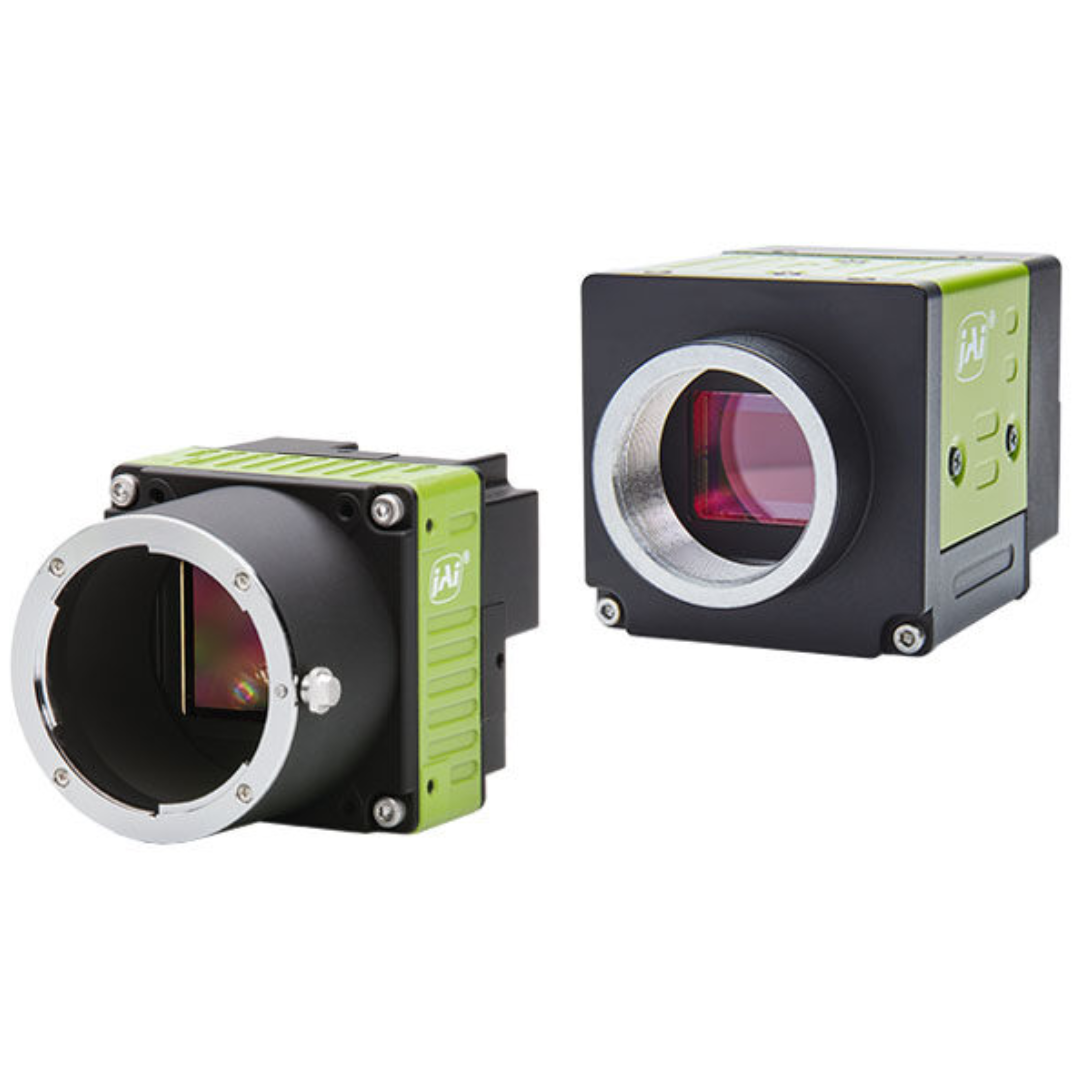

High-throughput, high-quality area-scan cameras optimized for machine vision and outdoor imaging where speed and image quality are critical.
Key points:
– Performance: Latest CMOS imagers — up to ~10× faster than CCDs (e.g., 45 MP >50 fps; some 5 MP ≥250 fps). ROI raises frame rates further.
– Image quality: Low noise, high pixel uniformity, no rolling-shutter distortion (global shutter), large low-noise pixels for good low-light sensitivity.
– Advanced features: In-camera pattern correction, multi-ROI, true correlated double sampling (selected models), combined analog/digital gain control (selected models), high dynamic range modes (selected models).
– Robustness: Industrial-grade construction, vibration and shock resistant — suitable for 24/7 industrial use and outdoor applications (sports, traffic, surveillance).
– Value: High megapixels-per-second throughput with attractive pricing for high-performance machine-vision systems.
| # | Model | Color/Mono | Light Spectrum | Resolution (MP) | Resolution (WxH) | Frame Rate | Interface | Sensor | Cell Size |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SP-12000C-CXP4 | Color | Visible | 12 | 4096 x 3072 px | 189 fps | CoaXPress-4-Lanes (PoCXP) | CMV12000 | 5.5 x 5.5 µm |
| 2 | SP-12000M-CXP4 | Mono | Visible | 12 | 4096 x 3072 px | 189 fps | CoaXPress-4-Lanes (PoCXP) | CMV12000 | 5.5 x 5.5 µm |
| 3 | SP-12400C-PMCL | Color | Visible | 12.4 | 4112 x 3008 px | 64 fps | Mini Camera Link (PoCL) | IMX253 | 3.45 x 3.45 µm |
| 4 | SP-12400M-PMCL | Mono | Visible + NIR | 12.4 | 4112 x 3008 px | 64 fps | Mini Camera Link (PoCL) | IMX253 | 3.45 x 3.45 µm |
| 5 | SP-12401C-PGE | Color | Visible | 12.4 | 4088 x 3000 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX304 | 3.45 x 3.45 µm |
| 6 | SP-12401C-USB | Color | Visible | 12.4 | 4088 x 3000 px | 23 fps | USB3 Vision (PoUSB) | IMX304 | 3.45 x 3.45 µm |
| 7 | SP-12401M-PGE | Mono | Visible + NIR | 12.4 | 4112 x 3008 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX304 | 3.45 x 3.45 µm |
| 8 | SP-12401M-USB | Mono | Visible + NIR | 12.4 | 4112 x 3008 px | 23 fps | USB3 Vision (PoUSB) | IMX304 | 3.45 x 3.45 µm |
| 9 | SP-20000C-CXP2 | Color | Visible | 20 | 5120 x 3840 px | 30 fps | CoaXPress-2-Lanes (PoCXP) | CMV20000 | 6.4 x 6.4 µm |
| 10 | SP-20000C-PMCL | Color | Visible | 20 | 5120 x 3840 px | 30 fps | Mini Camera Link (PoCL) | CMV20000 | 6.4 x 6.4 µm |
| 11 | SP-20000C-USB | Color | Visible | 20 | 5120 x 3840 px | 16 fps | USB3 Vision | CMV20000 | 6.4 x 6.4 µm |
| 12 | SP-20000M-CXP2 | Mono | Visible + NIR | 20 | 5120 x 3840 px | 30 fps | CoaXPress-2-Lanes (PoCXP) | CMV20000 | 6.4 x 6.4 µm |
| 13 | SP-20000M-PMCL | Mono | Visible + NIR | 20 | 5120 x 3840 px | 30 fps | Mini Camera Link (PoCL) | CMV20000 | 6.4 x 6.4 µm |
| 14 | SP-20000M-USB | Mono | Visible + NIR | 20 | 5120 x 3840 px | 16 fps | USB3 Vision | CMV20000 | 6.4 x 6.4 µm |
| 15 | SP-25000C-CXP4A | Color | Visible | 26.2 | 5120 x 5120 px | 150 fps | CoaXPress-4-Lanes (PoCXP) | GMAX0505 | 2.5 x 2.5 µm |
| 16 | SP-25000M-CXP4A | Mono | Visible | 26.2 | 5120 x 5120 px | 150 fps | CoaXPress-4-Lanes (PoCXP) | GMAX0505 | 2.5 x 2.5 µm |
| 17 | SP-45000C-CXP4 | Color | Visible | 45 | 8192 x 5460 px | 51 fps | CoaXPress-4-Lanes | XGS 45000 | 3.2 x 3.2 µm |
| 18 | SP-45000C-CXP4A | Color | Visible | 45 | 8192 x 5460 px | 52 fps | CoaXPress-4-Lanes | XGS 45000 | 3.2 x 3.2 µm |
| 19 | SP-45000M-CXP4 | Mono | Visible + NIR | 45 | 8192 x 5460 px | 51 fps | CoaXPress-4-Lanes (PoCXP) | XGS 45000 | 3.2 x 3.2 µm |
| 20 | SP-45000M-CXP4A | Mono | Visible + NIR | 45 | 8192 x 5460 px | 52 fps | CoaXPress-4-Lanes | XGS 45000 | 3.2 x 3.2 µm |
| 21 | SP-45001C-CXP2A | Color | Visible | 45 | 8192 x 5460 px | 38 fps | CoaXPress-2-Lanes (PoCXP) | XGS 45000 | 3.2 x 3.2 µm |
| 22 | SP-45001C-CXP4 | Color | Visible | 45 | 8192 x 5460 px | 38 fps | CoaXPress-4-Lanes (PoCXP) | XGS 45000 | 3.2 x 3.2 µm |
| 23 | SP-45001M-CXP2A | Mono | Visible | 45 | 8192 x 5460 px | 38 fps | CoaXPress-2-Lanes (PoCXP) | XGS 45000 | 3.2 x 3.2 µm |
| 24 | SP-45001M-CXP4 | Mono | Visible | 45 | 8192 x 5460 px | 38 fps | CoaXPress-4-Lanes | XGS 45000 | 3.2 x 3.2 µm |
| 25 | SP-5000C-CXP2 | Color | Visible | 5 | 2560 x 2048 px | 211 fps | CoaXPress-2-Lanes (PoCXP) | Lince5M | 5.0 x 5.0 µm |
| 26 | SP-5000C-CXP4 | Color | Visible | 5 | 2560 x 2048 px | 253 fps | CoaXPress-4-Lanes (PoCXP) | Lince5M | 5.0 x 5.0 µm |
| 27 | SP-5000C-PMCL | Color | Visible | 5 | 2560 x 2048 px | 137 fps | Mini Camera Link (PoCL) | Lince5M | 5.0 x 5.0 µm |
| 28 | SP-5000C-USB | Color | Visible | 5 | 2560 x 2048 px | 62 fps | USB3 Vision (PoUSB) | Lince5M | 5.0 x 5.0 µm |
| 29 | SP-5000M-CXP2 | Mono | Visible + NIR | 5 | 2560 x 2048 px | 211 fps | CoaXPress-2-Lanes (PoCXP) | Lince5M | 5.0 x 5.0 µm |
| 30 | SP-5000M-CXP4 | Mono | Visible + NIR | 5 | 2560 x 2048 px | 253 fps | CoaXPress-4-Lanes (PoCXP) | Lince5M | 5.0 x 5.0 µm |
| 31 | SP-5000M-PMCL | Mono | Visible + NIR | 5 | 2560 x 2048 px | 137 fps | Mini Camera Link (PoCL) | Lince5M | 5.0 x 5.0 µm |
| 32 | SP-5000M-USB | Mono | Visible + NIR | 5 | 2560 x 2048 px | 62 fps | USB3 Vision (PoUSB) | Lince5M | 5.0 x 5.0 µm |
Thermoelectric Cooling (TEC) TEC is dynamically controlled to maintain stable sensor temp. Quickly compensates for varying ambient temperatures Creates reproducible measuring results Long exposure times without induced thermal noise.
