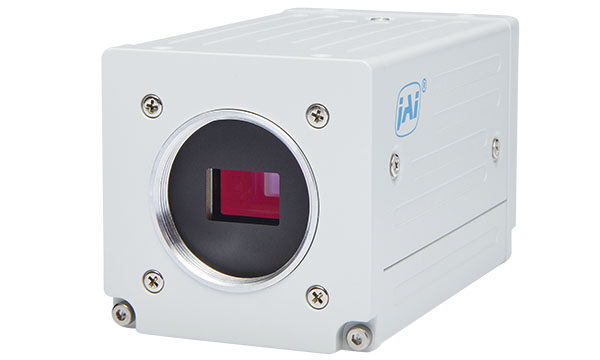

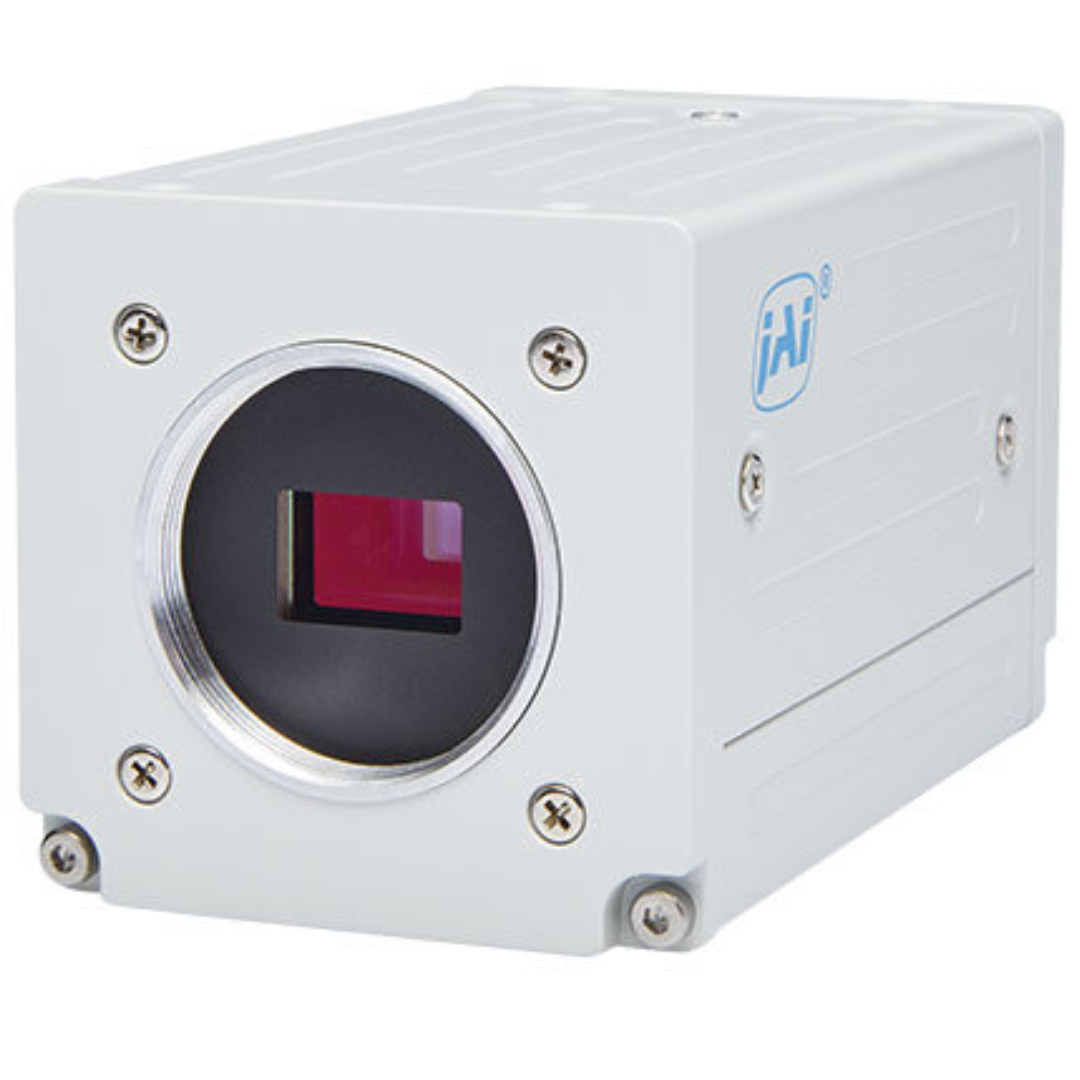

The Apex Medical & Life Sciences Solutions is a series of 3-CMOS area scan cameras designed for medical imaging and life sciences applications. The system uses multi-sensor prism technology to deliver improved color fidelity and spatial accuracy compared to Bayer-pattern color cameras.
The cameras use a USB3 Vision interface, providing reliable high-speed data transfer and plug-and-play compatibility.
Fully integrated with microscopy imaging platforms:
| # | Model | Product Line | Type | Color/Mono | Light Spectrum | Resolution (MP) | Resolution (WxH) | Frame Rate | ROI | Interface | Sensors | Sensor Name | Cell Size (WxH) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | AP-1600T-USB-LSX | Apex Medical Solutions | Area Scan | Color | Visible + NIR | 1.6 | 1456 x 1088 px | 79 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX273 | 3.45 x 3.45 µm |
| 2 | AP-3200T-USB-LS | Apex Medical Solutions | Area Scan | Color | Visible + NIR | 3.2 | 2064 x 1544 px | 38 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX265 | 3.45 x 3.45 µm |
| 3 | AP-3200T-USB-LSX | Apex Medical Solutions | Area Scan | Color | Visible + NIR | 3.2 | 2064 x 1544 px | 38 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX265 | 3.45 x 3.45 µm |
| 4 | AP-1600T-USB | Apex Series / Apex Medical Solutions | Area Scan | Color | Visible + NIR | 1.6 | 1456 x 1088 px | 79 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX273 | 3.45 x 3.45 µm |
| 5 | AP-3200T-USB | Apex Series / Apex Medical Solutions | Area Scan | Color | Visible + NIR | 3.2 | 2064 x 1544 px | 38 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX265 | 3.45 x 3.45 µm |
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
![SVS-VISTEK HR [CoaXPress]](https://www.jm-vistec.com/wp-content/uploads/2023/01/SVS-HR-300x300.png)
Latest Technology And Fast Data Transfer Speeds
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
CoaXPress was developed to cope with the increasing bandwidths of new sensor generations. Up to 6.25 GBit/s or 12.5 GBit/s can be transmitted per line. SVS-Vistek supplies CoaXPress cameras with four CoaXPress-6 or CoaXPress-12 lines and thus provides a data bandwidth of 25 GBit/s or 50 GBit/s.
The HR series with CoaXPress is equipped with modern, fast and high-resolution CMOS sensors. With outstanding frame rates, the HR offers a wide range of industrial hardware and software features.
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
With its thin, long cables and extremely high bandwidth, CoaXPress offers the perfect interface for high-resolution and very fast CMOS sensors
Demanding applications in quality assurance and plant engineering benefit from this combination of maximum resolution and maximum speed.
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● Single-board cameras
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● With trigger and I/O
● Single-board cameras
