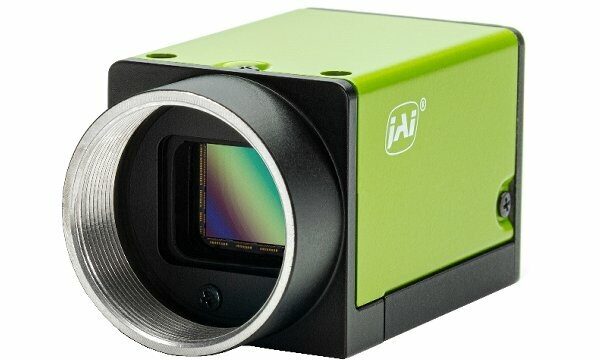

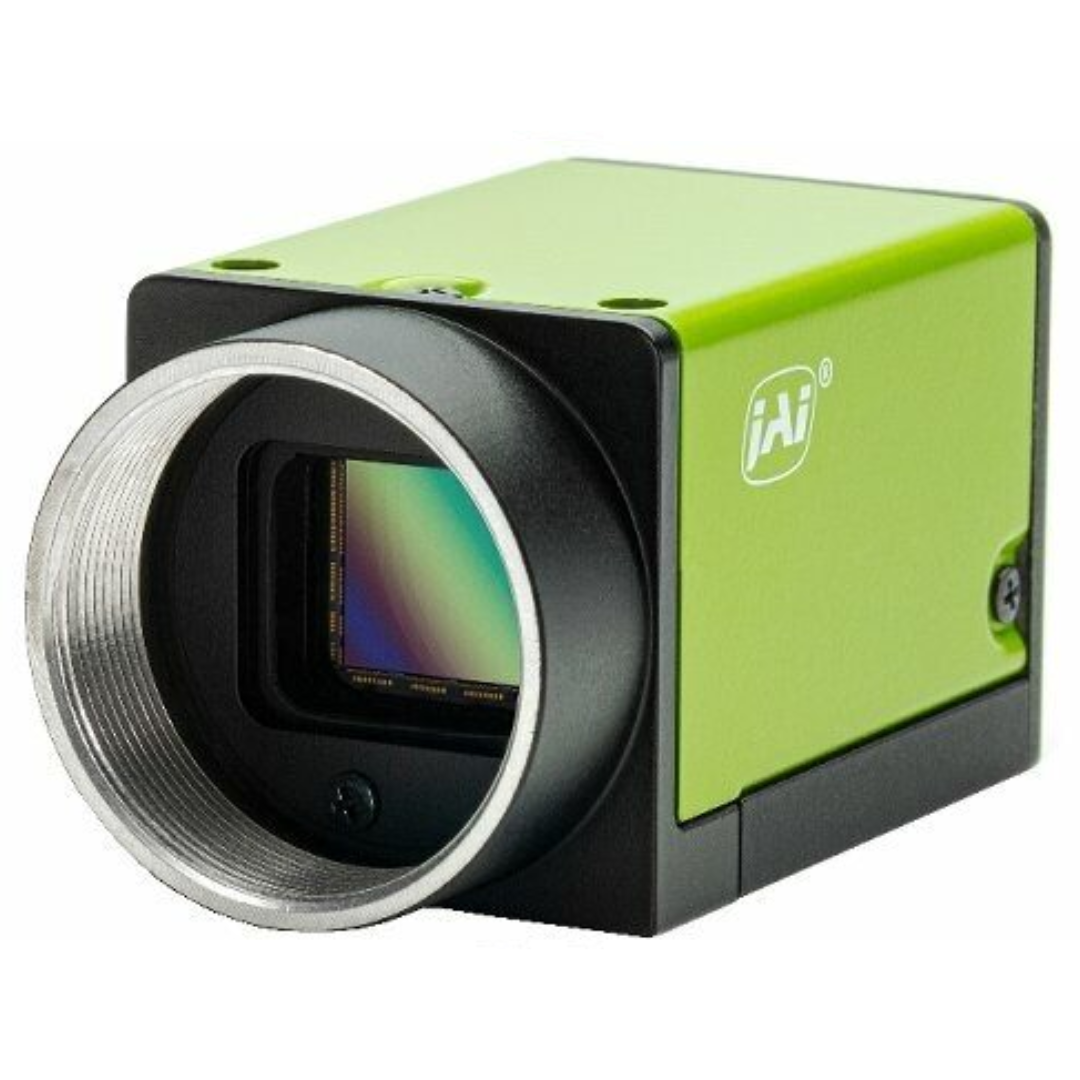

Compact, industrial-grade area-scan cameras offering strong image quality, reliability, and value for machine vision.
Key points:
– Sensors: Sony Pregius / Pregius S global-shutter and Starvis rolling-shutter options.
– Resolutions: 2.3–24.5 MP (color and mono).
– Interfaces: USB3 Vision, GigE Vision (1G or 5G), CoaXPress.
– Ruggedness: 80G shock / 10G vibration, good thermal dissipation, dust-reduction measures.
– Size & mounting: compact (29×29 mm, lengths 51.5–55 mm), dual mounting-hole spacings (20 & 21 mm).
– Features: ROI, image flip/mirror, 8/10/12-bit output, blemish compensation, shading correction, two sequencer modes, user-customizable auto-exposure (ALC).
– Extra tech: pixel-rescaling (Xscale) on Pregius S; lossless compression (Xpress) on Pregius S GigE.
– Support & warranty: free SDK/API for Windows/Linux/ARM, collection of pre-qualified C-mount lenses, six-year warranty; very low field-failure rates.
| # | Model | Color/Mono | Resolution (MP) | Resolution (WxH) | Frame Rate | Interface | Sensor | Cell Size |
|---|---|---|---|---|---|---|---|---|
| 1 | GOX-12401C-PGE | Color | 12.3 | 4096 x 3000 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX304 | 3.45 x 3.45 µm |
| 2 | GOX-12401C-USB | Color | 12.3 | 4096 x 3000 px | 23 fps | USB3 Vision (PoUSB) | IMX304 | 3.45 x 3.45 µm |
| 3 | GOX-12401M-PGE | Mono | 12.3 | 4096 x 3000 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX304 | 3.45 x 3.45 µm |
| 4 | GOX-12401M-USB | Mono | 12.3 | 4096 x 3000 px | 23 fps | USB3 Vision (PoUSB) | IMX304 | 3.45 x 3.45 µm |
| 5 | GOX-12405C-5GE | Color | 12.4 | 4128 x 3008 px | 43 fps | 5 Gbps GigE Vision (PoE) | IMX545 Pregius S | 2.74 x 2.74 µm |
| 6 | GOX-12405C-CXP | Color | 12.4 | 4128 x 3008 px | 47 fps | CoaXPress-1-Lane (PoCXP) | IMX545 Pregius S | 2.74 x 2.74 µm |
| 7 | GOX-12405C-PGE | Color | 12.4 | 4128 x 3008 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX545 Pregius S | 2.74 x 2.74 µm |
| 8 | GOX-12405M-5GE | Mono | 12.4 | 4128 x 3008 px | 43 fps | 5 Gbps GigE Vision (PoE) | IMX545 Pregius S | 2.74 x 2.74 µm |
| 9 | GOX-12405M-CXP | Mono | 12.4 | 4128 x 3008 px | 47 fps | CoaXPress-1-Lane (PoCXP) | IMX545 Pregius S | 2.74 x 2.74 µm |
| 10 | GOX-12405M-PGE | Mono | 12.4 | 4128 x 3008 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX545 Pregius S | 2.74 x 2.74 µm |
| 11 | GOX-12409C-PGE | Color | 12.2 | 4016 x 3036 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX226 (Rolling) | 1.85 x 1.85 µm |
| 12 | GOX-12409M-PGE | Mono | 12.2 | 4016 x 3036 px | 9 fps | GigE Vision 1-Cable (PoE) | IMX226 (Rolling) | 1.85 x 1.85 µm |
| 13 | GOX-16205C-5GE | Color | 16.2 | 5328 x 3040 px | 33 fps | 5 Gbps GigE Vision (PoE) | IMX542 Pregius S | 2.74 x 2.74 µm |
| 14 | GOX-16205C-CXP | Color | 16.2 | 5328 x 3040 px | 36 fps | CoaXPress-1-Lane (PoCXP) | IMX542 Pregius S | 2.74 x 2.74 µm |
| 15 | GOX-16205C-PGE | Color | 16.2 | 5328 x 3040 px | 7 fps | GigE Vision 1-Cable (PoE) | IMX542 Pregius S | 2.74 x 2.74 µm |
| 16 | GOX-16205M-5GE | Mono | 16.2 | 5328 x 3040 px | 33 fps | 5 Gbps GigE Vision (PoE) | IMX542 Pregius S | 2.74 x 2.74 µm |
| 17 | GOX-16205M-CXP | Mono | 16.2 | 5328 x 3040 px | 36 fps | CoaXPress-1-Lane (PoCXP) | IMX542 Pregius S | 2.74 x 2.74 µm |
| 18 | GOX-16205M-PGE | Mono | 16.2 | 5328 x 3040 px | 7 fps | GigE Vision 1-Cable (PoE) | IMX542 Pregius S | 2.74 x 2.74 µm |
| 19 | GOX-20405C-5GE | Color | 20.3 | 4512 x 4512 px | 27 fps | 5 Gbps GigE Vision (PoE) | IMX541 Pregius S | 2.74 x 2.74 µm |
| 20 | GOX-20405C-CXP | Color | 20.3 | 4512 x 4512 px | 29 fps | CoaXPress-1-Lane (PoCXP) | IMX541 Pregius S | 2.74 x 2.74 µm |
| 21 | GOX-20405C-PGE | Color | 20.3 | 4512 x 4512 px | 5 fps | GigE Vision 1-Cable (PoE) | IMX541 Pregius S | 2.74 x 2.74 µm |
| 22 | GOX-20405M-5GE | Mono | 20.3 | 4512 x 4512 px | 27 fps | 5 Gbps GigE Vision (PoE) | IMX541 Pregius S | 2.74 x 2.74 µm |
| 23 | GOX-20405M-CXP | Mono | 20.3 | 4512 x 4512 px | 29 fps | CoaXPress-1-Lane (PoCXP) | IMX541 Pregius S | 2.74 x 2.74 µm |
| 24 | GOX-20405M-PGE | Mono | 20.3 | 4512 x 4512 px | 5 fps | GigE Vision 1-Cable (PoE) | IMX541 Pregius S | 2.74 x 2.74 µm |
| 25 | GOX-20409C-PGE | Color | 20 | 5472 x 3648 px | 5 fps | GigE Vision 1-Cable (PoE) | IMX183 (Rolling) | 2.4 x 2.4 µm |
| 26 | GOX-20409M-PGE | Mono | 20 | 5472 x 3648 px | 5 fps | GigE Vision 1-Cable (PoE) | IMX183 (Rolling) | 2.4 x 2.4 µm |
| 27 | GOX-2402C-PGE | Color | 2.3 | 1920 x 1200 px | 50 fps | GigE Vision 1-Cable (PoE) | IMX392 | 3.45 x 3.45 µm |
| 28 | GOX-2402C-USB | Color | 2.3 | 1920 x 1200 px | 162 fps | USB3 Vision (PoUSB) | IMX392 | 3.45 x 3.45 µm |
| 29 | GOX-2402M-PGE | Mono | 2.3 | 1920 x 1200 px | 50 fps | GigE Vision 1-Cable (PoE) | IMX392 | 3.45 x 3.45 µm |
| 30 | GOX-2402M-USB | Mono | 2.3 | 1920 x 1200 px | 162 fps | USB3 Vision (PoUSB) | IMX392 | 3.45 x 3.45 µm |
| 31 | GOX-24505C-5GE | Color | 24.5 | 5328 x 4608 px | 22 fps | 5 Gbps GigE Vision (PoE) | IMX540 Pregius S | 2.74 x 2.74 µm |
| 32 | GOX-24505C-CXP | Color | 24.5 | 5328 x 4608 px | 24 fps | CoaXPress-1-Lane (PoCXP) | IMX540 Pregius S | 2.74 x 2.74 µm |
| 33 | GOX-24505C-PGE | Color | 24.5 | 5328 x 4608 px | 4 fps | GigE Vision 1-Cable (PoE) | IMX540 Pregius S | 2.74 x 2.74 µm |
| 34 | GOX-24505M-5GE | Mono | 24.5 | 5328 x 4608 px | 22 fps | 5 Gbps GigE Vision (PoE) | IMX540 Pregius S | 2.74 x 2.74 µm |
| 35 | GOX-24505M-CXP | Mono | 24.5 | 5328 x 4608 px | 24 fps | CoaXPress-1-Lane (PoCXP) | IMX540 Pregius S | 2.74 x 2.74 µm |
| 36 | GOX-24505M-PGE | Mono | 24.5 | 5328 x 4608 px | 4 fps | GigE Vision 1-Cable (PoE) | IMX540 Pregius S | 2.74 x 2.74 µm |
| 37 | GOX-3200C-USB | Color | 3.2 | 2048 x 1536 px | 119 fps | USB3 Vision (PoUSB) | IMX252 | 3.45 x 3.45 µm |
| 38 | GOX-3200M-USB | Mono | 3.2 | 2048 x 1536 px | 119 fps | USB3 Vision (PoUSB) | IMX252 | 3.45 x 3.45 µm |
| 39 | GOX-3201C-PGE | Color | 3.2 | 2048 x 1536 px | 36 fps | GigE Vision 1-Cable (PoE) | IMX265 | 3.45 x 3.45 µm |
| 40 | GOX-3201C-USB | Color | 3.2 | 2048 x 1536 px | 55 fps | USB3 Vision (PoUSB) | IMX265 | 3.45 x 3.45 µm |
| 41 | GOX-3201M-PGE | Mono | 3.2 | 2048 x 1536 px | 36 fps | GigE Vision 1-Cable (PoE) | IMX265 | 3.45 x 3.45 µm |
| 42 | GOX-3201M-USB | Mono | 3.2 | 2048 x 1536 px | 55 fps | USB3 Vision (PoUSB) | IMX265 | 3.45 x 3.45 µm |
| 43 | GOX-5102C-USB | Color | 5 | 2448 x 2048 px | 74 fps | USB3 Vision (PoUSB) | IMX250 | 3.45 x 3.45 µm |
| 44 | GOX-5102M-USB | Mono | 5 | 2448 x 2048 px | 74 fps | USB3 Vision (PoUSB) | IMX250 | 3.45 x 3.45 µm |
| 45 | GOX-5103C-PGE | Color | 5 | 2448 x 2048 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX264 | 3.45 x 3.45 µm |
| 46 | GOX-5103C-USB | Color | 5 | 2448 x 2048 px | 35 fps | USB3 Vision (PoUSB) | IMX264 | 3.45 x 3.45 µm |
| 47 | GOX-5103M-PGE | Mono | 5 | 2448 x 2048 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX264 | 3.45 x 3.45 µm |
| 48 | GOX-5103M-USB | Mono | 5 | 2448 x 2048 px | 35 fps | USB3 Vision (PoUSB) | IMX264 | 3.45 x 3.45 µm |
| 49 | GOX-5105C-5GE | Color | 5.1 | 2472 x 2064 px | 103 fps | 5 Gbps GigE Vision (PoE) | IMX547 Pregius S | 2.74 x 2.74 µm |
| 50 | GOX-5105C-CXP | Color | 5.1 | 2472 x 2064 px | 112 fps | CoaXPress-1-Lane (PoCXP) | IMX547 Pregius S | 2.74 x 2.74 µm |
| 51 | GOX-5105C-PGE | Color | 5.1 | 2472 x 2064 px | 23 fps | GigE Vision 1-Cable (PoE) | IMX547 Pregius S | 2.74 x 2.74 µm |
| 52 | GOX-5105M-5GE | Mono | 5.1 | 2472 x 2064 px | 103 fps | 5 Gbps GigE Vision (PoE) | IMX547 Pregius S | 2.74 x 2.74 µm |
| 53 | GOX-5105M-CXP | Mono | 5.1 | 2472 x 2064 px | 112 fps | CoaXPress-1-Lane (PoCXP) | IMX547 Pregius S | 2.74 x 2.74 µm |
| 54 | GOX-5105M-PGE | Mono | 5.1 | 2472 x 2064 px | 23 fps | GigE Vision 1-Cable (PoE) | IMX547 Pregius S | 2.74 x 2.74 µm |
| 55 | GOX-6409C-PGE | Color | 6.3 | 3088 x 2064 px | 18 fps | GigE Vision 1-Cable (PoE) | IMX178 (Rolling) | 2.4 x 2.4 µm |
| 56 | GOX-6409M-PGE | Mono | 6.3 | 3088 x 2064 px | 18 fps | GigE Vision 1-Cable (PoE) | IMX178 (Rolling) | 2.4 x 2.4 µm |
| 57 | GOX-8105C-5GE | Color | 8.1 | 2856 x 2848 px | 66 fps | 5 Gbps GigE Vision (PoE) | IMX546 Pregius S | 2.74 x 2.74 µm |
| 58 | GOX-8105C-CXP | Color | 8.1 | 2856 x 2848 px | 71 fps | CoaXPress-1-Lane (PoCXP) | IMX546 Pregius S | 2.74 x 2.74 µm |
| 59 | GOX-8105C-PGE | Color | 8.1 | 2856 x 2848 px | 14 fps | GigE Vision 1-Cable (PoE) | IMX546 Pregius S | 2.74 x 2.74 µm |
| 60 | GOX-8105M-5GE | Mono | 8.1 | 2856 x 2848 px | 66 fps | 5 Gbps GigE Vision (PoE) | IMX546 Pregius S | 2.74 x 2.74 µm |
| 61 | GOX-8105M-CXP | Mono | 8.1 | 2856 x 2848 px | 71 fps | CoaXPress-1-Lane (PoCXP) | IMX546 Pregius S | 2.74 x 2.74 µm |
| 62 | GOX-8105M-PGE | Mono | 8.1 | 2856 x 2848 px | 14 fps | GigE Vision 1-Cable (PoE) | IMX546 Pregius S | 2.74 x 2.74 µm |
| 63 | GOX-8901C-PGE | Color | 8.9 | 4096 x 2160 px | 12 fps | GigE Vision 1-Cable (PoE) | IMX267 | 3.45 x 3.45 µm |
| 64 | GOX-8901C-USB | Color | 8.9 | 4096 x 2160 px | 32 fps | USB3 Vision (PoUSB) | IMX267 | 3.45 x 3.45 µm |
| 65 | GOX-8901M-PGE | Mono | 8.9 | 4096 x 2160 px | 12 fps | GigE Vision 1-Cable (PoE) | IMX267 | 3.45 x 3.45 µm |
| 66 | GOX-8901M-USB | Mono | 8.9 | 4096 x 2160 px | 32 fps | USB3 Vision (PoUSB) | IMX267 | 3.45 x 3.45 µm |
Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).
Key Features:
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
Features:
● Compatible to UVC and USB3 Vision
● Sony Pregius and STARVIS sensors
● Onboard image pre-processing
