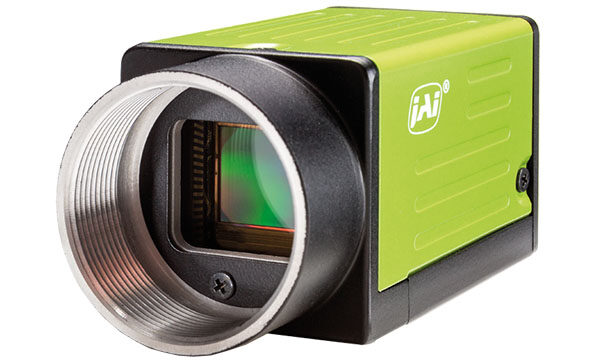

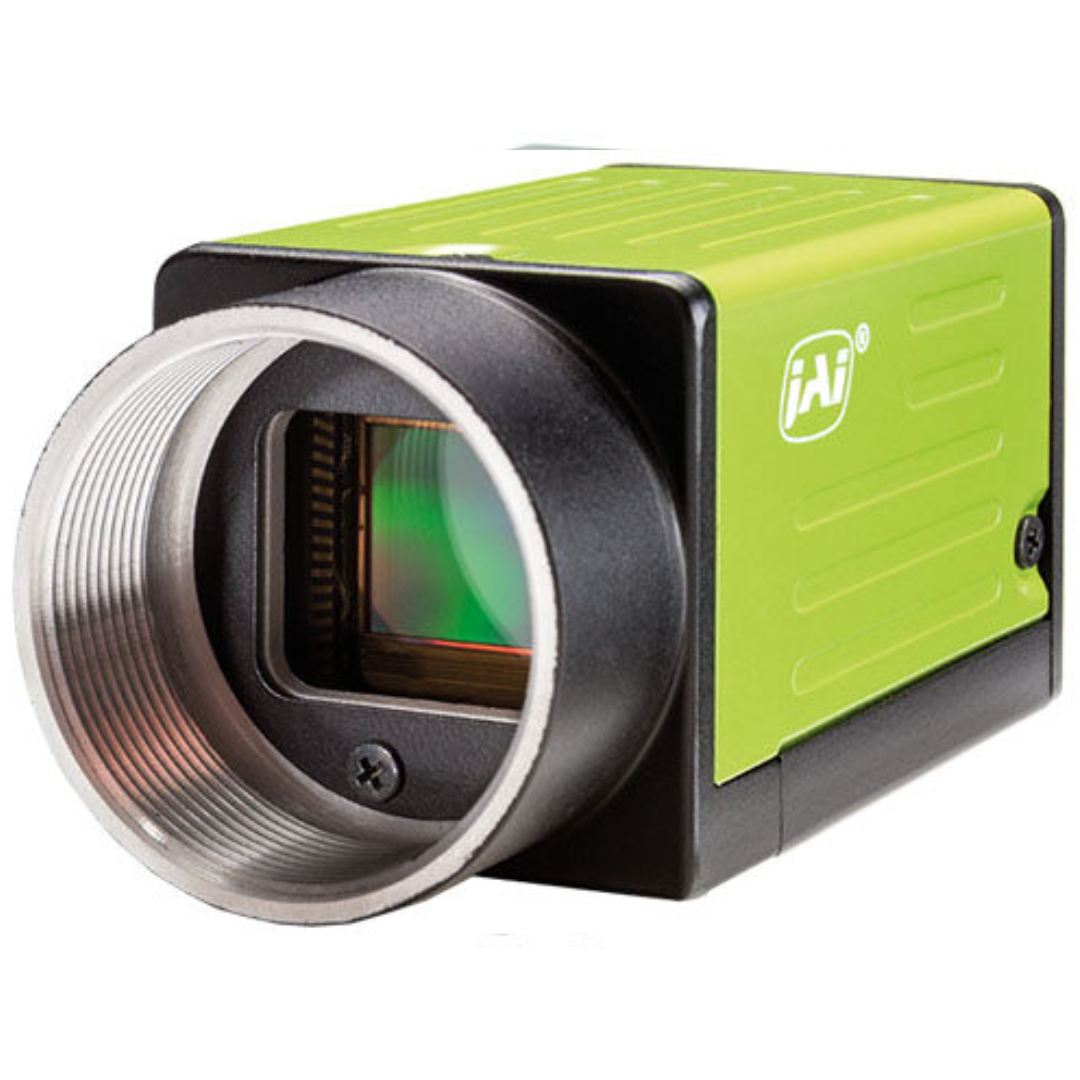

The JAI Go Series is a compact, entry-level machine vision camera line that punches above its weight. At just 29 × 29 × 41.5 mm and under 50 grams, these rugged cameras fit tight spaces and weight-critical applications think robotics, drones or embedded systems while surviving 80G shocks and 10G vibrations in harsh industrial environments.
Key Features:
– High-performance CMOS sensors (IMX250, IMX264, IMX174, IMX249, Lince5M) with global shutters for crisp moving images
– Specialized variants: Polarization (IMX250MZR) and UV (IMX487) models for advanced imaging needs
– Flexible interfaces: USB3 and GigE options to match your setup
– Reliability: MTBF exceeding 180,000 hours with standard 3-year warranty
| # | Model | Color/Mono | Light Spectrum | Resolution (MP) | Resolution (WxH) | Frame Rate | Interface | Sensor | Cell Size |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GO-2400C-PGE | Color | Visible | 2.4 | 1936 x 1216 px | 48 fps | GigE Vision 1-Cable (PoE) | IMX174 | 5.86 x 5.86 µm |
| 2 | GO-2400C-PGE-1 | Color | Visible | 2.4 | 1936 x 1216 px | 48 fps | GigE Vision 1-Cable (PoE) | IMX174 | 5.86 x 5.86 µm |
| 3 | GO-2400C-PMCL | Color | Visible | 2.4 | 1936 x 1216 px | 165 fps | Mini Camera Link (PoCL) | IMX174 | 5.86 x 5.86 µm |
| 4 | GO-2400C-PMCL-1 | Color | Visible | 2.4 | 1936 x 1216 px | 165 fps | Mini Camera Link (PoCL) | IMX174 | 5.86 x 5.86 µm |
| 5 | GO-2400C-USB | Color | Visible | 2.4 | 1936 x 1216 px | 159 fps | USB3 Vision (PoUSB) | IMX174 | 5.86 x 5.86 µm |
| 6 | GO-2400M-PGE | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 48 fps | GigE Vision 1-Cable (PoE) | IMX174 | 5.86 x 5.86 µm |
| 7 | GO-2400M-PGE-1 | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 48 fps | GigE Vision 1-Cable (PoE) | IMX174 | 5.86 x 5.86 µm |
| 8 | GO-2400M-PMCL | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 165 fps | Mini Camera Link (PoCL) | IMX174 | 5.86 x 5.86 µm |
| 9 | GO-2400M-PMCL-1 | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 165 fps | Mini Camera Link (PoCL) | IMX174 | 5.86 x 5.86 µm |
| 10 | GO-2400M-USB | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 159 fps | USB3 Vision (PoUSB) | IMX174 | 5.86 x 5.86 µm |
| 11 | GO-2401C-PGE | Color | Visible | 2.4 | 1936 x 1216 px | 41 fps | GigE Vision 1-Cable (PoE) | IMX249 | 5.86 x 5.86 µm |
| 12 | GO-2401C-PGE-1 | Color | Visible | 2.4 | 1936 x 1216 px | 41 fps | GigE Vision 1-Cable (PoE) | IMX249 | 5.86 x 5.86 µm |
| 13 | GO-2401M-PGE | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 41 fps | GigE Vision 1-Cable (PoE) | IMX249 | 5.86 x 5.86 µm |
| 14 | GO-2401M-PGE-1 | Mono | Visible + NIR | 2.4 | 1936 x 1216 px | 41 fps | GigE Vision 1-Cable (PoE) | IMX249 | 5.86 x 5.86 µm |
| 15 | GO-5000M-PGE | Mono | Visible + NIR | 5 | 2560 x 2048 px | 22 fps | GigE Vision 1-Cable (PoE) | Lince5M | 5.0 x 5.0 µm |
| 16 | GO-5000M-PGE-1 | Mono | Visible + NIR | 5 | 2560 x 2048 px | 22 fps | GigE Vision 1-Cable (PoE) | Lince5M | 5.0 x 5.0 µm |
| 17 | GO-5000M-PGE-UV-1 | Mono | Visible + UV | 5 | 2560 x 2048 px | 22 fps | GigE Vision 1-Cable (PoE) | Lince5M | 5.0 x 5.0 µm |
| 18 | GO-5000M-PMCL | Mono | Visible + NIR | 5 | 2560 x 2048 px | 107 fps | Mini Camera Link (PoCL) | Lince5M | 5.0 x 5.0 µm |
| 19 | GO-5000M-PMCL-1 | Mono | Visible + NIR | 5 | 2560 x 2048 px | 107 fps | Mini Camera Link (PoCL) | Lince5M | 5.0 x 5.0 µm |
| 20 | GO-5000M-PMCL-UV-1 | Mono | Visible + UV | 5 | 2560 x 2048 px | 107 fps | Mini Camera Link (PoCL) | Lince5M | 5.0 x 5.0 µm |
| 21 | GO-5000M-USB | Mono | Visible + NIR | 5 | 2560 x 2048 px | 62 fps | USB3 Vision (PoUSB) | Lince5M | 5.0 x 5.0 µm |
| 22 | GO-5000M-USB-UV | Mono | Visible + UV | 5 | 2560 x 2048 px | 62 fps | USB3 Vision (PoUSB) | Lince5M | 5.0 x 5.0 µm |
| 23 | GO-5100C-PGE | Color | Visible | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX250 | 3.45 x 3.45 µm |
| 24 | GO-5100C-PGE-1 | Color | Visible | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX250 | 3.45 x 3.45 µm |
| 25 | GO-5100C-USB | Color | Visible | 5.1 | 2464 x 2056 px | 74 fps | USB3 Vision (PoUSB) | IMX250 | 3.45 x 3.45 µm |
| 26 | GO-5100M-PGE | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX250 | 3.45 x 3.45 µm |
| 27 | GO-5100M-PGE-1 | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX250 | 3.45 x 3.45 µm |
| 28 | GO-5100M-USB | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 74 fps | USB3 Vision (PoUSB) | IMX250 | 3.45 x 3.45 µm |
| 29 | GO-5100MP-PGE | Mono Polarized | Visible | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX250MZR | 3.45 x 3.45 µm |
| 30 | GO-5100MP-USB | Mono Polarized | Visible | 5.1 | 2464 x 2056 px | 74 fps | USB3 Vision (PoUSB) | IMX250MZR | 3.45 x 3.45 µm |
| 31 | GO-5101C-PGE | Color | Visible | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX264 | 3.45 x 3.45 µm |
| 32 | GO-5101C-PGE-1 | Color | Visible | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX264 | 3.45 x 3.45 µm |
| 33 | GO-5101C-PMCL | Color | Visible | 5.1 | 2464 x 2056 px | 35 fps | Mini Camera Link (PoCL) | IMX264 | 3.45 x 3.45 µm |
| 34 | GO-5101C-PMCL-1 | Color | Visible | 5.1 | 2464 x 2056 px | 35 fps | Mini Camera Link (PoCL) | IMX264 | 3.45 x 3.45 µm |
| 35 | GO-5101M-PGE | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX264 | 3.45 x 3.45 µm |
| 36 | GO-5101M-PGE-1 | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 22 fps | GigE Vision 1-Cable (PoE) | IMX264 | 3.45 x 3.45 µm |
| 37 | GO-5101M-PMCL | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 35 fps | Mini Camera Link (PoCL) | IMX264 | 3.45 x 3.45 µm |
| 38 | GO-5101M-PMCL-1 | Mono | Visible + NIR | 5.1 | 2464 x 2056 px | 35 fps | Mini Camera Link (PoCL) | IMX264 | 3.45 x 3.45 µm |
| 39 | GO-8105M-5GE-UV | Mono | Visible + UV | 8.1 | 2856 x 2848 px | 66 fps | 5 Gbps GigE Vision (PoE) | IMX487-AAMJ | 2.74 x 2.74 µm |
Winner of the prestigious Vision Systems and Design Magazine’s Innovators Award 2018, the IC-X50T-CXP mono and color versions showcase ISVI’s expertise in leading-edge camera design.
Key Features:
Features and Benefits:
Applications:
Our Industrial High Flex Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. This is a solution for brutal applications that require more than the traditional cable can offer. Double shielded cable ensures the best electrical performance. Intercon’s industrial high flex cable has exceeded 12 million + flex cycles in both tick tock and rolling torsion testing. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion. Our unique right/left and up/down strain relief orientations provide a solution for those applications where limited space exists behind the camera. The low profile right angle orientations eliminate the stress that can be placed on the cable, connector and camera when using a traditional straight assembly in these tight areas. The thumbscrew-locking feature ensures that the interface will remain secure despite motion and vibration.
Industrial High Flex Cat6a Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 6a cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 3 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.
Industrial High Flex Cat5e Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 5e cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 10 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.
Key Features:
