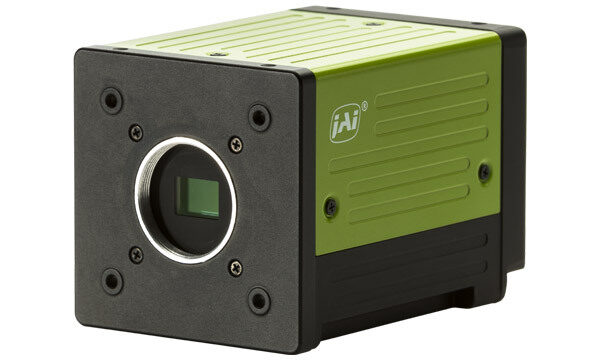

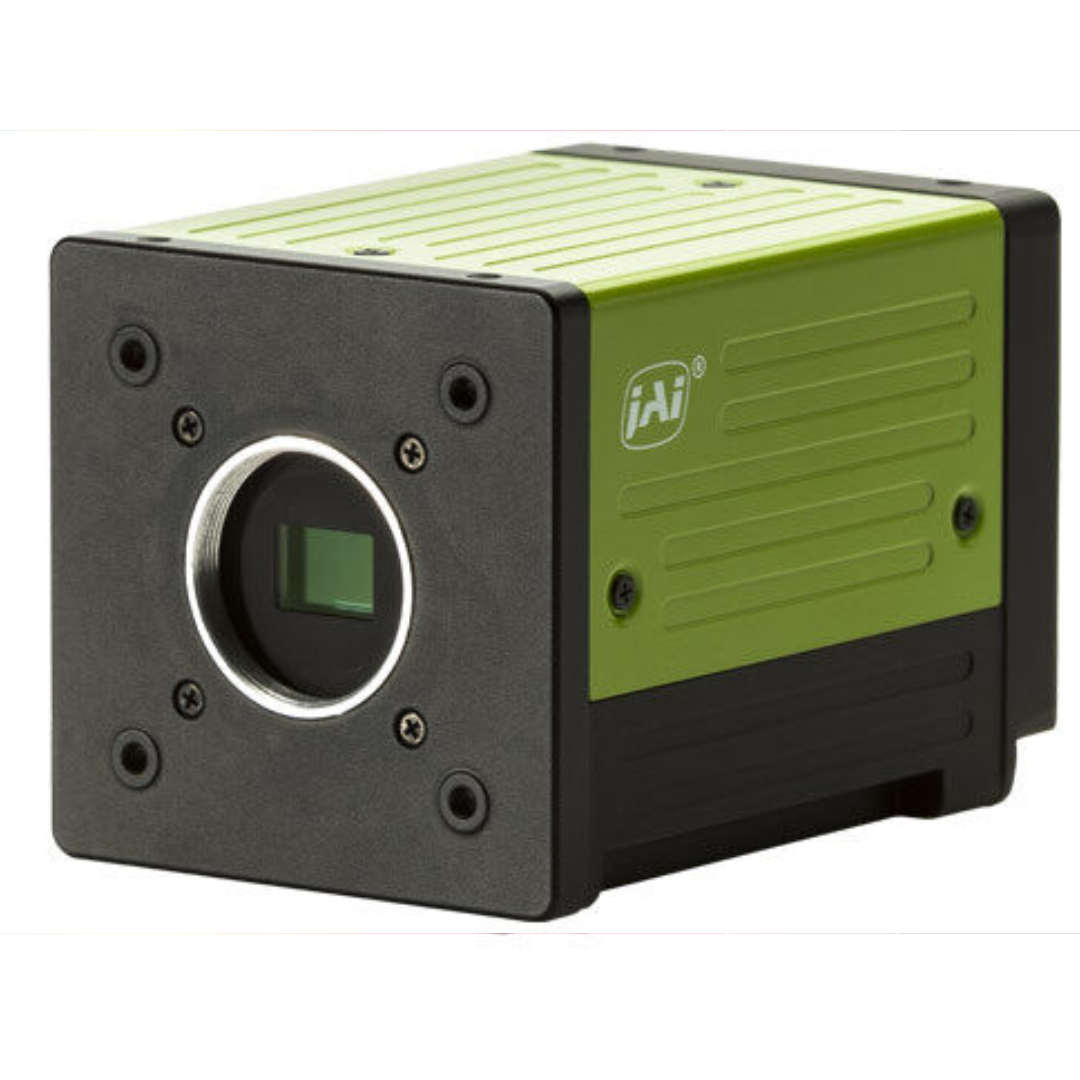

JAI’s Fusion Series of multispectral prism cameras provide simultaneous images of multiple wavebands through a single optical path. The cameras split incoming light into two or three separate sensors with precise pixel-to-pixel alignment regardless of motion or viewing angle.
Fusion Series cameras are ideal for life sciences or surgical applications using NIR fluorescence; for intelligent farming techniques such as NDVI/NDRE vegetation analysis or autonomous weed removal systems; for fruit, vegetable, and other types of food sorting or inspection; for electronics/PCB inspection; and much more.
You can choose from several standard models with predefined configurations of visible and near-infrared (NIR) wavebands, or you can use JAI’s innovative Flex-Eye technology to design your own configuration with two or three custom wavebands perfectly tailored to your application requirements.
See the available models in the camera table below.
More about JAI Flex-Eye technology
Learn more about Flex-Eye multispectral customization options
| # | Model | Type | Color / Mono | Light Spectrum | MP | Resolution | Frame Rate | ROI | Interface | Sensors | Sensor Name | Cell Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | FS-1600D-10GE | Area Scan | Multispectral | 2-Bands Visible + NIR (Prism) | 1.6 | 1440 x 1080 px | 226 fps | Yes | 10 Gbps GigE Vision | 2x CMOS (Vis/NIR) | IMX273 | 3.45 x 3.45 µm |
| 2 | FS-1600T-10GE-NNM | Area Scan | Multispectral | 3-Bands Visible + NIR (Prism) | 1.6 | 1440 x 1080 px | 213 fps | Yes | 10 Gbps GigE Vision | 3x CMOS Vis/NIR/NIR | IMX273 | 3.45 x 3.45 µm |
| 3 | FS-3200D-10GE | Area Scan | Multispectral | 2-Bands Visible + NIR (Prism) | 3.2 | 2048 x 1536 px | 123 fps | Yes | 10 Gbps GigE Vision | 2x CMOS (Vis/NIR) | IMX252 | 3.45 x 3.45 µm |
| 4 | FS-3200T-10GE-NNC | Area Scan | Multispectral | 3-Bands Visible + NIR (Prism) | 3.2 | 2048 x 1536 px | 107 fps | Yes | 10 Gbps GigE Vision | 3x CMOS Vis/NIR/NIR | IMX252 | 3.45 x 3.45 µm |
| 5 | FSFE-1600D-10GE | Area Scan | Multispectral | 2-Bands Visible + NIR (Prism) | 1.6 | 1440 x 1080 px | 226 fps | N/A | 10 Gbps GigE Vision | 2x CMOS (Vis/NIR) | IMX273 | 3.45 x 3.45 µm |
| 6 | FSFE-1600T-10GE | Area Scan | Multispectral | 3-Bands Visible + NIR (Prism) | 1.6 | 1440 x 1080 px | 213 fps | N/A | 10 Gbps GigE Vision | 3x CMOS (Vis/NIR) | IMX273 | 3.45 x 3.45 µm |
| 7 | FSFE-3200D-10GE | Area Scan | Multispectral | 2-Bands Visible + NIR (Prism) | 3.2 | 2048 x 1536 px | 123 fps | N/A | 10 Gbps GigE Vision | 2x CMOS (Vis/NIR) | IMX252 | 3.45 x 3.45 µm |
| 8 | FSFE-3200T-10GE | Area Scan | Multispectral | 3-Bands Visible + NIR (Prism) | 3.2 | 2048 x 1536 px | 107 fps | N/A | 10 Gbps GigE Vision | 3x CMOS (Vis/NIR) | IMX252 | 3.45 x 3.45 µm |
