Multispectral cameras customized to your application requirements.

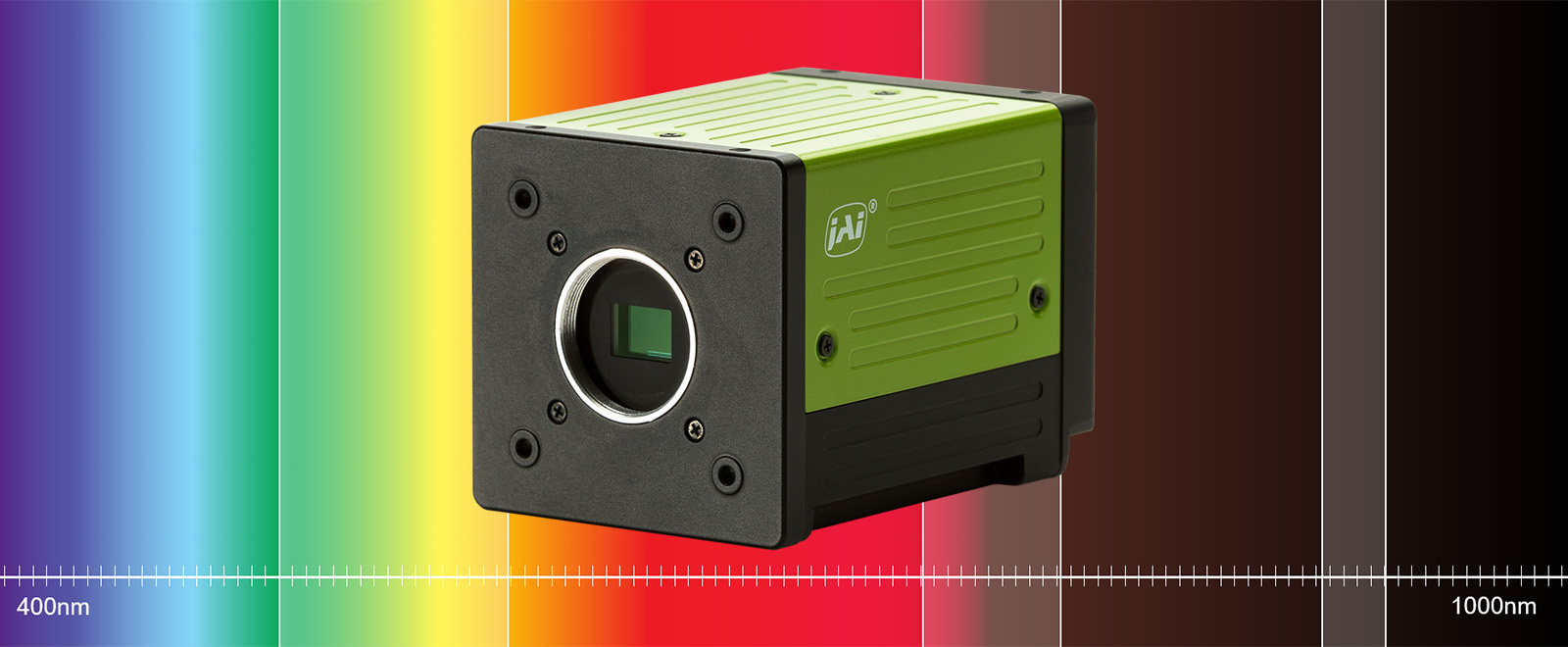

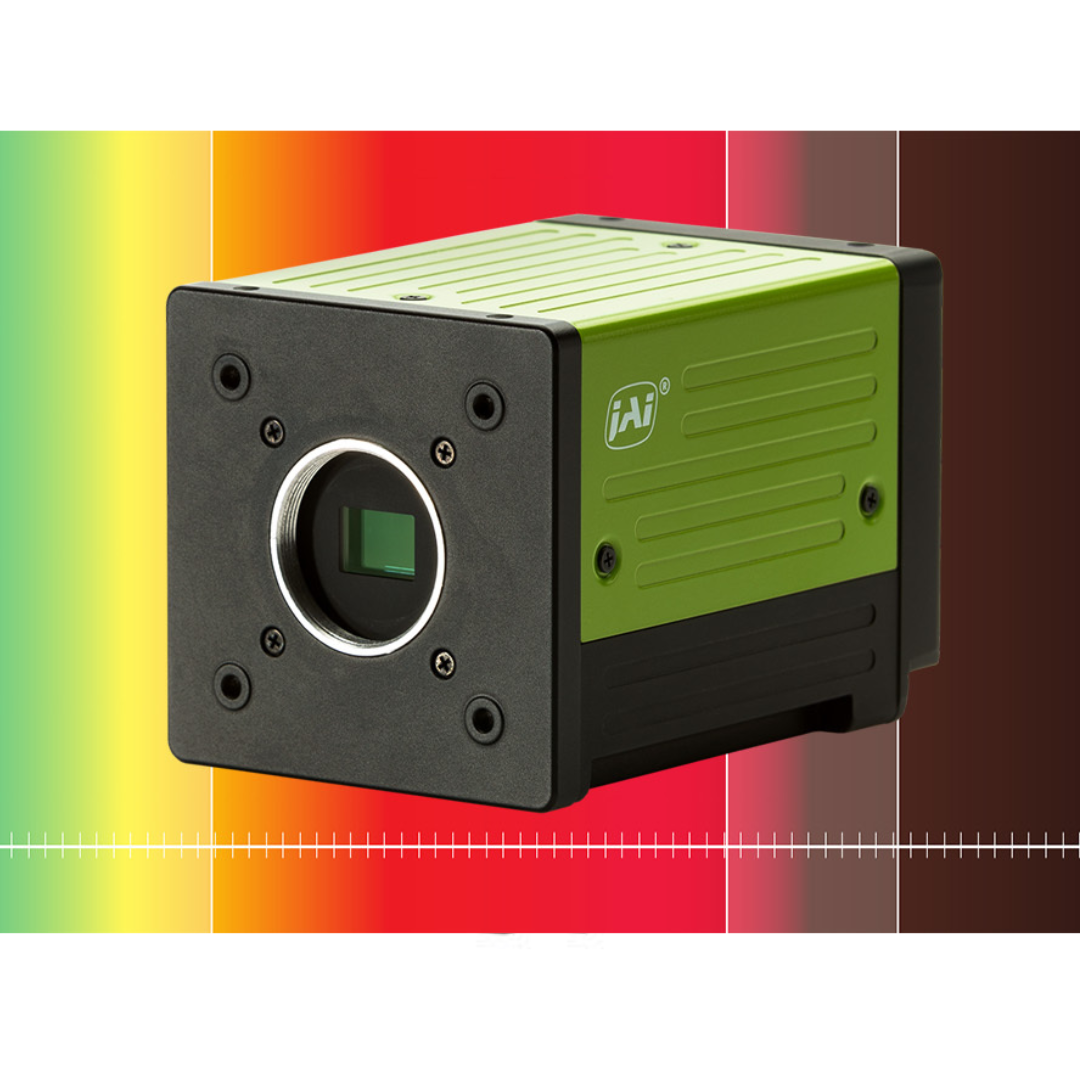

JAI’s innovative Flex-Eye technology lets you design the perfect multispectral camera to meet the needs of your imaging system. Flex-Eye combines JAI´s Fusion Series of prism-based multispectral area scan cameras with a custom design process where you specify the number of wavebands, the sensor resolution, and the ideal spectral range for each channel in your multispectral camera.
How it works(Customization Process – JAI Flex-Eye Technology)
Select camera configuration – Use the online configurator to choose the number of sensors, resolution, and sensor type (Bayer color or monochrome for the visible spectrum).
Define spectral wavebands – Use the interactive spectral chart GUI to drag and position wavebands at the desired wavelengths and bandwidths, configurable from 405–1000 nm with widths as narrow as 25 nm.
Submit configuration for review – Send the configuration to JAI for technical feasibility evaluation.
Specification confirmation – If feasible, JAI confirms the design, assigns a custom product number, and discusses any additional requirements before the purchase order is finalized.
The Sony IMX273 CMOS Sensor (1.6 MP per waveband) and Sony IMX252 CMOS Sensor (3.2 MP per waveband) provide high image quality and fast frame rates, supporting up to three simultaneous wavebands at full resolution. A Bayer sensor option in the visible spectrum can also be used for interpolation or additional spectral data extraction during post-processing.
JAI’s prism technology splits incoming light into multiple sensors through a single optical path, ensuring simultaneous capture and precise pixel alignment across all wavebands, eliminating the need for software-based alignment. 10 GigE multi-stream interfaces allow independent or combined analysis of each waveband, with auto-negotiation to adjust to slower network speeds when required.
Support for hundreds of applications and configurations The versatility of the Flex-Eye solution creates hundreds of different possibilities for a wide range of multispectral imaging applications such as those shown below. You define the exact spectral configuration that will give your vision system the capabilities and the competitive edge that you are looking for.
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Matrox® Iris GTX is the next evolution of smart cameras from Matrox Imaging. Offering higher resolution sensors and substantially more processing power than its immediate predecessor, Matrox Iris GTX provides exceptional performance for a compact all-in-one vision system. Paired with flowchart-based Matrox Design Assistant® X1 software, engineers and technicians can quickly configure and deploy machine vision to the Matrox Iris GTX smart cameras. Video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations—as well as a web-based operator interface—are all set up within the same software. Matrox Iris GTX smart cameras are model edge IoT devices, performing data acquisition and analytics, and providing results nearest to the manufacturing
Boost performance by up to 3x over its precursor thanks to an Intel x6000 series embedded processor
Capture high-resolution images at high speed through a choice of CMOS sensors from two to 16 Megapixels
Deploy in dirty, humid, or harsh industrial environments by way of a compact IP67-rated design
Communicate actions and results to other automation and enterprise equipment via real-time digital I/Os, and Ethernet (TCP/IP, CC-Link IE Field Basic, EtherNet/IP™2, Modbus®, PROFINET®, and native robot interfaces)
Handle Human-Machine Interface (HMI) function by way of VGA and USB connectivity
Simplify vision setup and upkeep via integrated lens focusing and illumination intensity control
Synchronize to the manufacturing line through the support for incremental rotary encoders
Solve machine vision applications efficiently with Matrox Design Assistant X software by constructing flowcharts instead of writing program code
Maintain control and independence through the ability to code custom flowchart steps
Tackle machine vision applications with utmost confidence using field-proven tools for analyzing, locating, classifying, measuring, reading, and verifying
Leverage deep learning for visual inspection through image classification and segmentation tools
· All-in-One Smart Camera
· Deep Learning Edge IoT
· Flowchart-Based Setup
Having superb image quality, the all-new IC-X25B-CL provides the best performance-for-value ratio of all of ISVI’s new compact cameras. Using its Full Configuration Camera Link interface it achieves a frame rate of 30Hz. Its compact size and wide selection of standard lens mounts makes it a popular choice for users requiring a high-resolution camera but do not need the high frame rates of our CXP cameras.
