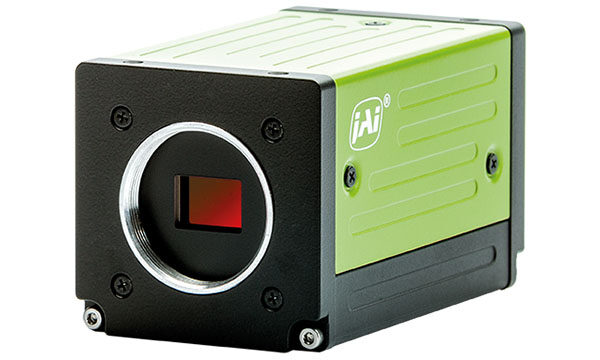

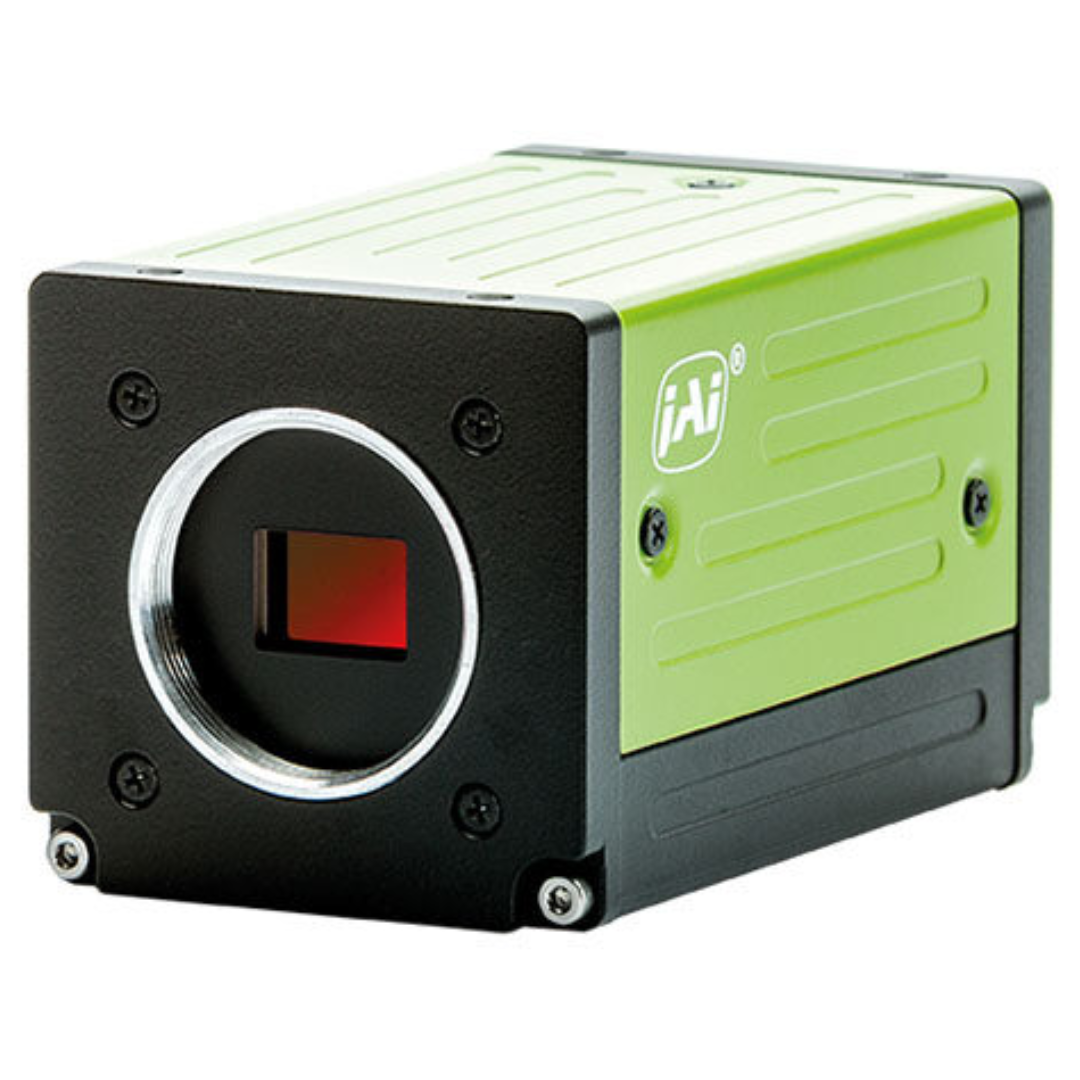

Prism-based 3-sensor RGB cameras delivering highly accurate color and superior spatial resolution for demanding color machine-vision applications.
Key points:
– Sensor/optics: 3-sensor R–G–B prism design with hard dichroic prism filters for steep spectral cutoffs and pure channel separation (no Bayer interpolation).
– Image quality: True per-pixel RGB raw data, higher color fidelity, better edge definition and finer detail resolution than Bayer cameras.
– Models & resolutions: Ten models — 1.6, 3.2, and 5.1 MP variants (AP-1600T, AP-3200T, AP-5100T).
– Sensors: Built on Sony Pregius / Pregius S sensors (IMX273, IMX265, IMX252, IMX548).
– Performance: Frame rates 12–126 fps depending on model and interface.
– Channel control: Independent analog gain and exposure per R/G/B channel for optimized SNR.
– Features: Pixel binning for improved sensitivity; Xscale sub-pixel rescaling on AP-5100T for tailored pixel size/sensitivity/resolution.
– Color processing: In-camera color-space conversions (RGB→HSI, RGB→CIE XYZ, RGB→sRGB/Adobe RGB).
– Interfaces: GigE Vision, Mini Camera Link, USB3 Vision, CoaXPress.
– Applications: Ideal for pharmaceutical, electronics, printing/packaging, microscopy, medical diagnostics where precise color and fine detail matter.
| # | Model | Product Line | Type | Color/Mono | Light Spectrum | Resolution (MP) | Resolution (WxH) | Frame Rate | ROI | Interface | Sensors | Sensor Name | Cell Size (WxH) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | AP-1600T-PGE | Apex Series | Area Scan | Color | Visible | 1.6 | 1456 x 1088 px | 24 fps | Yes | GigE Vision 1-Cable (PoE) | 3x CMOS RGB | IMX273 | 3.45 x 3.45 µm |
| 2 | AP-1600T-PMCL | Apex Series | Area Scan | Color | Visible | 1.6 | 1456 x 1088 px | 126 fps | Yes | Mini Camera Link (PoCL) | 3x CMOS RGB | IMX273 | 3.45 x 3.45 µm |
| 3 | AP-1600T-USB | Apex Series / Apex Medical Solutions | Area Scan | Color | Visible + NIR | 1.6 | 1456 x 1088 px | 79 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX273 | 3.45 x 3.45 µm |
| 4 | AP-3200T-10GE | Apex Series | Area Scan | Color | Visible | 3.2 | 2064 x 1544 px | 106 fps | Yes | 10 Gbps GigE Vision | 3x CMOS RGB | IMX252 | 3.45 x 3.45 µm |
| 5 | AP-3200T-PGE | Apex Series | Area Scan | Color | Visible | 3.2 | 2064 x 1544 px | 12 fps | Yes | GigE Vision 1-Cable (PoE) | 3x CMOS RGB | IMX265 | 3.45 x 3.45 µm |
| 6 | AP-3200T-PMCL | Apex Series | Area Scan | Color | Visible | 3.2 | 2064 x 1544 px | 55 fps | Yes | Mini Camera Link (PoCL) | 3x CMOS RGB | IMX265 | 3.45 x 3.45 µm |
| 7 | AP-3200T-USB | Apex Series / Apex Medical Solutions | Area Scan | Color | Visible + NIR | 3.2 | 2064 x 1544 px | 38 fps | Yes | USB3 Vision | 3x CMOS RGB | IMX265 | 3.45 x 3.45 µm |
| 8 | AP-5100T-5GE | Apex Series | Area Scan | Color | Visible | 5.1 | 2464 x 2056 px | 32 fps | Yes | 5 Gbps GigE Vision | 3x CMOS RGB | IMX548 Pregius S | 2.74 x 2.74 µm |
| 9 | AP-5100T-CXPA | Apex Series | Area Scan | Color | Visible | 5.1 | 2464 x 2056 px | 75 fps | Yes | CoaXPress-1-Lane (PoCXP) | 3x CMOS RGB | IMX548 Pregius S | 2.74 x 2.74 µm |
| 10 | AP-5100T-MCL | Apex Series | Area Scan | Color | Visible | 5.1 | 2464 x 2056 px | 55 fps | Yes | Mini Camera Link | 3x CMOS RGB | IMX548 Pregius S | 2.74 x 2.74 µm |
Features:
● Compatible to UVC and USB3 Vision
● Sony Pregius and Pregius S CMOS sensors
● Onboard image pre-processing
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
![SVS-VISTEK HR [CameraLink]](https://www.jm-vistec.com/wp-content/uploads/2023/01/SVS-HR-300x300.png)
Excellent Performance, Flexibility And Cost Efficiency
The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.
Highest resolutions at high frame rates for industrial cameras is the core area of the HR series. The HR series impresses with a wide range of features:
Camera Link offers high data rates, deterministic time response and very direct access to the image sensor. This enables settings and operating modes that are not available with other interfaces, even for industrial cameras with the highest resolutions.
The high resolutions recommend the HR for demanding measurement technology.
The main areas of application are semiconductor, pharmaceutical and beverage technology as well as pressure inspection.
