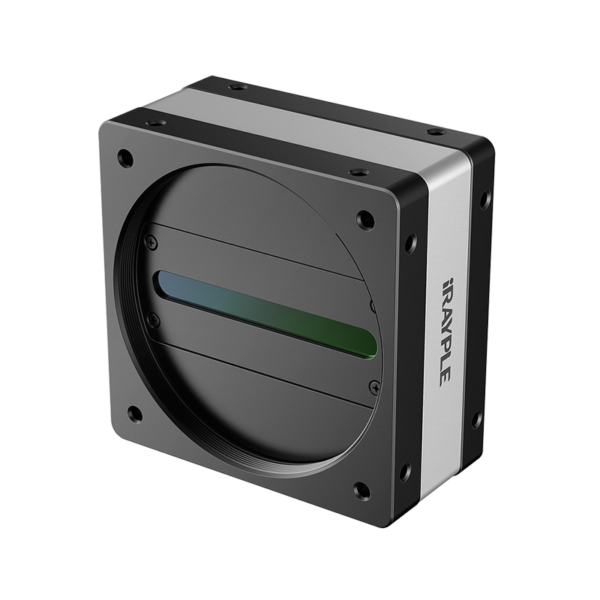

iRayple Line Scan Camera

Features:

Rich variety and clear image
Wide voltage input, stable operation
High resolution and high line rate
Modular design, compact structure

Product Model:

Product Model	Resolution	Line Rate	Sensor	Pixel Size	Port
L5027MG400E	2048 × 4	59 kHz	2K	7 × 7	GigE
L5082MK170E	8192 × 1	74 kHz	8 K	7 × 7	CameraLink
L5047MK140E	4096 × 2	120 kHz	4K	7 × 7	CameraLink
L5047CK140E	4096 × 2	62 kHz	4K	7 × 7	CameraLink
L5087CK670E	8192 × 6	34 kHz	8 K	5 × 5	CameraLink
L5087MK470E	8192 × 4	100 kHz	8 K	5 × 5	CameraLink
L5027CG140E	2048 × 2	49 kHz	2K	14 × 14	GigE
L5047CG140E	4096 × 2	28 kHz	4K	7 × 7	GigE
L5042MG141E	4096 × 1	28 kHz	4K	7 × 7	GigE
L5022CG141E	2048 × 2	49 kHz	2K	14 × 14	GigE
L5042CG141E	4096 × 2	28 kHz	4K	7 × 7	GigE
L5022MG141E	2048 × 1	49 kHz	2K	14 × 14	GigE
L5027MG140E	2048 × 1	49 kHz	2K	14 × 14	GigE
L5047MG140E	4096 × 2	28 kHz	4K	7 × 7	GigE
L5082MG170E	8192 × 1	13 kHz	8 K	7 × 7	GigE

This product is already in your proposal request list.
