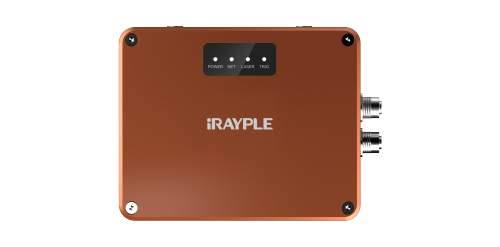

iRayple 3D Stereo Camera

Features:

Built-in algorithm supports high-precision volume measurement and 3D object location;
Small dimension and high integration make better cost performance and smaller
installation space;
Speckle-module illumination makes light uniform and reliable;
Excellent filter design depressed light from environment;
4 indicators are used to debug and function display;
Industrial-grade M12 connector, IP65 protection level;
Support multi-cameras cascade;

Product Model:

Product Model	Resolution	Sensor	Pixel Size	Mono/Color
DS5131MG30CE	1280×960	1/3″，CMOS	3.75×3.75
DS5131MG30CE	1288×1032	1/2.7″，CMOS	4.0×4.0

Price
