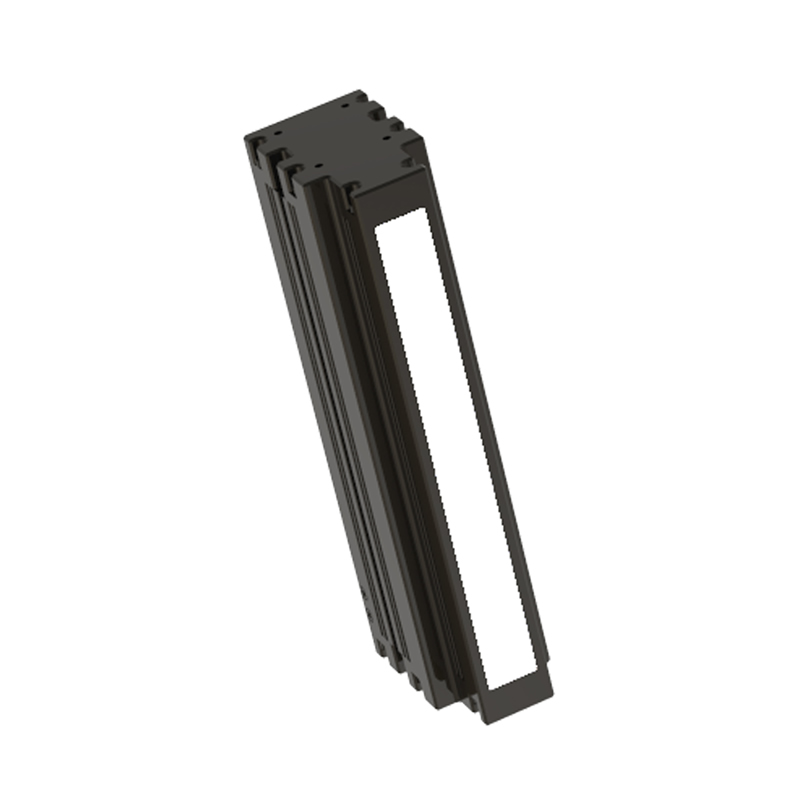

Application areas: PCB board circuit inspection, LCD and TP screen surface scratch and stain detection, lithium battery material surface defect detection and dimensional inspection, online continuous printing surface defect detection of paper and film and other printed materials.
Advantages
• Employs a new type of high-grade optical cylindrical perspective focusing light…
• Standard molds are used for molding to ensure structural stability.
• It has good linear uniformity and consistency
| model | Optics | Rated power (W) | Dimensions I×E×D (mm) | Weight (g) | |||
| color | Working distance (mm) | Light emission diameter (mm) | red | White, blue, green | |||
| HSLL-100 | Red, white, blue, green | 50-120 | 100x20 | 39 | 39 | 130x50x82 | 500 |
| HSLL-200 | Red, white, blue, green | 50-120 | 200x20 | 50 | 58 | 230x50x82 | 900 |
| HSLL-250 | Red, white, blue, green | 50-120 | 250x20 | 58 | 68 | 280x50x82 | 1100 |
| HSLL-300 | Red, white, blue, green | 50-120 | 300x20 | 60 | 90 | 330x50x82 | 1300 |
| HSLL-350 | Red, white, blue, green | 50-120 | 350x20 | 65 | 80 | 380x50x82 | 1400 |
| HSLL-400 | Red, white, blue, green | 50-120 | 400x20 | 80 | 110 | 430x50x82 | 1600 |
| HSLL-500 | Red, white, blue, green | 50-120 | 500x20 | 115 | 150 | 530x50x82 | 1900 |
| HSLL-600 | Red, white, blue, green | 50-120 | 600x20 | 150 | 180 | 630x50x82 | 2300 |
| HSLL-700 | Red, white, blue, green | 50-120 | 700x20 | 180 | 210 | 730x50x82 | 2800 |
| HSLL-750 | Red, white, blue, green | 50-120 | 750x20 | 200 | 220 | 780x50x82 | 3000 |
| HSLL-800 | Red, white, blue, green | 50-120 | 800x20 | 200 | 220 | 830x50x82 | 3200 |
| HSLL-850 | Red, white, blue, green | 50-120 | 850x20 | 240 | 260 | 880x50x82 | 3400 |
| HSLL-900 | Red, white, blue, green | 50-120 | 900x20 | 240 | 260 | 930x50x82 | 3600 |
| HSLL-1100 | Red, white, blue, green | 50-120 | 1100x20 | 300 | 330 | 1130x50x82 | 4300 |
| HSLL-1200 | Red, white, blue, green | 50-120 | 1200x20 | 340 | 370 | 1230x50x82 | 4800 |
| HSLL-1300 | Red, white, blue, green | 50-120 | 1300x20 | 380 | 400 | 1330x50x82 | 5100 |
| HSLL-1400 | Red, white, blue, green | 50-120 | 1400x20 | 430 | 450 | 1430x50x82 | 5500 |
| HSLL-1500 | Red, white, blue, green | 50-120 | 1500x20 | 440 | 480 | 1530x50x82 | 5900 |
| HSLL-1600 | Red, white, blue, green | 50-120 | 1600x20 | 440 | 480 | 1630x50x82 | 6200 |
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LSR series is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.
