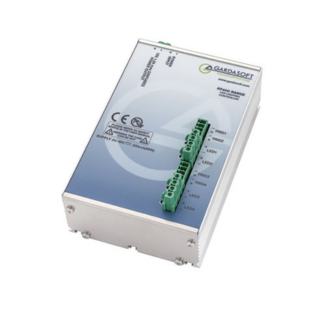

The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
| Parameter | RT240-20 | RT460-20 | RT420F-20 | RT460F-20 |
|---|---|---|---|---|
| User Interface | Ethernet | RS232 | Ethernet | RS232 |
| Output Channels | Four independent constant current outputs with SafeSense™ | |||
| Output Current | Up to 3A per channel continuous or 20A pulsed in steps of 5mA | |||
| Output Power | Max 30 W per channel | |||
| Trigger Inputs | 4 opto-isolated digital inputs. Require 3v to 24v operation | |||
| Timing | From 20µs to 999 ms in steps of 20µs/100µs | From 1µS to 999 ms in steps of 1µs/100µs | ||
| Delay from trigger to pulse | From 20µs to 999 ms in steps of 20µs/100µs | From 3µS to 999 ms in steps of 1µs/100µs | ||
| Timing Repeatability | Delay + Pulse up to 10ms: 0.1µs for pulse width and 3µs for delay. Otherwise 100µs | |||
| Output Voltage | 0V to 46V | |||
| Supply Voltage | Regulated 24V to 48V | |||
| Dimensions | 159mm long by 62mm high (excluding DIN fixing) | |||
| Weight | 400g | |||
| Mounting | Panel mounting. DIN rail mount option | |||
The PP800 models can be quickly configured using our free software which can be downloaded from this page, or for the PP820 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP800 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
