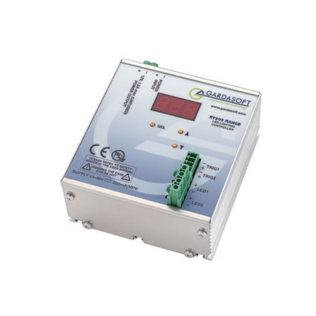

The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
| Parameter | RT200-20 | RT220-20 | RT260-20 | RT200F-20 | RT220F-20 | RT260F-20 |
|---|---|---|---|---|---|---|
| User Interface | Pushbutton | Ethernet | RS232 | Pushbutton | Ethernet | RS232 |
| Output Channels | Two independent constant current outputs with SafeSense™ | |||||
| Output Current | From 0mA to 20A in steps of 5mA. Up to 3A per channel continuous or 20A pulsed | |||||
| Output Power | Max 30 W per channel | |||||
| Trigger Inputs | 2 opto-isolated digital inputs. Require 3v to 24v operation | |||||
| Timing | From 20µs to 999 ms in steps of 20µs/100µs | From 1µS to 999 ms in steps of 1µs/100µs | ||||
| Delay from trigger to pulse | From 20µs to 999 ms in steps of 20µs/100µs | From 3µS to 999 ms in steps of 1µs/100µs | ||||
| Timing Repeatability | Delay + Pulse up to 10ms: 0.1µS for pulse width and 2µS for delay. Otherwise 100µS | |||||
| Output Voltage | 0V to 46V | |||||
| Supply Voltage | Regulated 24V to 48V | |||||
| Dimensions | 112mm long by 97mm wide by 62mm high (excluding DIN fixing) | |||||
| Weight | 300g | |||||
| Mounting | Panel mounting. DIN rail mount option | |||||
The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The PP520 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP520 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The PPCC16 combines the features of the Gardasoft PP1600 series LED Lighting Controllers with the addition of 8 digital outputs for triggering cameras or general use. With new generation LEDs the PPCC16 series can provide high intensity pulses which exceed the brightness of xenon strobes.
