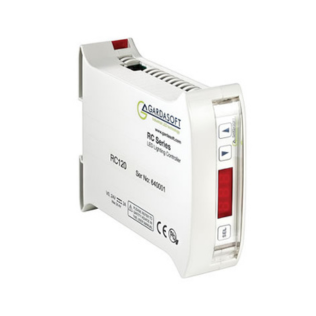

The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.
| Parameter | RC100 | RC120 |
| User interface | Push-button | Ethernet and Push-button |
| Output channels | One constant current output with SafeSense™ | |
| Output current | Up to 1.0A continuous or 1.0A pulsed | Up to 1.2A continuous or 2.0A pulsed |
| Output Power | Max 25W | |
| Trigger inputs | Smart input compatible with 3V-24V, TTL, NPN, and PNP Input impedance (nominal): 50kohm | |
| Pulse Timing | From 100µs to 100ms in steps of 100µs | |
| Delay from trigger to pulse | From 2µs to 100ms in steps of 100µs | |
| Timing repeatability (Delay) | ±5µs (Delay + Pulse up to 60ms) Otherwise ±50µs | |
| Timing repeatability (Pulse width) | ±0.1µs (Delay + Pulse up to 1ms) ±5µs (Delay + Pulse from >1ms to 60ms) Otherwise ±50µs | |
| Switch mode latency | Maximum 100µs | |
| Trigger rate | Maximum 100Hz | |
| Output voltage | 0V to 32V | |
| Supply voltage | Regulated 24V ±10% A SELV power supply is required | |
| Dimensions | 101mm long by 35mm wide by 120mm high (excluding DIN fixing) | |
| Weight | 175g | |
| Mounting | DIN rail mount as standard | |
| Operating temperature | 5 to 50°C | |
| Humidity | Up to 95% non-condensing | |
The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
