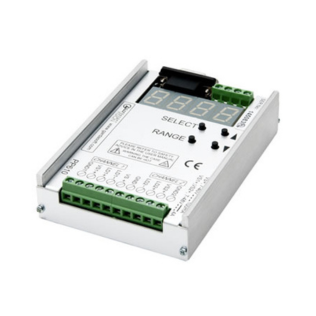

Gardasoft PP600 LED Strobe Controller

The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Two independent controlled output channels
  • Push button interface with optional Ethernet connectivity
  • SafeSense™ technology for safe overdriving
  • Small compact unit with optional DIN mounting available

PP600 Quick Specification:

  • 2 channel output
  • Optical RS232 interface
  • 10A maximum pulsed
  • 4A maximum continuous
  • Supply voltage 12-48V DC
  • SafeSense™ enabled
  • 20µS minimum pulse width
  • Optional 5µS pulse width (F version)
Gardasoft Datasheet
Add to Proposal
Parameter PP600 PP602 PP610 PP612 PP600F PP602F PP610F PP612F
User interface Pushbutton Pushbutton & RS232 Pushbutton Pushbutton & RS232
Lighting connection Screw Terminal Screw terminal & Japanese Style Connector Screw Terminal Screw terminal & Japanese Style Connector Screw Terminal Screw terminal & Japanese Style Connector Screw Terminal Screw terminal & Japanese Style Connector
Output channels Two independent constant current outputs
Output current From 0 to 10A in steps of 0.25mA up to 750mA / Steps of 2.5mA for higher currents Maximum current per channel: 10A pulsed or 4A continuous
Trigger inputs Two opto-isolated digital inputs. Requires 5 – 24v
Pulse width timing From 20uS to 1.3S in steps of 20uS Timing repeatability 2uS From 5uS to 10mS in steps of 1uS Timing repeatability 1uS
Delay from trigger to pulse From 20uS to 1.3S in steps of 20uS Timing repeatability 2uS From 10uS to 10mS in steps of 2uS Timing repeatability 2uS
Output voltage 0 – 39v
Supply voltage Regulated 12 – 48v. The supply voltage must be at least 1v higher than the output voltage required by the light
Weight 118mm long, 76mm wide, 27mm high (excluding DIN fixing)
Mounting DIN rail or panel mouting
Related Products
Gardasoft RTCC4 Combined LED Control and Trigger Timing

The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.

Key features:

  • Combines Lighting Control with Trigger Timing
  • Two extra digital outputs to standard Gardasoft RT Controllers
  • Includes all RTCC4 timing and sequencing functionality
  • Encoder input
  • SafePower™ and SafeSense™ technologies for Lighting Control
Gardasoft Embedded Lens Controllers

Key features:

  • One channel output
  • Include constant current lens drive and lens EEPROM data communications
  • -400 mA to +400 mA in 0.11 mA steps
  • Compatible with Optotune EL-16-40 TC lens
  • Full current calibration with lens temperature compensation (pre-calibrated lenses only)

Application benefits:

  • Precision, embedded controller for Optotune lenses
  • Compatible with the most common communication protocols for embedded devices
Gardasoft TR Series LED Strobe Controllers

Gardasoft TR Series LED Controllers are a core component of a triniti Intelligent Lighting system. triniti is a new enabling technology from Gardasoft, which provides expert control, operational intelligence and full integration of Machine Vision lighting – all within a ‘plug & play’ environment.

Key features:

  • 1, 2 and 4 channel LED lighting controllers
  • Compatible with triniti Intelligent Lighting platform
  • GigE Vision compliant
  • Pulsing up to 20A
  • Continuous output to 3.0A
  • 30W maximum output per channel
  • Pulse timing to 20µs
  • Ethernet and Push-button interfaces (dependent on model)

Triniti application benefits

  • Enables non-expert users to use expert Machine Vision lighting techniques
  • Revolutionises the integration of lighting parameters right through to application level software
  • Addresses the industry’s need for a flexible system that is readily ‘plug & play’
  • Provides a stability of brightness, long-term, that helps to enhance the reliability of Vision systems, over many years
Gardasoft RT400 Series LED Strobe Controllers

The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Four independently controlled output channels
  • Ethernet or RS232 configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Small compact unit with optional DIN mounting available
