The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.

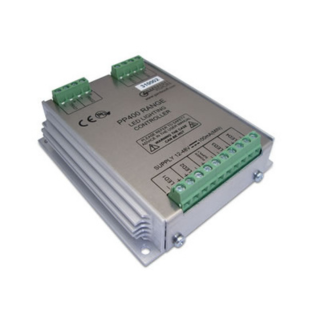

| Parameter | PP420 | PP420F |
|---|---|---|
| User interface | Ethernet | Ethernet |
| Output channels | Four independent constant current outputs with SafeSense™. | |
| Output current | From 0mA to 10A in steps of 2.5mA. Up to 2A per channel continuous or 10A pulsed. Total 2A maximum average output current from the controller | |
| Trigger inputs | 4 opto-isolated digital inputs. Require 3V to 24V at 3mA. | |
| Pulse width timing | From 20us to 999 milliseconds in steps of 20us. Timing repeatability 0.1us | From 1us to 999 milliseconds in steps of 0.1us. Timing repeatability 0.1us |
| Delay from trigger to pulse | From 20us to 999 milliseconds in steps of 20us. Timing repeatability 1us (depending on conditions) | From 3us to 999 milliseconds in steps of 1us. Timing repeatability 1us (depending on conditions) |
| Output voltage | 0V to 46V. | |
| Supply voltage | Regulated 12V to 48V. The supply voltage must be at least 1V higher than the output voltage required by the lighting. | |
| Dimensions | 118mm long by 76mm wide by 27mm high (excluding DIN fixing) | |
| Weight | 240g excluding DIN fixing | |
| Mounting | DIN rail or panel mounting. | |
The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The Gardasoft TR-CL180 is a single-channel industrial Lens Controller which provides very accurate and repeatable control of tunable lenses. The TR-CL180 has been developed in close collaboration with Optotune. The TR-CL180 includes a precise, constant current drive for the liquid lens and is able to read data stored within the liquid lens. It is compatible with Optotune EL-10-30-Ci, EL-16-40-TC and EL-3-10 tunable lenses.
The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.
