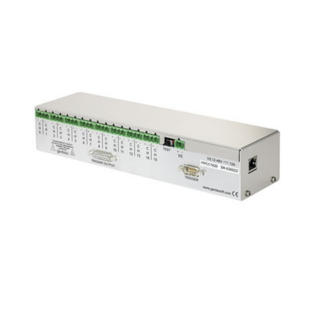

The PPCC16 combines the features of the Gardasoft PP1600 series LED Lighting Controllers with the addition of 8 digital outputs for triggering cameras or general use. With new generation LEDs the PPCC16 series can provide high intensity pulses which exceed the brightness of xenon strobes.
| PPCC1620 | PPCC1621 | PPCC1660 | PPCC1661 | |
|---|---|---|---|---|
| User Interface | Ethernet | RS232 | ||
| Output channel | 16 independent constant current outputs | |||
| Output current | 20A pulsed 2A continuous Steps of 6mA | 2A pulsed 2A continuous Steps of 1mA | 20A pulsed 2A continuous Steps of 6mA | 2A pulsed 2A continuous Steps of 1mA |
| Trigger inputs | 8 opto-isolated digital inputs. Require 3V to 24V | |||
| Lighting pulse width timing | 1µs to 1ms in steps of 1µs, variation <1µs 1ms to 1 second in steps of 100µs, variation <5µs | |||
| Lighting delay timing | 4µs to 1ms in steps of 1µs, variation <5µs 1ms to 1 second in steps of 100µs, variation <10µs | |||
| Digital output pulse timing | 10µs to 300ms in steps of 5µs, variation <10µs | |||
| Trigger outputs | 8 TTL level (0.4V to 3.4V typical at ±10mA) | |||
| Output voltage | 1.5V to [supply voltage] – 1V | |||
| Supply voltage | 12V to 48V regulated DC | |||
| Dimensions | 280mm by 54mm by 78mm | |||
| Weight | 700g | |||
| Mounting | Panel mount or optional DIN rail kit (Gardasoft PP705) | |||
The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.
