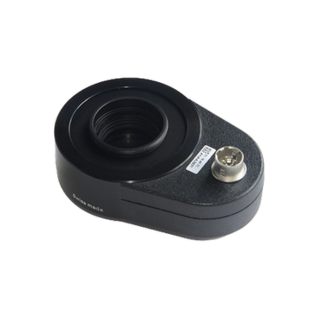

| Parameter | TR-CL180 specifications |
|---|---|
| Output channels | One channel, including constant current lens drive and lens EEPROM data communications. Automatically reads data from EEPROM inside lens which calibrates the controller response. The performance of the controller is therefore automatically tailored to each individual lens. |
| Lens compatibility | Compatible with following Optotune lens ranges EL-10-30-Ci; EL-16-40-TC Full current calibration with lens temperature compensation |
| Operating modes | Three operating modes: 1. Single configurable optical power 2. Two optical powers, selected by digital input 3. Optical power set by analog input |
| Digital input | Smart input 3V-24V, TTL, NPN, PNP compatible |
| Analog input | 0V to 10V, 7K input impedance Nominal 12-bit resolution |
| Refocus latency | 6ms (not including lens response) |
| Output current | -400mA to +400mA in 0.1mA steps Accuracy +/- 0.5mA |
| Output voltage | -16V to +16V |
| User interface | Ethernet (easy to use browser by means of in-built Web server) RS232 Front Panel |
| User SDK | Triniti SDK, applications written in C#, C++, VB |
| Lens connector | 6-way Hirose HR 10 G lens connector |
| Power supply | 24V +/-10%. An SELV power supply is required Input power 10W maximum |
| Operating temperature | 5 to 50°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | 120mm x 101mm x 35mm |
| Mounting | DIN rail mount |
| Weight | 175g |
| Standards | CE, RoHS |
The PP520 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP520 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
OLED panels have many benefits in machine vision applications because they give an exceptionally stable and uniform light intensity across the width of the panel. They are also very thin and can be moulded into complex shapes. However, OLED lights are challenging to control because the physical properties inherent in OLED panels demand sophisticated drive techniques to obtain fast and accurate pulsing.
The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
