Performance characteristics
· Low power consumption platform, equipped with excellent image sensor, high dynamic range, good signal ratio, excellent image quality
· Implant powerful ISP algorithms such as bright/dark field correction and lens shadow correction to ensure imaging consistency
· 100-level purification process control, leading quality control industry

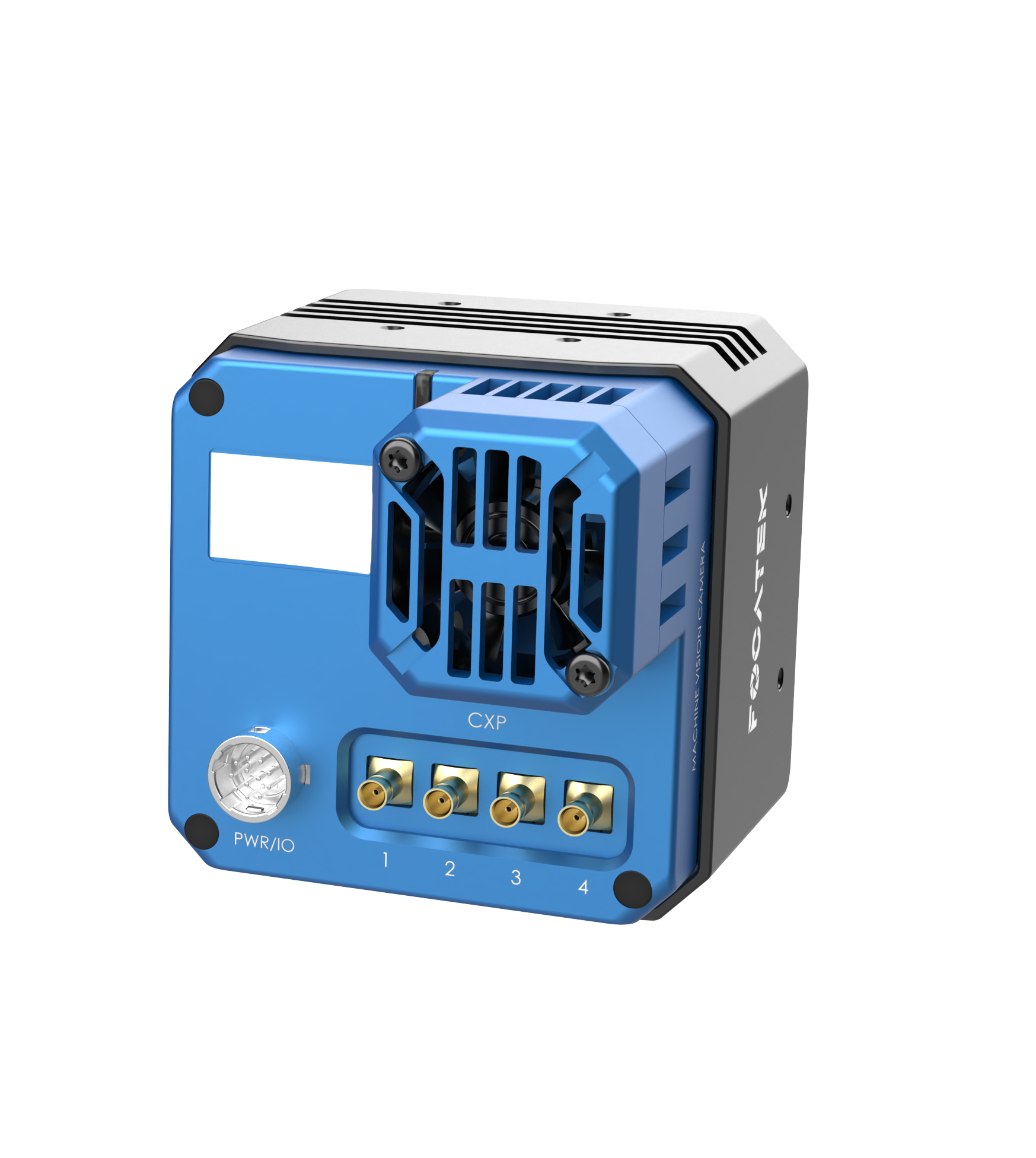

· Four-channel CTP-6 or CTP-12 output, ultra-high transmission bandwidth
· Compatible with CoaXPress protocol and GenlCam standard, seamless connection with third-party software
· Comply with CE,FCC,RoHS,KC certification
| Model | Sensor Model | Pixel size | Shutter Type | Resolution | Chroma | Data Interface | Frame Rates | Overall Dimensions |
| A21M-CXPM-222-B | Gsprint 4521 | 4.5 µm | Global | 5120 × 4096 | Black | CXP- 12 | 222 fps | 84 mm × 84 mm × 62.5 mm |
| A21M-CXPC-222-B | Gsprint 4521 | 4.5 µm | Global | 5120 × 4096 | Color | CXP- 12 | 222 fps | 84 mm × 84 mm × 62.5 mm |
| A25M-CXPM-150-B-M58 | GMAX0505 | 2.5 µm | Global | 5120 × 5120 | Black | CXP- 12 | 150 fps | 80 mm × 80 mm × 80 mm |
| A25M-CXPM-150-B-C | GMAX0505 | 2.5 µm | Global | 5120 × 5120 | Black | CXP- 12 | 150 fps | 80 mm × 80 mm × 80 mm |
| A25M-CXPC-150-B | GMAX0505 | 2.5 µm | Global | 5120 × 5120 | Color | CXP- 12 | 150 fps | 80 mm × 80 mm × 80 mm |
| A64M-CXPM-31-B-M58 | GMAX3265 | 3.2 µm | Global | 9344 × 7000 | Black | CXP-6 | 31.5 fps | 74 mm × 74 mm × 70.4 mm |
| A64M-CXPM-31-B-F | GMAX3265 | 3.2 µm | Global | 9344 × 7000 | Black | CXP-6 | 31.5 fps | 74 mm × 74 mm × 76.4 mm |
| A64M-CXPC-31-B-M58 | GMAX3265 | 3.2 µm | Global | 9344 × 7000 | Color | CXP-6 | 31.5 fps | 74 mm × 74 mm × 70.4 mm |
| A64M-CXPC-31-B-F | GMAX3265 | 3.2 µm | Global | 9344 × 7000 | Color | CXP-6 | 31.5 fps | 74 mm × 74 mm × 76.4 mm |
| A64M-CXPM-71-B | GMAX3265 | 3.2 µm | Global | 9344 × 7000 | Black | CXP- 12 | 71 fps | 84 mm × 84 mm × 62.5 mm |
| A64M-CXPC-71-B | GMAX3265 | 3.2 µm | Global | 9344 × 7000 | Color | CXP- 12 | 71 fps | 84 mm × 84 mm × 62.5 mm |
| A151M-CXPM-6-B | IMX411 | 3.76 µm | Rolling | 14208 × 10640 | Black | CXP-6 | 6.2 fps | 100 mm × 100 mm × 74.3 mm |
| A151M-CXPC-6-B | IMX411 | 3.76 µm | Rolling | 14208 × 10640 | Color | CXP-6 | 6.2 fps | 100 mm × 100 mm × 74.3 mm |
| A604M-CXPM-6-B | IMX411 | 3.76 µm | Rolling | 28416 × 21280 | Black | CXP-6 | 1.4 fps | 100 mm × 100 mm × 128.5 mm |
Key Features:
Features:
● Compatible to UVC and USB3 Vision
● Sony Pregius and Pregius S CMOS sensors
● Onboard image pre-processing
Highest resolution with large pixels and large sensor format: The SHR shines with up to 245 MP resolution when the task at hand requires uncompromising image quality.
Large pixels have many advantages when it comes to image quality in cameras, the physics here are clear. Some high-end tasks require the highest resolutions and impeccable image quality, which cannot be achieved without correspondingly large pixels for the optimum transfer function. This also applies to the highest resolutions. Tasks made for the SHR series.
Large sensors require special care in the camera to ensure a homogeneous image. Shading correction for demanding optical tasks and user-defined defect pixel correction ensure outstanding linearity, homogeneity and low noise.
We connect CMOS sensors in this category with the most powerful interfaces in order to make full use of the sensor’s high data rates. All cameras in the SHR series offer extensive I/O functions with sequencer and integrated strobe controller.
Highest resolution with optimized frame rate
Sony CMOS sensors with rolling and global shutter
Mono and Color (Bayer Pattern, Auto White Balance)
512 MB internal image memory
8 or 12 bit transmission
M72 thread (FFD 19.55)
User-defined Defect Pixel Correction
ROI, Look Up Table, Binning, Gamma, Offset
GenICam compatible
Exposure time: Trigger manual/auto/external
Integrated multi-channel LED strobe controller
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS23
High structural precision in sensor alignment and housing ensures precise image reproduction and a secure hold for the camera mount, adapter and lenses. The medium-format SHR is equipped with a standardized M72 thread and can therefore be used with a wide range of lenses and adapter rings. Thanks to the short flange distance of 19.55 mm, the highest quality lens systems can be individually adapted for almost any task.
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● Single-board cameras
