Performance characteristics:
· Equipped with excellent image sensor, high dynamic range, good signal-to-noise ratio, excellent image quality
· Implant powerful ISP algorithms such as bright/dark field correction and lens shadow correction to ensure imaging consistency
· 100-level purification process control, leading quality control industry
· Support Base/Medium/Full/80-bit mode, optional pixel clock to match different transmission distance cables
· Compatible with Camera Link protocol and GenlCam standard, seamless connection with third-party software
· Comply with CE.FCC, RoHS,KC certification
| Model | Sensor Model | Pixel size | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| A5M-CLM-140-B | IMX250 | 3.45 | 2432 × 2048 | Monochrome | 1/1.2" CMOS | 140 fps |
| A5M-CLC-140-B | IMX250 | 3.45 | 2432 × 2048 | Color | 1/1.8" CMOS, | 140 fps |
| A12M-CLM-69-B | IMX253 | 3.45 | 3840 × 3000 | Monochrome | 2/3" CMOS, | 69.8 fps |
| A12M-CLC-68-B | IMX253 | 3.45 | 3840 × 3000 | Color | 1" CMOS | 68.1 fps |
| A12M-CLM-23-B | IMX304 | 3.45 | 4096 × 3000 | Monochrome | 1.1" CMOS | 23.4 fps |
| A101M-CLM-8-B | IMX461 | 3.76 | 11648 × 8740 | Monochrome | 1" CMOS | 8.1 fps |
| A101M-CLM-8-B-TEC | IMX461 | 3.76 | 11648 × 8740 | Monochrome | 1/1.2" CMOS | 8.1 fps |
| A101M-CLC-8-B | IMX461 | 3.76 | 11648 × 8740 | Color | 1/1.8" CMOS, | 8.1 fps |
| A101M-CLC-9-B-TEC | IMX461 | 3.76 | 11648 × 8740 | Color | 2/3" CMOS, | 8.1 fps |
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
Machine vision and deep learning edge IoT device

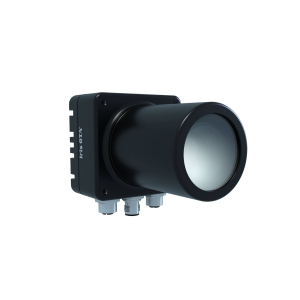

Matrox® Iris GTX is the next evolution of smart cameras from Matrox Imaging. Offering higher resolution sensors and substantially more processing power than its immediate predecessor, Matrox Iris GTX provides exceptional performance for a compact all-in-one vision system. Paired with flowchart-based Matrox Design Assistant® X1 software, engineers and technicians can quickly configure and deploy machine vision to the Matrox Iris GTX smart cameras. Video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations—as well as a web-based operator interface—are all set up within the same software. Matrox Iris GTX smart cameras are model edge IoT devices, performing data acquisition and analytics, and providing results nearest to the manufacturing
Key Features:
Thermoelectric Cooling (TEC) TEC is dynamically controlled to maintain stable sensor temp. Quickly compensates for varying ambient temperatures Creates reproducible measuring results Long exposure times without induced thermal noise.
Key Features:
