DM Optical Telecentric lens series
Non-Standard

Name: DM Optical Telecentric lens series Non-Standard
SKU: 8990
Availability: InStock

Magnification: 0.1x-0.75xWorking Distance: 110mm / 65mm

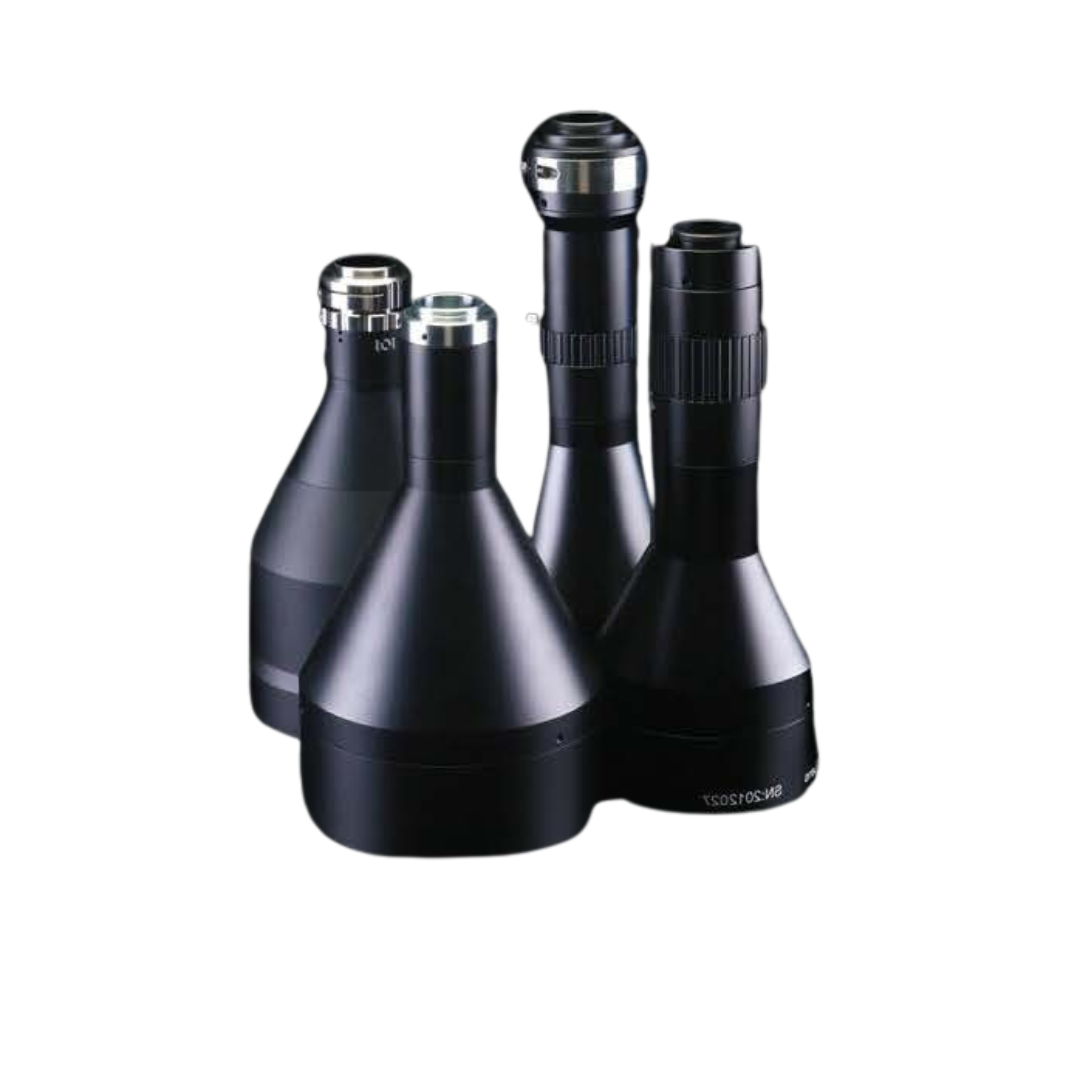

DM Optical Non-Standard Telecentric Lens

Delivers constant magnification with near-zero perspective distortion for accurate dimensional measurement regardless of object depth. Custom-configured for specialized sensor formats, working distances, or optical requirements beyond standard specifications. Ideal for unique gauging, alignment, and inspection applications where off-the-shelf solutions fall short and measurement accuracy is non-negotiable.

Features:

Supports sensor from 1/1.8″ to APS-C format
Max magnification: 0.1x-0.75x
High telecentricity, high resolution, low distortion design
Adjustable aperture, large depth of field
Superior optical performance

Specifications for Non-standard

#	Product Code	Lighting Type	Sensor Size	Max Magnification	WD	F.NO	Numerical Aperture	Telecentricity	TV Distortion	Depth of Field	Resolution	TTL	Mount	FOV (D×H×V)
1	80320250	Non-coaxial	1/1.8″	0.123x	200mm	4.6	0.013	<0.08°	<0.05%	13.682	26.5μm	190.16	C-Mount	70.7×57.3×43
2	80300840	Non-coaxial	1/1.7″	0.71x	180mm	7.6	0.047	<0.03°	<0.05%	0.678	7.2μm	137.77	C-Mount	13×10.4×7.8
3	23170140	Non-coaxial	2/3″	0.188x	167mm	6.8-40	0.0138	<0.08°	<0.014%	8.400	24.3μm	244.7	C-Mount	58.46×46.86×35.16
4	87390350	Non-coaxial	2/3″	0.2x	275mm	8.8	0.0115	<0.05°	<0.05%	9.900	25μm	198.92	C-Mount	54.8×43.8×32.8
5	80320360	Non-coaxial	2/3″	0.23x	200mm	6.8	0.017	<0.05°	<0.05%	5.784	22μm	180.7	C-Mount	47.8×38.2×28.7
6	80420540	Non-coaxial	2/3″	0.4x	300mm	8	0.024	<0.05°	<0.1°	2.250	14μm	172.1	C-Mount	27.3×20.9×17.6
7	80470540	Non-coaxial	2/3″	0.4x	350mm	11.8	0.023	<0.03°	<0.05°	3.319	15μm	193.6	C-Mount	27.3×20.9×17.6
8	23340880	Coaxial	2/3″	0.75x	220mm	10	0.037	<0.03°	<0.02°	0.800	9.1μm	156.5	C-Mount	14.6×11.7×8.8
9	23340880-1	Non-coaxial	2/3″	0.75x	220mm	10	0.037	<0.03°	<0.02°	0.800	9.1μm	154.3	C-Mount	14.6×11.7×8.8
10	87440240	Non-coaxial	1.1″	0.1x	320mm	4.4-22	0.011	<0.05°	<0.05%	19.800	24μm	423	C-Mount	176×141.8×103.7
11	87390340	Non-coaxial	1.1″	0.2x	275mm	8.8	0.0115	<0.06°	<0.05°	9.900	25μm	198.92	C-Mount	88×70.8×50.8
12	23170400	Non-coaxial	1″	0.275x	260mm	6.8-40	0.022	<0.05°	<0.1°	4.046	15.25μm	185	C-Mount	58.04×46.43×34.82
13	23170400-1	Coaxial	1″	0.275x	260mm	6.8-40	0.022	<0.05°	<0.1°	4.046	15.25μm	185.7	C-Mount	58.04×46.43×34.82
14	23270440	Coaxial	1.1″	0.31x	150mm	8.0-22	0.02	<0.05°	<0.03°	3.746	16.12μm	247.2	C-Mount	57.2×45.7×33.5
15	23270440-1	Non-coaxial	1.1″	0.31x	150mm	6.0-22	0.023	<0.05°	<0.03°	2.810	16.12μm	242.68	C-Mount	57.2×45.7×33.5
16	87320470	Non-coaxial	1.1″	0.345x	200mm	8.2	0.021	<0.07°	<0.05%	3.100	15μm	194.4	C-Mount	50.8×41.1×30
17	23170160	Non-coaxial	1″	0.367x	184.4mm	5.9	0.0167	<0.08°	<0.1°	1.971	20.09μm	244.8	C-Mount	43.6×34.9×26.7
18	23170160-1	Non-coaxial	1″	0.367x	184.4mm	2.8	0.0035	<0.08°	<0.1°	0.935	95.86μm	244.8	C-Mount	43.6×34.9×26.7
19	23270500	Coaxial	1.1″	0.37x	150mm	5.6-22	0.027	<0.05°	<0.05°	1.841	15.1μm	251.6	C-Mount	48×38×28.6
20	23270500-1	Non-coaxial	1.1″	0.37x	150mm	5.6-22	0.027	<0.05°	<0.05°	1.841	15.1μm	245.6	C-Mount	47.4×38.2×28
21	87470550	Non-coaxial	1.1″	0.421x	355mm	6.0-40	0.035	<0.05°	<0.05%	1.523	12μm	219.1	C-Mount	43.2×30.4×30.4
22	87240640-1	Non-coaxial	1.1″	0.5x	124mm	7.4-22	0.034	/	<0.05%	1.332	7μm	754	C-Mount	35.2×28.3×20.7
23	23360160	Non-coaxial	φ28.2	0.367x	240mm	6.0-40	0.03	<0.03°	<\|-0.062%\|	2.005	11.18μm	235	C-Mount	76.9×61.52×46.14
24	23340500	Non-coaxial	φ29	0.37x	220mm	8.0-C	0.023	<0.1°	<0.03%	2.630	15μm	229.8	M42×P1(12)	77×61.6×46.2
25	23330180	Non-coaxial	φ28.7	0.42x	210mm	6.0-40	0.035	<0.05°	<0.05%	1.531	9.59μm	235	M42×P1(11.48)	67.14×53.57×40.23
26	23340590	Non-coaxial	φ30	0.46x	220mm	8.0-C	0.028	<0.1°	<0.03%	1.701	12μm	219.6	M42×P1(11.48)	61.9×49.5×37.1
27	23340180	Non-coaxial	φ33	0.55x	220mm	6.0-40	0.045	<0.05°	<0.08%	0.893	7.5μm	253.8	M42×P1(11.48)	59.2×40.9×30.6
28	23340680	Non-coaxial	φ29	0.55x	220mm	6.8-22	0.04	<0.05°	<0.05%	1.012	8.5μm	229	M42×P1(11.48)	51.8×41.4×31
29	23340200	Non-coaxial	φ28.5	0.6875x	220mm	6.0-40	0.058	<0.05°	<0.02%	0.571	7μm	256	M42×P1(12)	41.4×33.1×24.8
30	23270200	Non-coaxial	φ33	0.73x	150mm	6.8-22	0.053	<0.05°	<0.05%	0.574	8μm
