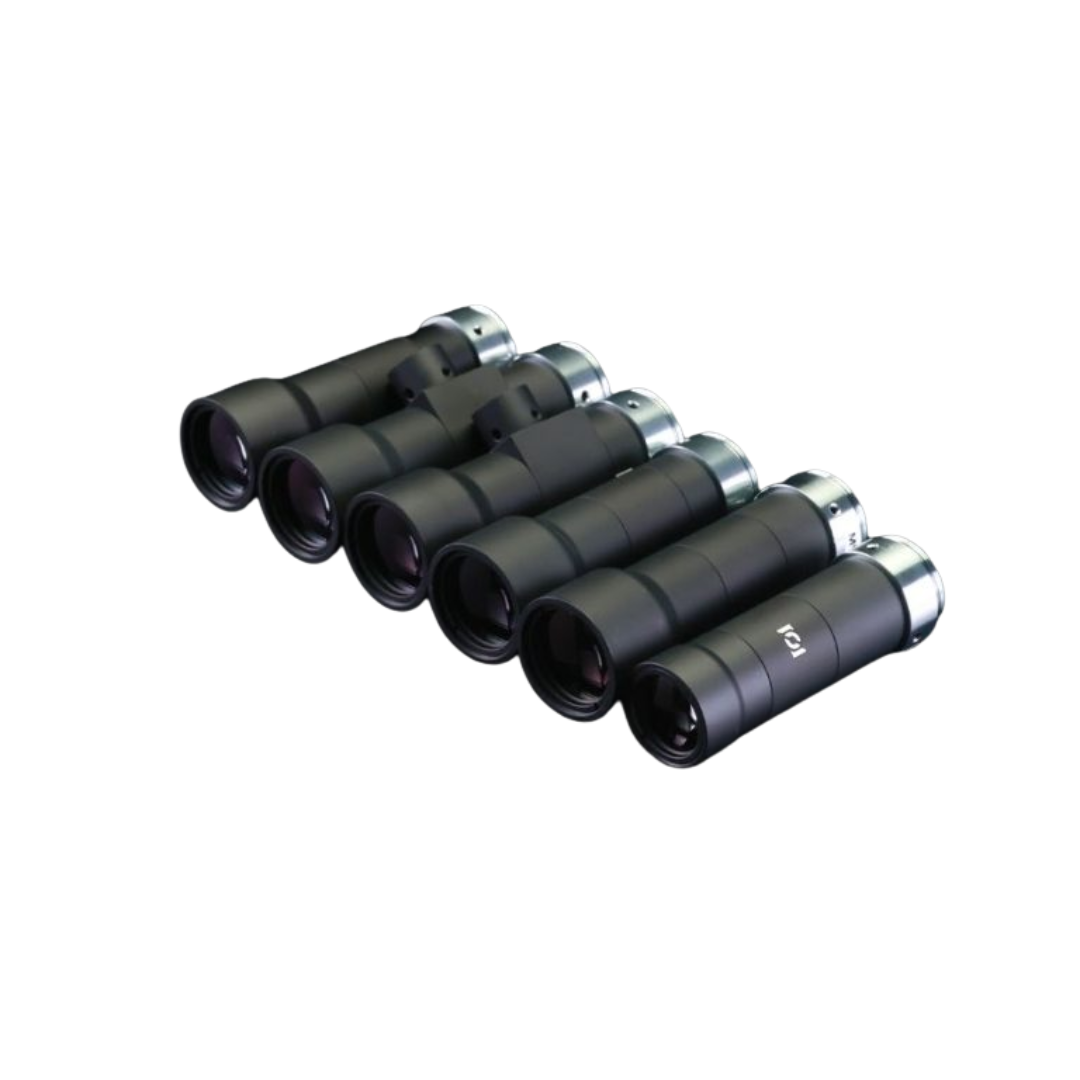

DM Optical 65mm 2/3″ Standard Telecentric Lens
Delivers constant magnification with near-zero perspective distortion for accurate dimensional measurement regardless of object depth. Optimized for 2/3″ sensors, the 65mm focal length offers generous working distance for easy lighting and mechanical integration. Ideal for gauging, alignment, and defect detection where measurement accuracy and repeatability are critical.
Features:
| # | Product Code | Lighting Type | Sensor Size | Max Magnification | WD | F.NO | Numerical Aperture | Telecentricity | TV Distortion | Depth of Field | Resolution | TTL | Mount | 2/3″ FOV (D×H×V) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 80770340 | Coaxial | 2/3″ | 0.2x | 65mm | 6 | 0.022 | ﹤0.15° | ﹤0.1% | 6.75 | 22.37μ | 140.81 | C-Mount | 55×44×33 |
| 2 | 80770340-1 | Non-coaxial | 2/3″ | 0.2x | 65mm | 6 | 0.022 | ﹤0.15° | ﹤0.05% | 6.75 | 22.37μ | 137.64 | C-Mount | 55×44×33 |
| 3 | 80770440 | Coaxial | 2/3″ | 0.3x | 65mm | 6.7 | 0.022 | ﹤0.15° | ﹤0.05% | 3.35 | 15.25μ | 150.39 | C-Mount | 36.7×29.3×22 |
| 4 | 80770440-1 | Non-coaxial | 2/3″ | 0.3x | 65mm | 6.7 | 0.022 | ﹤0.15° | ﹤0.05% | 3.35 | 15.25μ | 147.2 | C-Mount | 36.7×29.3×22 |
| 5 | 80770640 | Coaxial | 2/3″ | 0.5x | 65mm | 9.5 | 0.026 | ﹤0.1° | ﹤0.05% | 1.710 | 12.9μ | 137.46 | C-Mount | 22×17.6×13.2 |
| 6 | 80770640-1 | Non-coaxial | 2/3″ | 0.5x | 65mm | 9.5 | 0.026 | ﹤0.1° | ﹤0.05% | 1.710 | 12.9μ | 134.51 | C-Mount | 22×17.6×13.2 |
| 7 | 80770880 | Coaxial | 2/3″ | 0.75x | 65mm | 9.5 | 0.04 | ﹤0.1° | ﹤0.1% | 0.760 | 8.39μ | 105.1 | C-Mount | 14.6×11.7×8.8 |
| 8 | 80770880-1 | Non-coaxial | 2/3″ | 0.75x | 65mm | 9.5 | 0.04 | ﹤0.1° | ﹤0.1% | 0.760 | 8.39μ | 102.15 | C-Mount | 14.6×11.7×8.8 |
| 9 | 80770940 | Coaxial | 2/3″ | 0.8x | 65mm | 9.5 | 0.04 | ﹤0.1° | ﹤0.05% | 0.668 | 8.39μ | 109.91 | C-Mount | 13.7×11×8.2 |
| 10 | 80770940-1 | Non-coaxial | 2/3″ | 0.8x | 65mm | 9.5 | 0.04 | ﹤0.1° | ﹤0.05% | 0.668 | 8.39μ | 106.96 | C-Mount | 13.7×11×8.2 |
| 11 | 80771140 | Coaxial | 2/3″ | 1x | 65mm | 11 | 0.045 | ﹤0.1° | ﹤0.1% | 0.495 | 7.46μ | 111.09 | C-Mount | 11×8.8×6.6 |
| 12 | 80771140-1 | Non-coaxial | 2/3″ | 1x | 65mm | 11 | 0.045 | ﹤0.1° | ﹤0.1% | 0.495 | 7.46μ | 108.14 | C-Mount | 11×8.8×6.6 |
| 13 | 80771640 | Coaxial | 2/3″ | 1.5x | 65mm | 12 | 0.063 | ﹤0.1° | ﹤0.1% | 0.240 | 5.33μ | 90.3 | C-Mount | 7.3×5.8×4.4 |
| 14 | 80771640-1 | Non-coaxial | 2/3″ | 1.5x | 65mm | 12 | 0.063 | ﹤0.1° | ﹤0.1% | 0.240 | 5.33μ | 87.35 | C-Mount | 7.3×5.8×4.4 |
| 15 | 80772140 | Coaxial | 2/3″ | 2x | 65mm | 13.5 | 0.074 | ﹤0.05° | ﹤0.1% | 0.152 | 4.53μ | 97.52 | C-Mount | 5.5×4.4×3.3 |
| 16 | 80772140-1 | Non-coaxial | 2/3″ | 2x | 65mm | 13.5 | 0.074 | ﹤0.05° | ﹤0.1% | 0.152 | 4.53μ | 94.57 | C-Mount | 5.5×4.4×3.3 |
| 17 | 80773140 | Coaxial | 2/3″ | 3x | 65mm | 16 | 0.092 | ﹤0.1° | ﹤0.1% | 0.080 | 3.65μ | 112.01 | C-Mount | 3.7×2.9×2.2 |
| 18 | 80773140-1 | Non-coaxial | 2/3″ | 3x | 65mm | 16 | 0.092 | ﹤0.1° | ﹤0.1% | 0.080 | 3.65μ | 109.06 | C-Mount | 3.7×2.9×2.2 |
| 19 | 80774140 | Coaxial | 2/3″ | 4x | 65mm | 18 | 0.112 | ﹤0.05° | ﹤0.03% | 0.051 | 3μ | 122.12 | C-Mount | 2.75×2.5×1.65 |
| 20 | 80774140-1 | Non-coaxial | 2/3″ | 4x | 65mm | 18 | 0.112 | ﹤0.05° | ﹤0.03% | 0.051 | 3μ | 118.12 | C-Mount | 2.75×2.5×1.65 |
| 21 | 80776140 | Coaxial | 2/3″ | 6x | 65mm | 27 | 0.112 | ﹤0.05° | ﹤0.05% | 0.03 | 3μ | 146.2 | C-Mount | 1.8×1.5×1.1 |
| 22 | 80776140-1 | Non-coaxial | 2/3″ | 6x | 65mm | 27 | 0.112 | ﹤0.05° | ﹤0.05% | 0.03 | 3μ | 143.4 | C-Mount | 1.8×1.5×1.1 |
