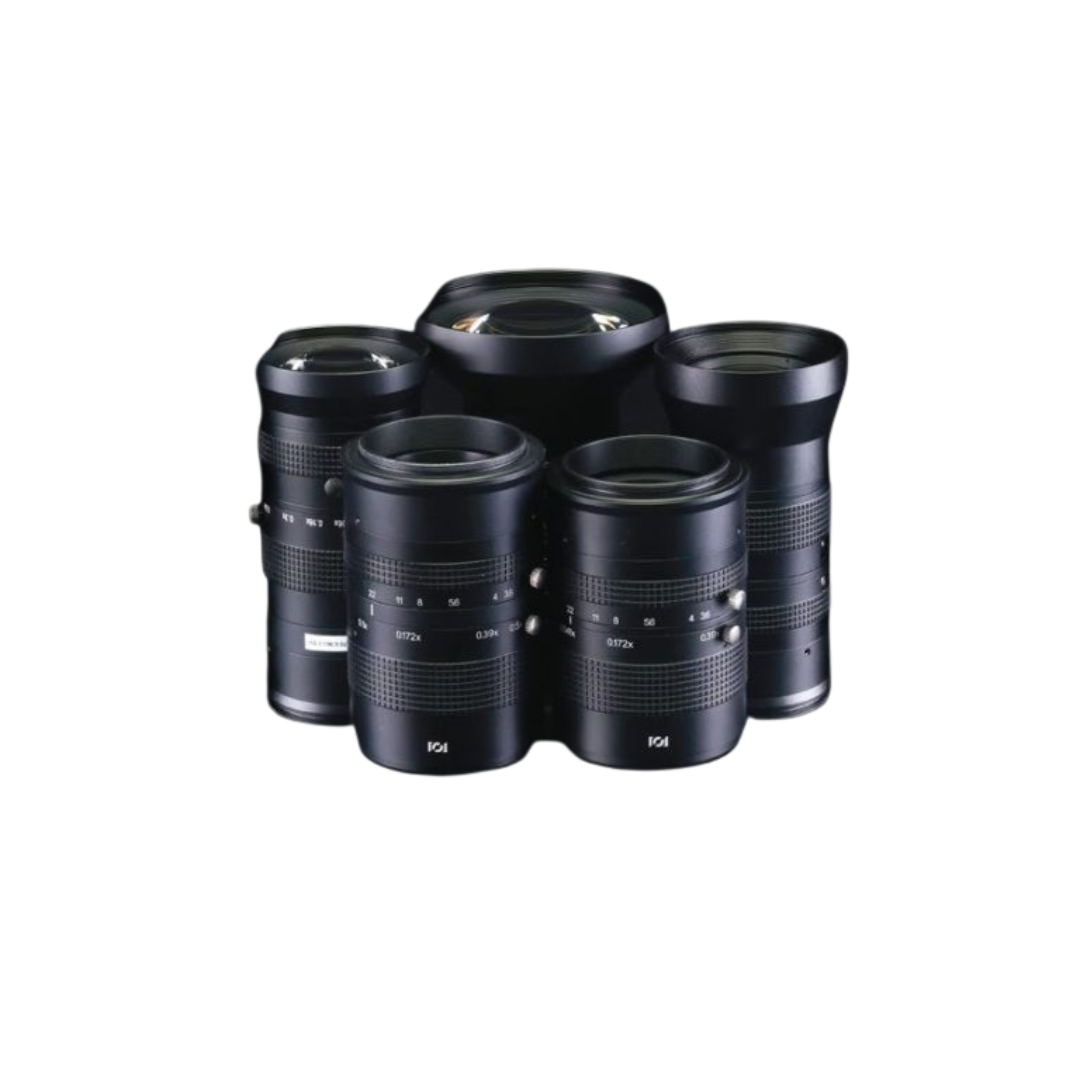

**DM Optical 8K5μ Line Scan Lens Series**
Optimized for 8K line scan cameras with 5μm pixels, this compact lens series delivers 0.02×–0.33× magnification with V-mount standard and adaptable camera mounts. Low distortion and uniform illumination across the scan line ensure precise edge definition for high-speed printing, packaging, and surface inspection applications.
| # | Product Code | Focal Length | Max Image Circle | F.NO | TV Distortion | Magnification Range | Standard Magnification | WD | O/I | Flange Distance | Mount | Filter Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 36370140 | 25mm | φ46 | 4.0-22 | <0.2% | 0.001x-0.2x | 0.1x | 200 | 371.09 | 12 | M58×P0.75 | M95×P1.0 |
| 2 | 36470140 | 35mm | φ42 | 4.0-22 | <0.7% | 0.001x-0.2x | 0.067x | 500 | 642.56 | 12 | M58×P0.75 | M67×P0.75 |
| 3 | 36620140 | 50mm | φ46 | 3.6-22 | <0.2% | 0.02x-0.5x | 0.16x | 300 | 444 | 12 | M58×P0.75 | M62×P0.75 |
| 4 | 36920140 | 80mm | φ46 | 3.6-22 | <0.2% | 0.041x-0.39x | 0.172x | 500 | 630.6 | 12 | M58×P0.75 | M62×P0.75 |
| 5 | 36920140-1 | 80mm | φ46 | 3.6-22 | <0.2% | 0.1x-0.5x | 0.172x | 500 | 630.6 | 11.48 | M58×P0.75 | M62×P0.75 |
