DM Optical FA Lens series
Anti-vibration

Focal Length: 4-75mmResolution: 5,-25MPCompatibility: 1/1.7″, 2/3″ & 1.1″ sensors

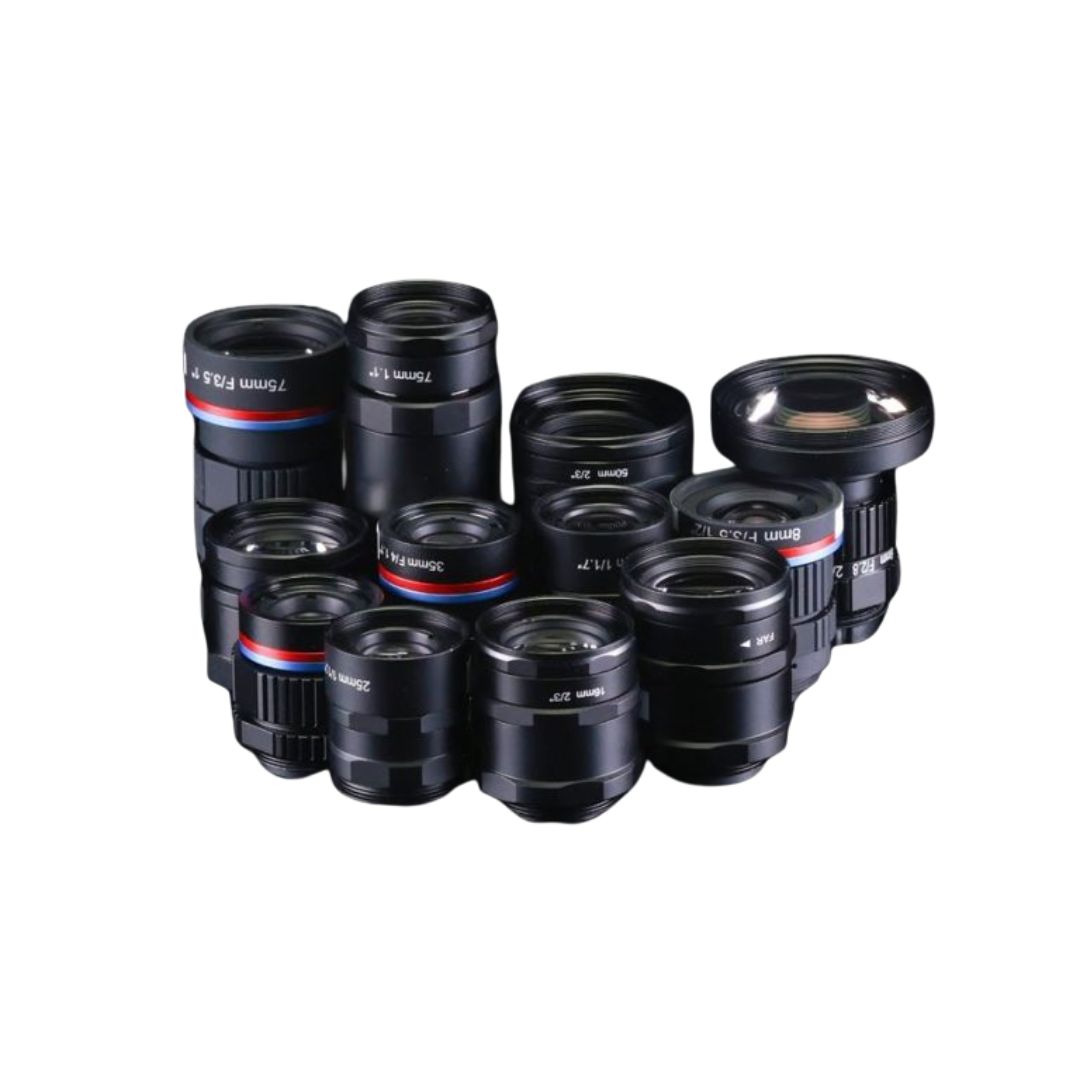

DM Optical Anti-Vibration FA Lens Series
Built for high-vibration industrial environments, the DM Optical Anti-Vibration FA Lens Series delivers stable, high-fidelity imaging across 4–75mm focal lengths. Supporting 1/1.7″ to 1.1″ sensors, these ruggedized lenses maintain optical alignment and focus precision under strong mechanical stress, eliminating recalibration needs on robotic lines, mobile platforms, and heavy manufacturing floors. Ideal for machine vision applications where durability and consistent image quality are critical.

Specifications for Anti-vibration Lens

#Product CodeFocal LengthSensor SizeF.NODistortionMOD (WD Range)Max MagnificationFilter SizeMount1.1″ Field of View Angle
1492002308mm1/2″3.5≤ 0.5%0.1m0.0745xM30.5×P0.5C-Mount44.3°×30.3°
24928026016mm1/1.7″2.1<0.2%400-1000mm/M25.5×P0.5C-Mount25.8°×19.6°
34937026025mm1/1.7″2.1<0.1%400-1000mm/M25.5×P0.5C-Mount16.1°×12.2°
4491601404mm2/3″2.8≤ 3%0.03m0.077x/C-Mount92.3°×82.7°
5491801406mm2/3″2.8≤ 4%0.05m0.0957xM45×P0.75C-Mount69.12°×59.92°
64924015012mm2/3″3.5≤-0.80%0.15m0.077xM30.5×P0.5C-Mount39°×30.3°
74928015016mm2/3″1.4/2.0/2.8/4/5.6/8/16<0.1%0.1m0.145xM28.5×P0.5C-Mount30.3°×23°
84937015025mm2/3″1.4/2.0/2.8/4/5.6/8/16<0.2%0.1m0.253xM30.5×P0.5C-Mount20°×15°
94947015035mm2/3″1.4/2.0/2.8/4/5.6/8/16<-0.8%0.15m0.213xM35.5×P0.5C-Mount13.9°×10.4°
104962015050mm2/3″1.4/2.0/2.8/4/5.6/8/16<-0.8%0.3m0.177xM37×P0.5C-Mount10.46°×7.86°
11492002808mm1.1″1.4/2.8/4/8<5.5%0.1m0.064xM58×P0.75C-Mount84.8°×68°
124928016016mm1.1″4≤0.1%0.05m0.293xM24×P0.5C-Mount46.7°×35.9°
134937016025mm1.1″4≤0.1%200-700mm/M24×P0.5C-Mount30.8°×23.4°
144947016035mm1.1″4≤0.1%150-550mm/M24×P0.5C-Mount21.3°×16.1°
154987023075mm1″3.5≤0.2%600-700mm/M30.5×P0.5C-Mount9.3°×7°
1673870230-175mm1.1″5.6≤-0.05%240-400mm/M27×P0.5C-Mount7.48°×5.63°
Select options below to view price
Clear
Product price
Additional options total:
Order total:
Add to Proposal
Related Products
Schneider Compact<br>Turquoise
Schneider Compact
Turquoise

Turquoise’s Key Features:

  • 1″ (16 mm) max. sensor size
  • C-Mount lens
  • 3 focal lengths: 10 mm, 16 mm and 70 mm
  • Initial aperture: F1.8 – F2.2
  • Ruggedized and motorized iris available
Focal Length10-70mm
Max Sensor1"
ApertureF1.8-2.2
Schneider Compact<br>Tourmaline
Schneider Compact
Tourmaline

Tourmaline’s Key Features:

• 1.3″ (24 mm) max. sensor size
• Resolution down to 2.4µ pixel size
• Low chief ray angle suits all SONY Pregius™ generations
• C-Mount lens and TFL-Mount lens available
• 8 focal lengths: 16 mm – 50 mm
• Initial aperture: F2 – F2.8
• Ruggedized and motorized iris for selected focal lengths
Focal Length16-50mm
Max Sensor1.3"
ApertureF2.0-2.8
Schneider Large Format<br>Thulite
Schneider Large Format
Thulite

Thulite’s Key Features:

  • 2″ (32 mm) max. Sensor size
  • 3 focal lengths: 35 mm, 50 mm and 75 mm
  • Very high resolution down to 2.4µ pixel size
  • Initial aperture: F2.8
  • M42 lens and TFL-Mount lens available
  • Covering a wide working distance range



Focal Length35-75mm
Image Circle32mm
MountM42/TFL
Schneider Compact<br>Aquamarine
Schneider Compact
Aquamarine
Aquamarine’s Key Features:
• 1.3″ (24 mm) max. sensor size
• C-Mount lens and TFL-Mount lens available
• 2 focal lengths: 28 mm and 35 mm
• Initial aperture: F2
• Ruggedized version for 28 mm lens
• Motorized iris available for 28 mm lens
Focal Length28-35mm
Max Sensor1.3"
ApertureF2.0
