DM Optical FA Lens Series — 1″ 5MP

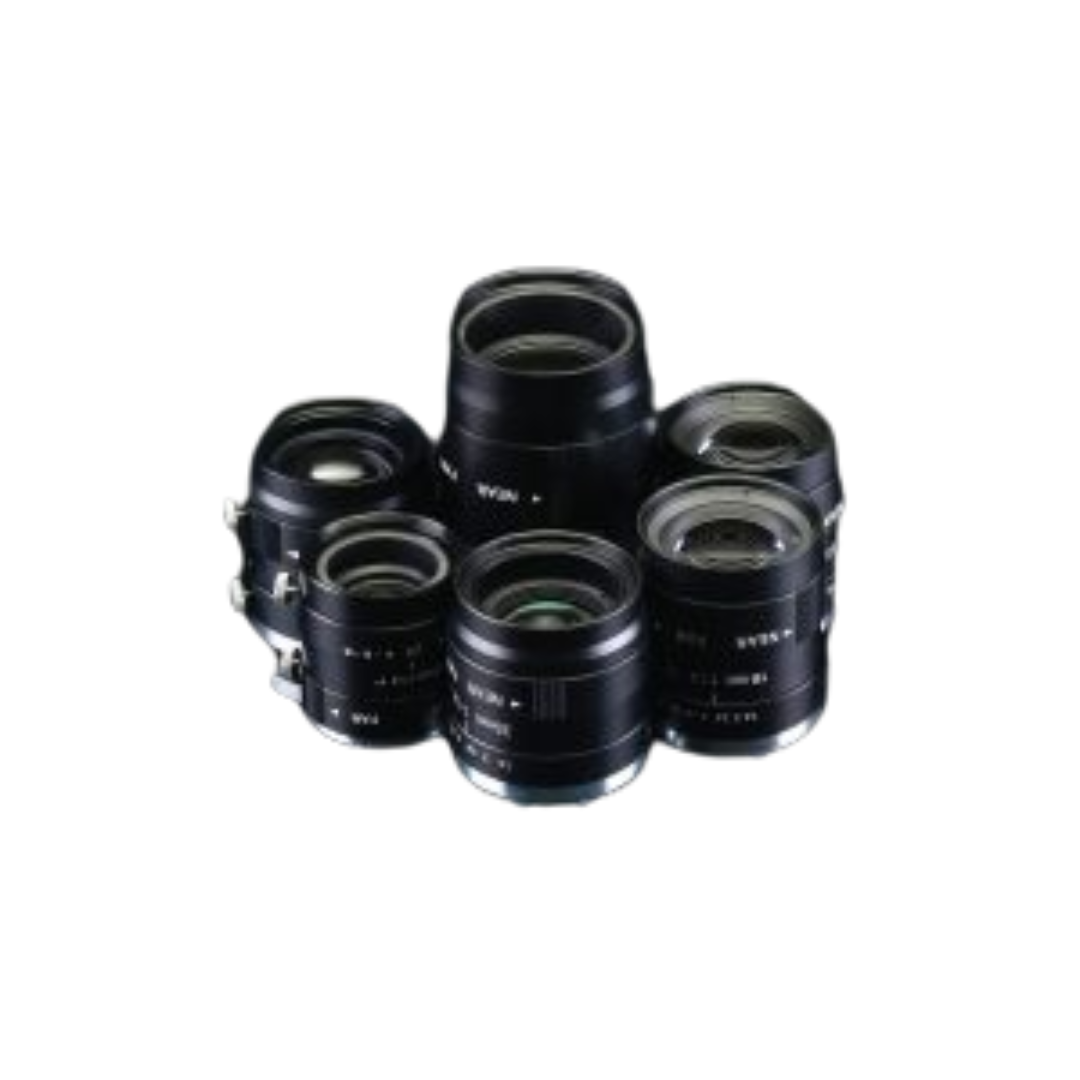

The DM Optical 1″ 5MP FA Lens Series is a C-mount fixed focal length lens range designed for factory automation and industrial machine vision applications. Available in focal lengths from 12.5mm to 75mm, the series is optimized for cameras with 3.45μm pixel size and up to 5MP resolution, with compatibility with sensors such as the Sony IMX264 and IMX265.
The series features a wide maximum aperture starting at F1.4 (F1.8 for the 75mm model), allowing for excellent light gathering in challenging or low-light inspection environments. From 16mm onwards, distortion is kept to <0.2% or better, with most models achieving <0.1% suitable for demanding dimensional measurement and quality control tasks. The consistent C-mount interface and shared filter sizes across most models simplify integration into existing machine vision systems.
Key Features:
| # | Product Code | Focal Length | Sensor Size | F.NO | Distortion | MOD | Max Magnification | Filter Size | Mount | 1″ FOV Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 15240180 | 12.5mm | 1″ | 1.4–16 | <1.8% | 0.1m | 0.0106x | M46×P0.75 | C-Mount | 54.5°×42° |
| 2 | 15280180 | 16mm | 1″ | 1.4–16 | <0.2% | 0.1m | 0.146x | M46×P0.75 | C-Mount | 42.4°×32.4° |
| 3 | 15370180 | 25mm | 1″ | 1.4–16 | <0.1% | 0.1m | 0.27x | M40.5×P0.5 | C-Mount | 28.7°×22.06° |
| 4 | 15470180 | 35mm | 1″ | 1.4–16 | <0.1% | 0.15m | 0.244x | M46×P0.75 | C-Mount | 19.28°×14.32° |
| 5 | 15620180 | 50mm | 1″ | 1.4–16 | <0.1% | 0.3m | 0.163x | M46×P0.75 | C-Mount | 13.86°×10.4° |
| 6 | 15870180 | 75mm | 1″ | 1.8–16 | <0.1% | 0.8m | 0.115x | M55×P0.75 | C-Mount | 9.8°×7.4° |
Cuprite’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consits of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
• f/2.8 aperture
• Precise manual focusing
• Robust full-metal construction
• Continuous aperture setting or click stop
• For industrial cameras up to sensor sizes of
24×36 mm or 41mm line sensors
• Wide angle lens with highest opticus and aperture
settings even in rough situations
• High contrast over the entire image field
Thulite’s Key Features:
Turquoise’s Key Features:
