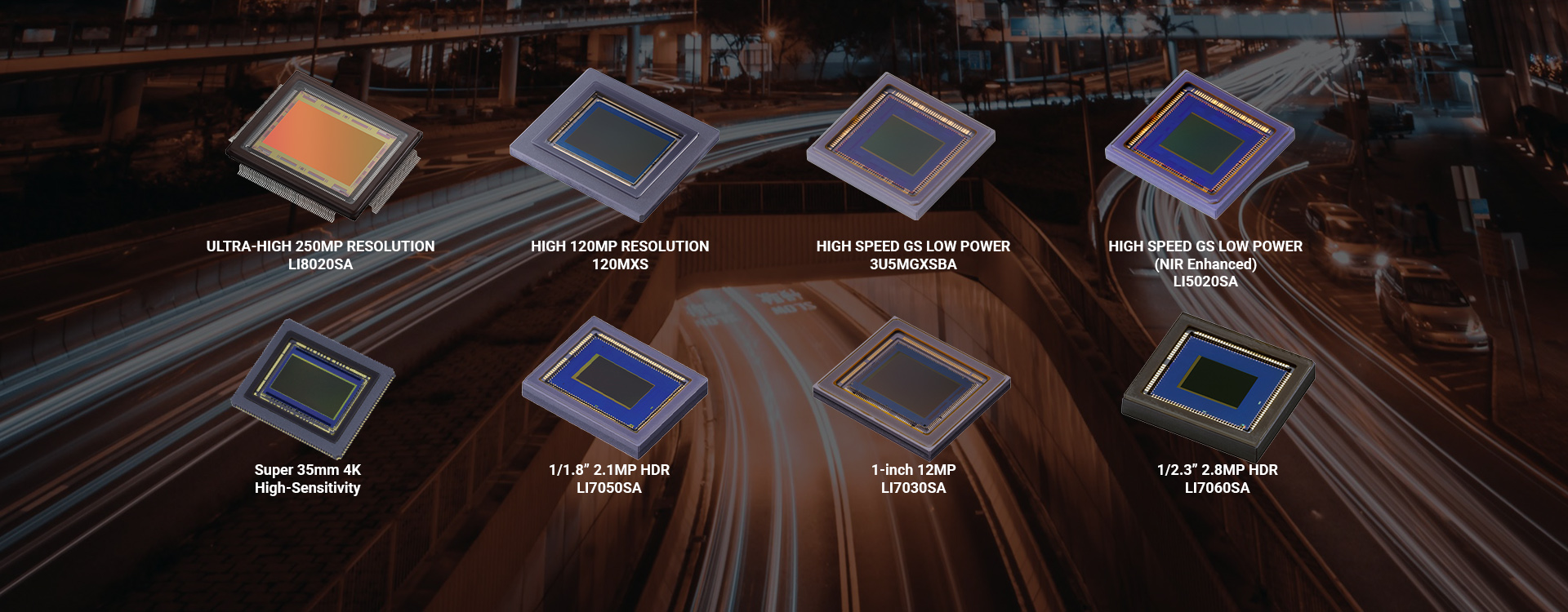

Canon has been manufacturing CMOS sensors since 2000 for exclusive use in Canon products. Building on that expertise and success, Canon is now committed to starting external sales to collaborate with various industries. Canon CMOS sensors feature unique designs to meet the needs of demanding vision applications.

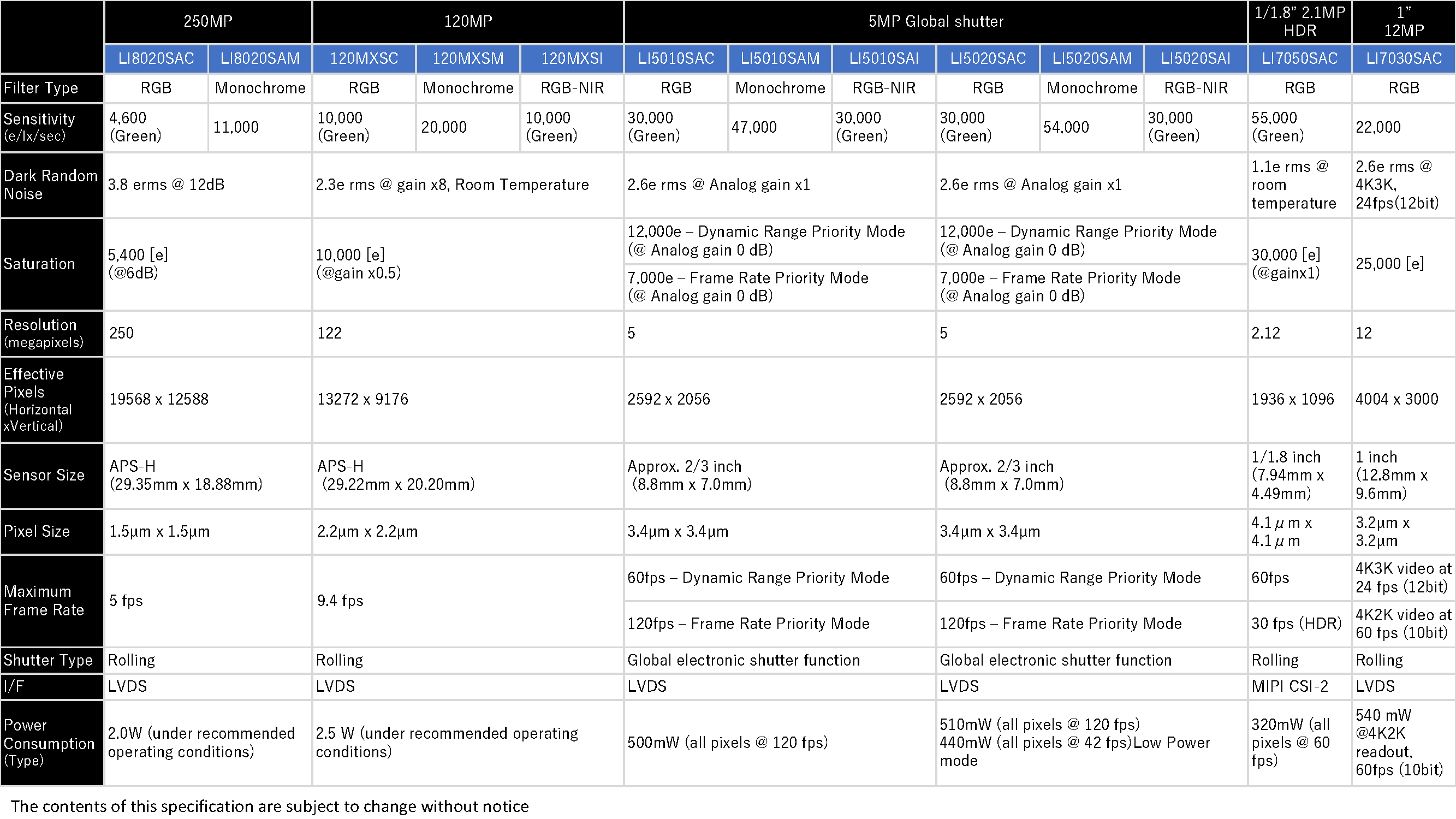

| 250MP | 120MP | 5MP Global shutter | 1/1.8” 2.1MP HDR | 1” 12MP | |||||||||
| LI8020SAC | LI8020SAM | 120MXSC | 120MXSM | 120MXSI | LI5010SAC | LI5010SAM | LI5010SAI | LI5020SAC | LI5020SAM | LI5020SAI | LI7050SAC | LI7030SAC | |
| Filter Type | RGB | Monochrome | RGB | Monochrome | RGB-NIR | RGB | Monochrome | RGB-NIR | RGB | Monochrome | RGB-NIR | RGB | RGB |
| Sensitivity (e/lx/sec) | 4,600 (Green) | 11,000 | 10,000 (Green) | 20,000 | 10,000 (Green) | 30,000 (Green) | 47,000 | 30,000 (Green) | 30,000 (Green) | 54,000 | 30,000 (Green) | 55,000 (Green) | 22,000 |
| Dark Random Noise | 3.8 erms @ 12dB | 2.3e rms @ gain x8, Room Temperature | 2.6e rms @ Analog gain x1 | 2.6e rms @ Analog gain x1 | 1.1e rms @ room temperature | 2.6e rms @ 4K3K, 24fps(12bit) | |||||||
| Saturation | 5,400 [e] (@6dB) | 10,000 [e] (@gain x0.5) | 12,000e – Dynamic Range Priority Mode (@ Analog gain 0 dB) | 12,000e – Dynamic Range Priority Mode (@ Analog gain 0 dB) | 30,000 [e] (@gainx1) | 25,000 [e] | |||||||
| 7,000e – Frame Rate Priority Mode (@ Analog gain 0 dB) | 7,000e – Frame Rate Priority Mode (@ Analog gain 0 dB) | ||||||||||||
| Resolution (megapixels) | 250 | 122 | 5 | 5 | 2.12 | 12 | |||||||
| Effective Pixels (Horizontal x Vertical) | 19568 x 12588 | 13272 x 9176 | 2592 x 2056 | 2592 x 2056 | 1936 x 1096 | 4004 x 3000 | |||||||
| Sensor Size | APS-H (29.35mm x 18.88mm) | APS-H (29.22mm x 20.20mm) | Approx. 2/3 inch (8.8mm x 7.0mm) | Approx. 2/3 inch (8.8mm x 7.0mm) | 1/1.8 inch (7.94mm x 4.49mm) | 1 inch (12.8mm x 9.6mm) | |||||||
| Pixel Size | 1.5µm x 1.5µm | 2.2µm x 2.2µm | 3.4µm x 3.4µm | 3.4µm x 3.4µm | 4.1μm x 4.1μm | 3.2µm x 3.2µm | |||||||
| Maximum Frame Rate | 5 fps | 9.4 fps | 60fps – Dynamic Range Priority Mode | 60fps – Dynamic Range Priority Mode | 60fps | 4K3K video at 24 fps (12bit) | |||||||
| 120fps – Frame Rate Priority Mode | 120fps – Frame Rate Priority Mode | 30 fps (HDR) | 4K2K video at 60 fps (10bit) | ||||||||||
| Shutter Type | Rolling | Rolling | Global electronic shutter function | Global electronic shutter function | Rolling | Rolling | |||||||
| I/F | LVDS | LVDS | LVDS | LVDS | MIPI CSI-2 | LVDS | |||||||
| Power Consumption (Type) | 2.0W (under recommended operating conditions) | 2.5 W (under recommended operating conditions) | 500mW (all pixels @ 120 fps) | 510mW (all pixels @ 120 fps) 440mW (all pixels @ 42 fps) Low Power mode | 320mW (all pixels @ 60 fps) | 540 mW @4K2K readout, 60fps (10bit) | |||||||
