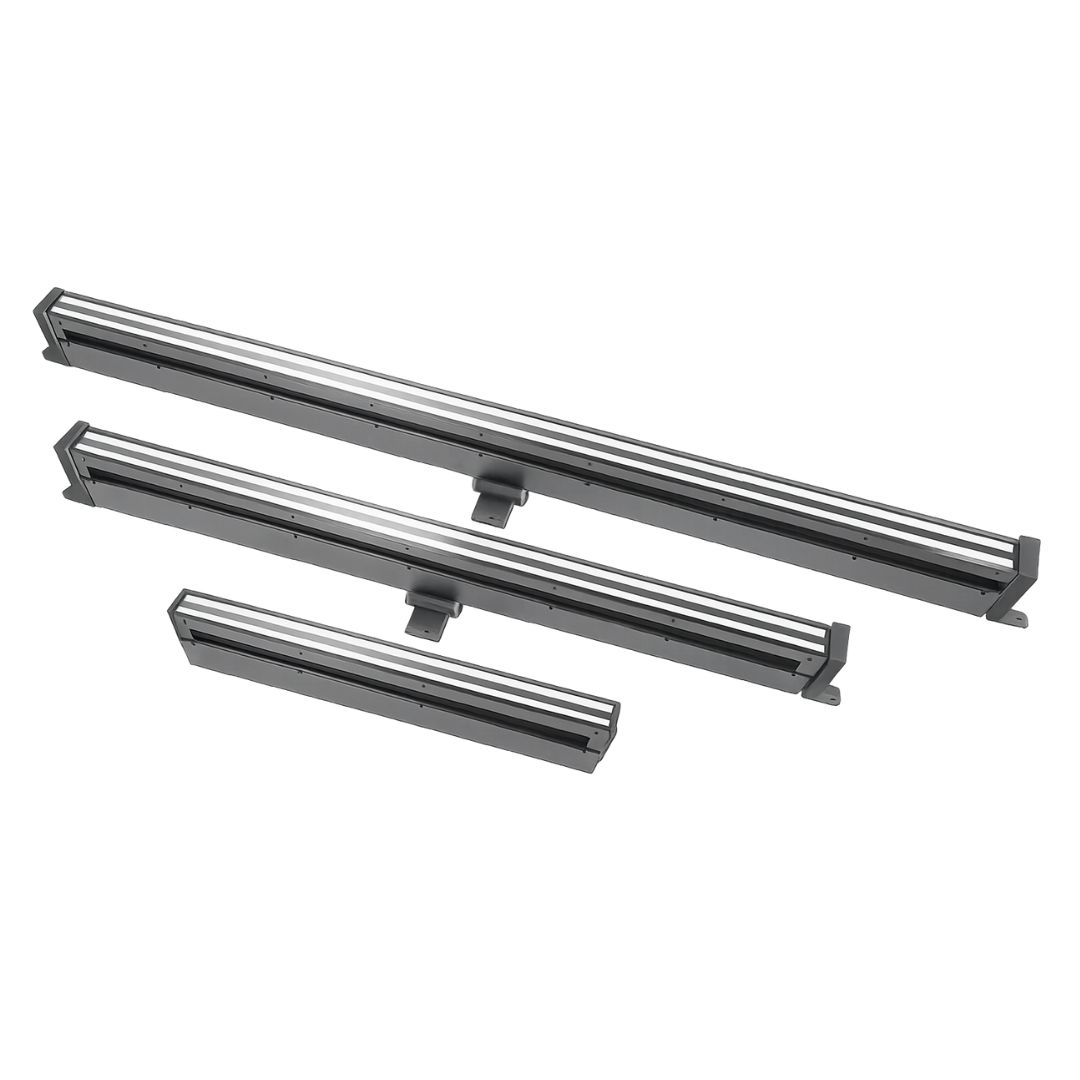

The Canon IDCCFC Series (IDCCFC-659, IDCCFC-943, IDCCFC-1318) is a CIS type line scan camera by Canon Components, Inc., designed as the ultimate solution for glossy surface inspection. Featuring built-in custom designed diffuse illumination, it delivers reliable and consistent imaging on reflective and high-sheen materials where conventional cameras fall short.
Available in scanning widths up to 1318mm, the series supports resolutions of 600, 300, 200, and 150dpi in both color and monochrome modes, with scan speeds reaching up to 648MPM in monochrome fast mode. Operating on a single 24V power supply and Camera Link® compliant, it integrates easily into existing machine vision systems.
Ideal for a wide range of demanding inspection applications including metal, textile, film, web, wafer, measurement, and print.
| Item | IDCCFC-659 | IDCCFC-943 | IDCCFC-1318 | Remarks |
|---|---|---|---|---|
| Scanning Width | 666.8mm | 942.9mm | 1327.3mm | |
| Sensor Elements (Pixels) | 15,587 × 3 (RGB) 15,587 (monochrome) | 22,063 × 3 (RGB) 22,063 (monochrome) | 31,175 × 3 (RGB) 31,175 (monochrome) | 600dpi |
| Resolution | 600 / 300 / 200 / 150dpi | Mode selectable | ||
| Pixel CLK Frequency | 20MHz | |||
| Pixel Data | RGB 8bit / monochrome 8bit | |||
| Scanning Speed (RGB) | 600dpi: 71us/line, 14kHz, 36MPM 300dpi: 38us/line, 26kHz, 72MPM 200dpi: 38us/line, 26kHz, 138MPM 150dpi: 38us/line, 26kHz, 264MPM | 600dpi: 71us/line, 14kHz, 36MPM 300dpi: 38us/line, 26kHz, 72MPM 200dpi: 38us/line, 26kHz, 138MPM 150dpi: 38us/line, 26kHz, 264MPM | 600dpi: 71us/line, 14kHz, 36MPM 300dpi: 38us/line, 26kHz, 72MPM 200dpi: 38us/line, 26kHz, 138MPM 150dpi: 38us/line, 26kHz, 264MPM | Color / RGB |
| Scanning Speed (Monochrome) | 300dpi: 16us/line, G36kHz, 326MPM 200dpi: 16us/line, G36kHz, 488MPM 150dpi: 12us/line, G83kHz, 648MPM | 300dpi: 16us/line, G36kHz, 326MPM 200dpi: 16us/line, G36kHz, 488MPM 150dpi: 12us/line, G83kHz, 648MPM | 300dpi: 16us/line, G36kHz, 326MPM 200dpi: 16us/line, G36kHz, 488MPM 150dpi: 12us/line, G83kHz, 648MPM | Mono / Basic & Fast Mode |
| Interface | Camera Link® Compliant Base / Medium | |||
| Number of Camera Link® | 2pcs / 4pcs | 3pcs / 6pcs | 4pcs / 8pcs | |
| Output Data CLK | 80MHz | |||
| Optical System | Rod Lens Array | |||
| Working Distance | 28mm | |||
| Luminous Source | White LED | |||
| Power Supply | LED: 24V | |||
| Current Consumption | Sensor: 1.0A LED: 2.0A | Sensor: 1.5A LED: 2.0A | Sensor: 2.0A LED: 2.0A | Sensor: LED ON during scanning. LED: Effective value. Excl. inrush current |
| Outline Dimension | W682 × H116 × D164mm (*1) | W1102 × H116 × D164mm (*1) | W1431 × H116 × D246mm (*2) | *1: Excl. protrusion *2: Incl. attachment |
| Weight | — | — | 4.6kg | |
Full laser line with segment processing
The unique correlation processing focus technology enables auto focus where other laser or image auto focus systems fail
Extreme robust focus results by interactive selection of best focus parameters
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor , piezo , voice-coil or servo drives
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
Canon has been manufacturing CMOS sensors since 2000 for exclusive use in Canon products. Building on that expertise and success, Canon is now committed to starting external sales to collaborate with various industries. Canon CMOS sensors feature unique designs to meet the needs of demanding vision applications.
The Canon IDCCFC Series (IDCCFC-165C, IDCCFC-330C, IDCCFC-476C) is a CIS type line scan camera developed by Canon Components, Inc. for industrial surface inspection applications. Designed as a slim, compact all-in-one unit, it integrates optics, illumination, and imaging into a single housing, eliminating the need for external lighting setups.
Available in three scanning widths, the series supports resolutions of 600, 300, 200, and 150dpi, with both color and monochrome modes and a scan speed of up to 36m/min at 600dpi color. It communicates via Camera Link® and is suited for demanding machine vision tasks including print inspection, film, measurement, and web inspection.
Adapters available for a range of different microscopes
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor, piezo, voice-coil or servo drives
Unique Correlation Processing laser focus method
Full laser line with segment processing
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
