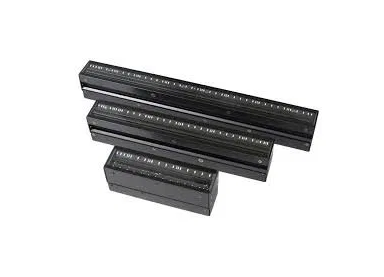

The Canon IDCCFC Series (IDCCFC-165C, IDCCFC-330C, IDCCFC-476C) is a CIS type line scan camera developed by Canon Components, Inc. for industrial surface inspection applications. Designed as a slim, compact all-in-one unit, it integrates optics, illumination, and imaging into a single housing, eliminating the need for external lighting setups.
Available in three scanning widths, the series supports resolutions of 600, 300, 200, and 150dpi, with both color and monochrome modes and a scan speed of up to 36m/min at 600dpi color. It communicates via Camera Link® and is suited for demanding machine vision tasks including print inspection, film, measurement, and web inspection.
| Item | iDCCFC-165C | iDCCFC-330C | iDCCFC-476C | Remarks |
|---|---|---|---|---|
| Scanning Width | 144.6mm | 329.3mm | 475.8mm | |
| Sensor Elements (Pixels) | 3,888 × 3 (RGB)3,888 (monochrome) | 7,776 × 3 (RGB)7,776 (monochrome) | 11,232 × 3 (RGB)11,232 (monochrome) | 600dpi |
| Resolution | 600 / 300 / 200 / 150dpi | Mode Selectable | ||
| Pixel CLK Frequency | 20MHz | |||
| Pixel Data | RGB 8bit / monochrome 8bit | |||
| Scan Speed (RGB / monochrome) | 600dpi: 71us/line, 14kHz, 36MPM 300dpi: 38us/line, 26kHz, 72MPM 200dpi: 38us/line, 26kHz, 138MPM 150dpi: 38us/line, 26kHz, 264MPM | 600dpi: 71us/line, 14kHz, 36MPM 300dpi: 38us/line, 26kHz, 72MPM 200dpi: 38us/line, 26kHz, 138MPM 150dpi: 38us/line, 26kHz, 264MPM | 600dpi: 71us/line, 14kHz, 36MPM 300dpi: 38us/line, 26kHz, 72MPM 200dpi: 38us/line, 26kHz, 138MPM 150dpi: 38us/line, 26kHz, 264MPM | Color / Mono |
| Interface | Base x 1port | Base x 2port | Base x 3port | Camera Link® Communication Standard |
| Optical Data CLK | 600MHz | |||
| Optical System | Rod Lens Array | |||
| Working Distance | 12mm | |||
| Luminous Source | White LED | |||
| Power Supply | Sensor: 5V LED: 24V | Sensor: 5V LED: 24V | ||
| Current Consumption | Sensor: 0.7A LED: 0.2A | Sensor: 1.7A LED: 0.4A | Sensor: 2.4A LED: 0.8A | Sensor: LED ON during scanning. LED: Effective value. Exclude inrush current |
| Outline Dimension | W188 × H70 × D53mm | W353 × H70 × D53mm | W499 × H70 × D53mm | Excl. protrusion |
| Weight | 0.6kg | 1.8kg | 2.5kg | |
The Canon IDCCFC Series (IDCCFC-659, IDCCFC-943, IDCCFC-1318) is a CIS type line scan camera by Canon Components, Inc., designed as the ultimate solution for glossy surface inspection. Featuring built-in custom designed diffuse illumination, it delivers reliable and consistent imaging on reflective and high-sheen materials where conventional cameras fall short.
Available in scanning widths up to 1318mm, the series supports resolutions of 600, 300, 200, and 150dpi in both color and monochrome modes, with scan speeds reaching up to 648MPM in monochrome fast mode. Operating on a single 24V power supply and Camera Link® compliant, it integrates easily into existing machine vision systems.
Ideal for a wide range of demanding inspection applications including metal, textile, film, web, wafer, measurement, and print.
