Application areas: Large-format product positioning, applications requiring high uniformity, various dimensional measurements, transmission-based presence/absence detection, etc.
Advantages

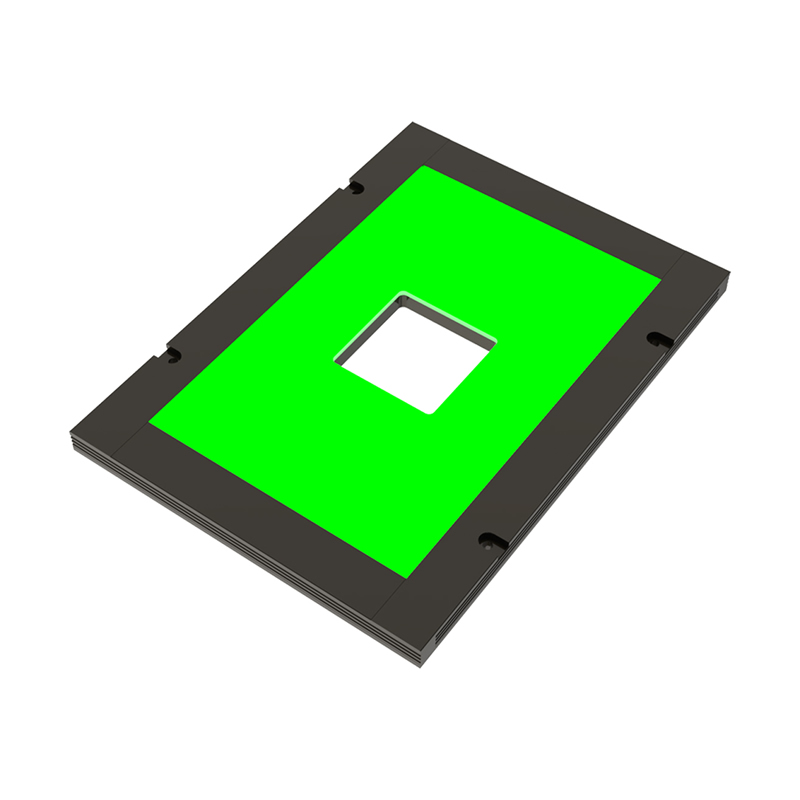

• Ultra-thin design; opening size, shape, dimensions, and placement can be customized.
• Achieve large-format uniform lighting
High-precision parallel backlight for measuring large-area product dimensions.
| model | Optics | Rated power (W) | Dimensions I×E×D (mm) | Weight (g) | |||
| color | Light-emitting length × width (mm) | Voltage (V) | red | White, blue, green | |||
| BLNHL-150x100-00 | Red, white, blue, green | 150x100 | twenty four | 7.4 | 11 | 185x135x9.5 | 390 |
| BLNHL-200x200-00 | Red, white, blue, green | 200x200 | twenty four | 11.7 | 17.5 | 235x235x9.5 | 840 |
| BLNHL-250x200-00 | Red, white, blue, green | 250x200 | twenty four | 13.4 | 20 | 285x235x9.5 | 990 |
| BLNHL-350x350-00 | Red, white, blue, green | 350x350 | twenty four | 18.8 | 28 | 385x385x9.5 | 2080 |
| BLNHL-400x300-00 | Red, white, blue, green | 400x300 | twenty four | 21.4 | 32 | 435x335x9.5 | 2070 |
| BLNHL-600x400-00 | Red, white, blue, green | 600x400 | twenty four | 36.2 | 54 | 635x435x9.5 | 4400 |
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.
The LZEW300 is a SmartVisionLinkTM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
